Juniper EX3200 Series User Manual

•
10/100/1000Base-T Gigabit Ethernet ports, some or all of which are enabled for
Power over Ethernet (PoE)
•
100Base-FX/1000Base-X SFP ports for use with fiber-optic connections
•
Uplink module ports—SFP, SFP+, or XFP ports (The uplink module is an optional
feature.)
•
LCD panel and the LCD navigation buttons
•
Chassis status LEDs
•
Network port LEDs
Figure 4 on page 10 shows the front panel of an EX4200 switch with 48 Gigabit Ethernet
ports. Figure 5 on page 10 shows the front panel of an EX4200 switch with 24 Gigabit
Ethernet ports. Figure 6 on page 10 shows the front panel of an EX4200-24F switch with
24 SFP ports for use with fiber-optic connectors.

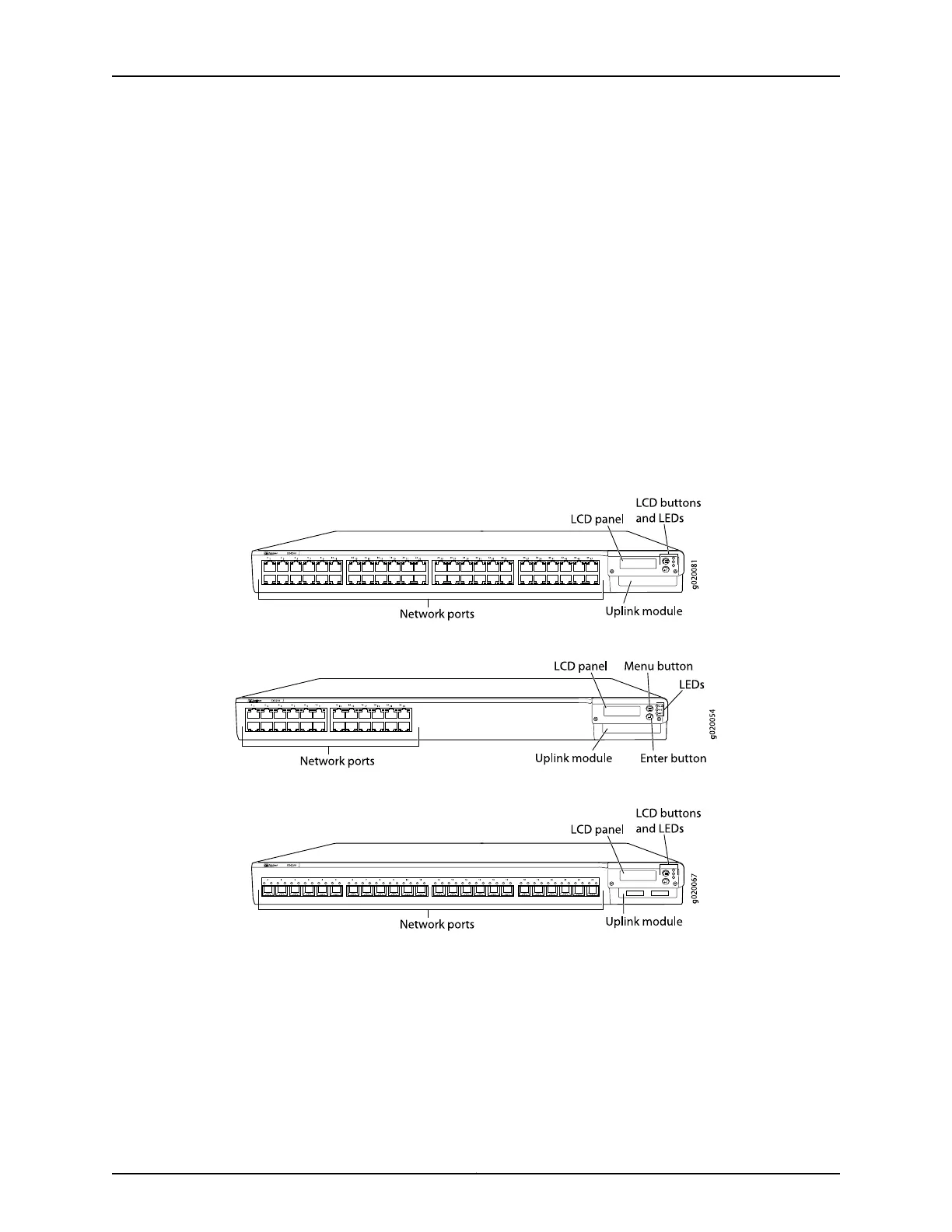

Figure 4: EX4200 Switch with 48 Gigabit Ethernet Ports
Figure 5: EX4200 Switch with 24 Gigabit Ethernet Ports
Figure 6: EX4200-24F Switch with 24 SFP Ports
Related Topics Chassis Status LEDs in EX4200 Switches on page 20•
• Rear Panel of an EX4200 Switch on page 11
• Network Port LEDs in EX3200 and EX4200 Switches on page 21
• Network Port Connector Pinout Information for an EX3200 or EX4200 Switch on
page 40
• LCD Panel in EX3200 and EX4200 Switches on page 13
Copyright © 2010, Juniper Networks, Inc.10
Complete Hardware Guide for EX3200 and EX4200 Ethernet Switches

Juniper EX3200 Series Specifications

General

Model	EX3200 Series
Rack Units	1 U
Layer	Layer 2/3
Maximum VLANs	4094
Ports	24 or 48
Power Supply	AC or DC power supply options
Power Supply Voltage	100 to 240 VAC or -48 VDC
Operating Humidity	10% to 90% non-condensing
Uplink Ports	4 SFP or SFP+
Operating Temperature	32°F to 104°F (0°C to 40°C)
