Table 34: Port Settings (continued)
ValuePort Settings
1Stop bits
NoneFlow control
5. In the HyperTerminal window, type at. Press Enter.
The modem sends an OK response to verify that it can communicate successfully
with the COM port on your desktop or notebook computer.
6. To configure the modem to answer a call on the first ring, type ats0=1 at the prompt.
Press Enter.
7. To configure the modem to accept modem-control DTR signals, type at&d1 at the
prompt. Press Enter.
8. To disable flow control on the modem, type at&k0 at the prompt. Press Enter.
9. To set the fixed serial port speed on the modem, type at&b1 at the prompt. Press
Enter.
NOTE: You must set the serial port to the fixed speed so that the modem will not adjust
the serial port speed to the negotiated line speed.
10. To save the new modem settings, type at&w0 at the prompt. Press Enter.
The modem sends an OK message. The modem is now ready to be connected to
the switch.
Connecting the Modem to the Console Port
The console port on every EX Series switch accepts a cable with an RJ-45 connector.
Figure 64 on page 157 shows the RJ-45 connector of the Ethernet cable supplied with the
switch.

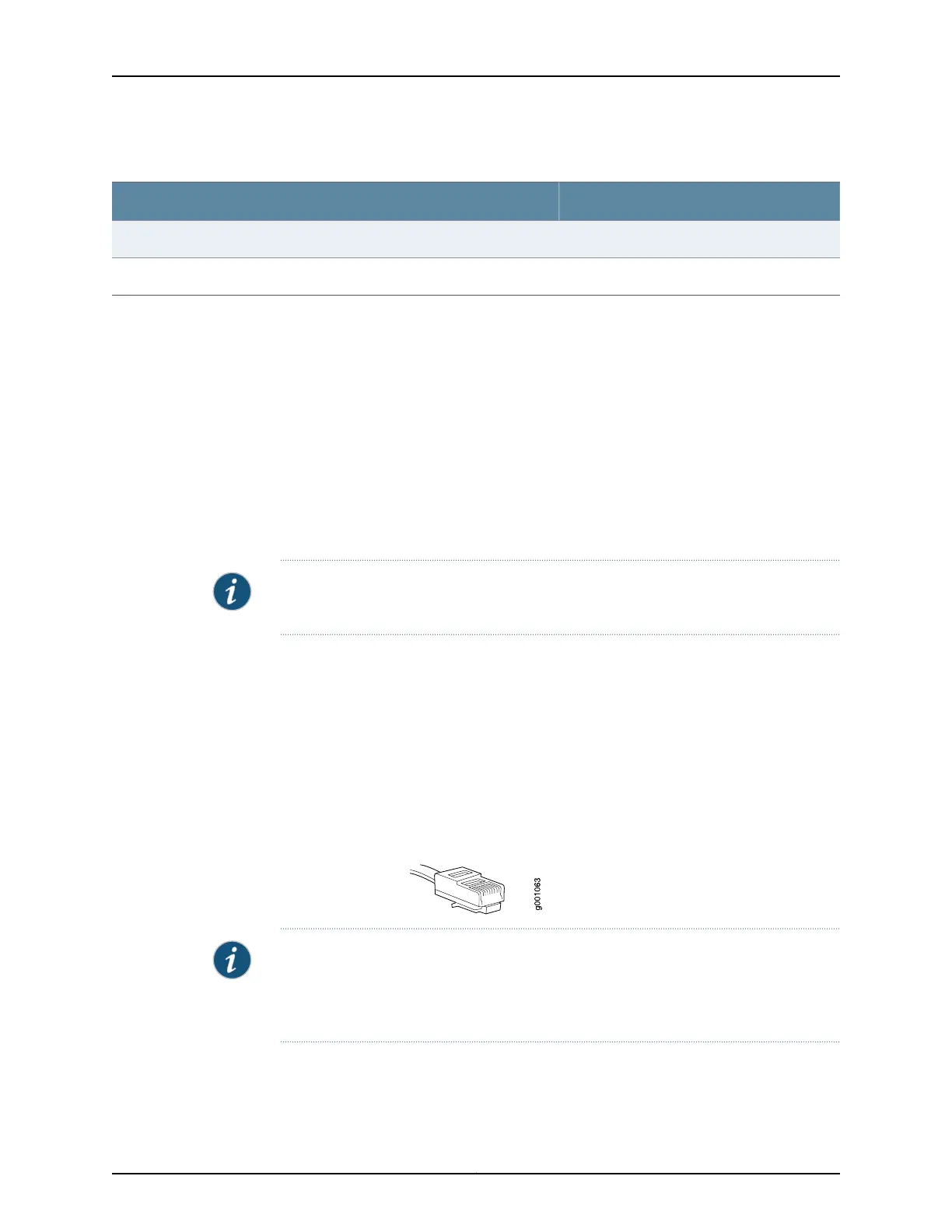

Figure 64: Ethernet Cable Connector
NOTE: If your laptop or PC does not have a DB-9 male connector pin and you want to
connect your laptopor PC directly to the switch, use a combination of the RJ-45to DB-9
female adapter supplied with the switch and a USB to DB-9 male adapter. You must
provide the USB to DB-9 male adapter.
157Copyright © 2010, Juniper Networks, Inc.
Chapter 11: Connecting the Switch
To Next Page
