Rear Panel of an EX4200 Switch
The rear panel of the EX4200 switch consists of the following components:
•
Fan tray
•
Virtual Chassis ports (VCPs)
•
USB port
•
Temperature shutdown LED
•
Management Ethernet port
•
Console port
•
ESD point
•
Power supply or power supplies
Figure 7 on page 11 shows the rear panel of an EX4200 switch. All EX4200 switches
have the same rear panel. The 320 W AC power supply and the 190 W DC are flush with
the chassis. The 600 W AC power supply and 930 W AC power supply extend out of the
chassis by 2.25 in. Power cord retainer clips extend out of the power supply by 3 in.

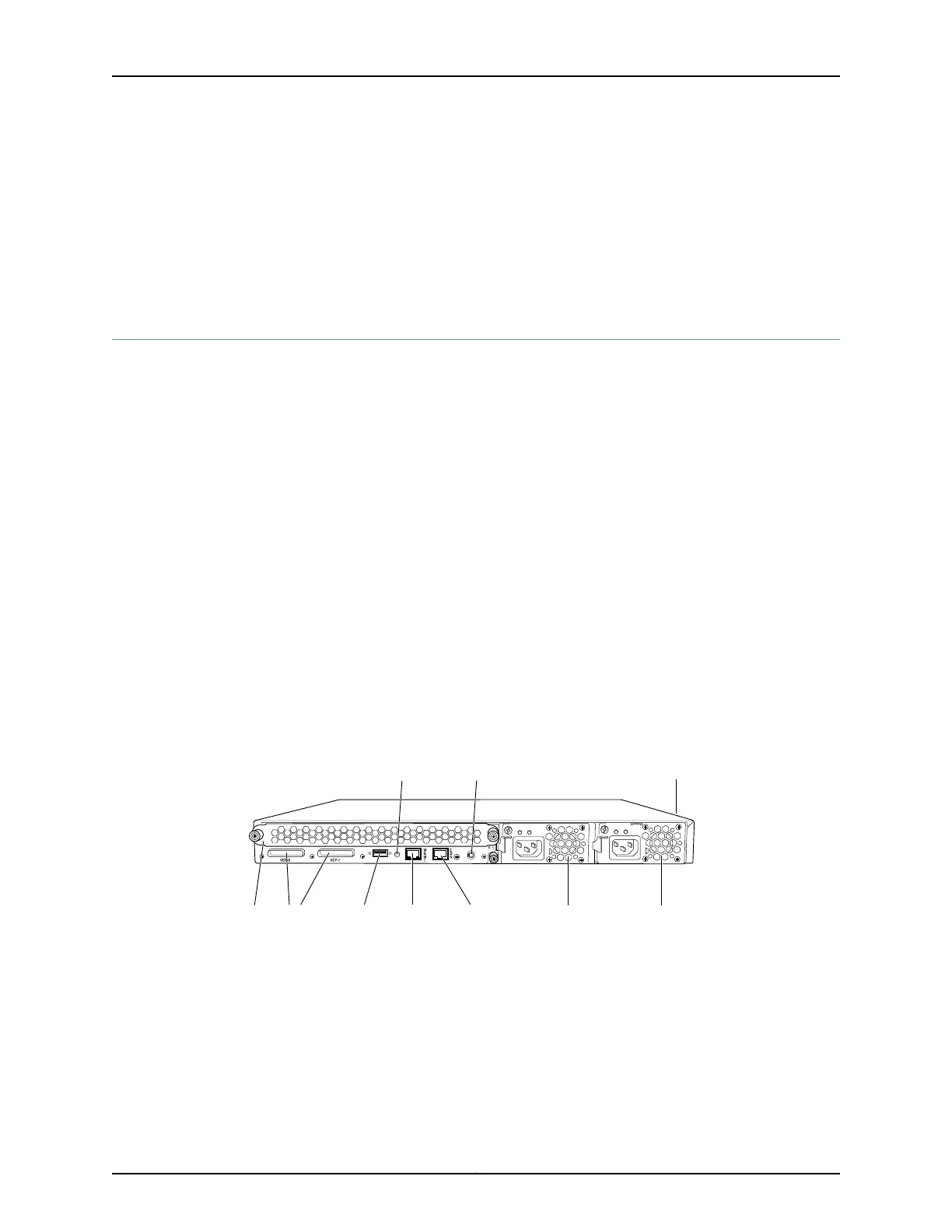

Figure 7: EX4200 Switch Rear Panel
g020084
Virtual
chassis
ports
USB
port
Management
Ethernet
port
Fan
tray
Console
port
Power
Supply 1
Power
Supply 0
Protective earthing
terminal (on side panel)
ESD
point
Temperature
shutdown LED
Related Topics • Field-Replaceable Units in EX3200 and EX4200 Switches on page 18
• Front Panel of an EX4200 Switch on page 9
• USB Port Specifications for an EX Series Switch on page 39
• Cooling System and Airflow in an EX4200 Switch on page 33
• Power Supply in EX3200 and EX4200 Switches on page 27
11Copyright © 2010, Juniper Networks, Inc.
Chapter 1: EX3200 and EX4200 Switches Overview

Juniper EX3200 Series Specifications

General

Model	EX3200 Series
Rack Units	1 U
Layer	Layer 2/3
Maximum VLANs	4094
Ports	24 or 48
Power Supply	AC or DC power supply options
Power Supply Voltage	100 to 240 VAC or -48 VDC
Operating Humidity	10% to 90% non-condensing
Uplink Ports	4 SFP or SFP+
Operating Temperature	32°F to 104°F (0°C to 40°C)
