Table 15: EX9200-40F Line Card
Junos OS Release RequiredDescriptionModel
12.3R2 or laterA line card with 40 1-Gigabit
Ethernet small form-factor
pluggable (SFP) ports, each of
which can house 1-gigabit small
form-factor pluggable (SFP)
tranceivers
EX9200-40F
See Figure 17 on page 29.

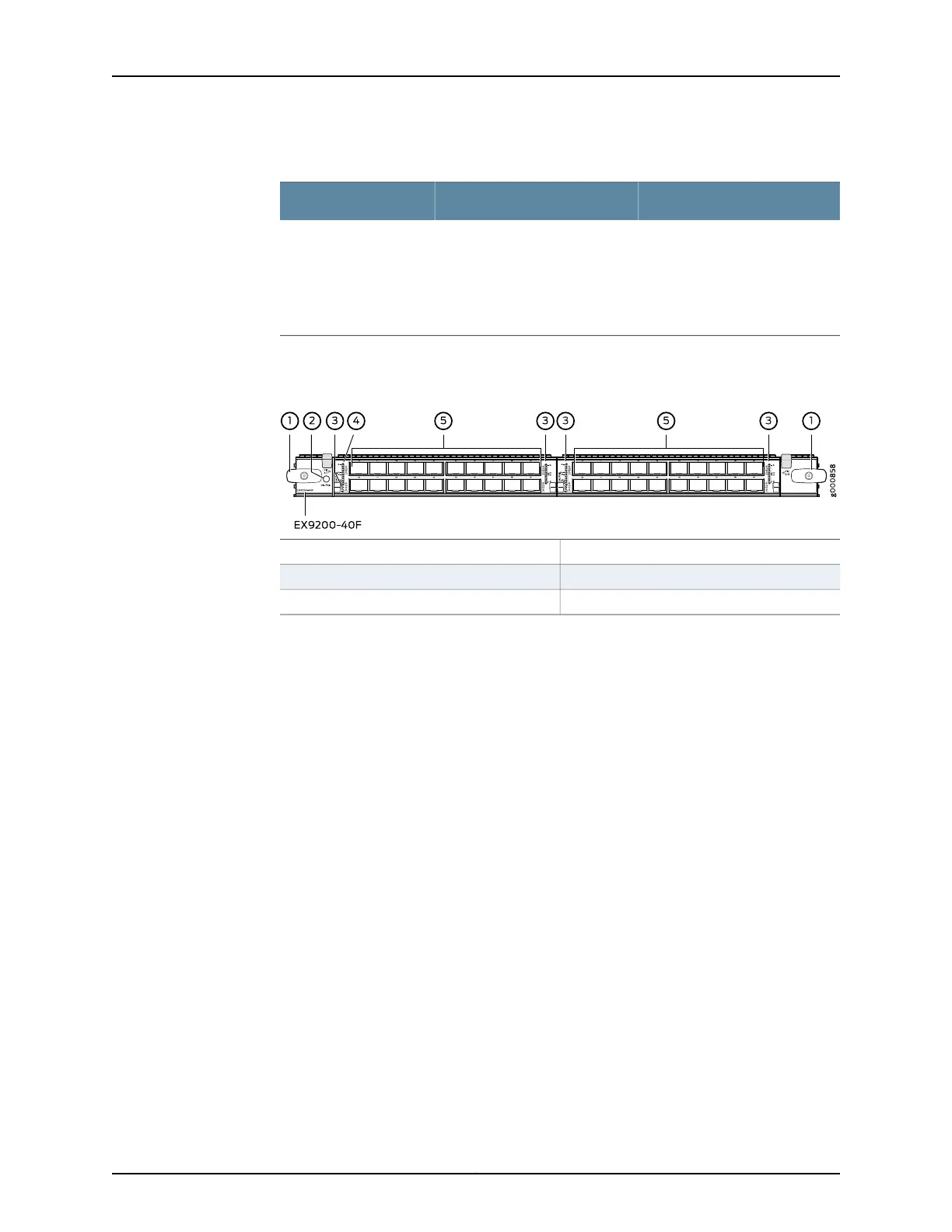

Figure 17: EX9200-40F Line Card
4—1— LEDs for SFP portsEjector lever
5—2— SFP portsLine card LED
3—MIC LED
You can use the show version command to see the version of Junos OS for EX Series
switches loaded on the switch.
Line Card Components
The EX9200-40F line card has:
40 SFP ports, each of which can house SFP tranceivers
40 dust covers for the 40 SFP ports (shipped in an accessory bag)
Line card LED—An LED labeled OK/FAIL indicates the status of the line card. See Line
Card LED in an EX9200 Switch.
MIC LED—An LED labeled OK/FAIL on each MIC indicates the status of the MIC. See
“Modular Interface Card LED in an EX9200 Switch” on page 5.
Network port LED—One LED on each network port indicates the link activity of the port.
See “Network Port LEDs in an EX9200 Switch” on page 15.
