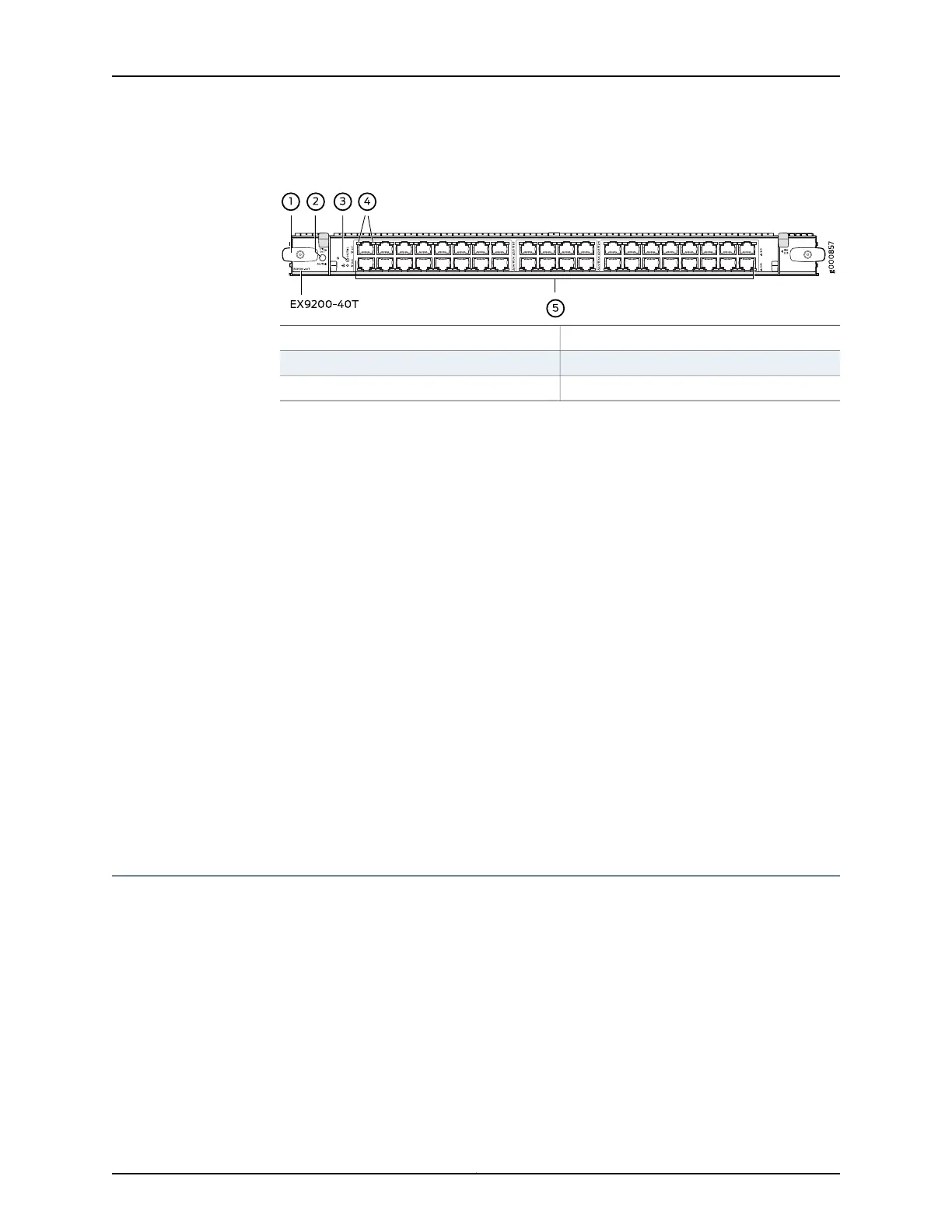

Figure 19: EX9200-40T Line Card
4—1— LEDs for 10/100/1000BASE-T portsEjector lever
5—2— 10/100/1000BASE-T portsLine card LED
3—MIC LED
You can use the show version command to see the version of Junos OS for EX Series
switches loaded on the switch.
Line Card Components
The EX9200-40T line card has:
•
40 10/100/1000BASE-T ports that support RJ-45 connectors
•
Line card LED—An LED labeled OK/FAIL indicates the status of the line card. See Line
Card LED in an EX9200 Switch.
•
MIC LED—An LED labeled OK/FAIL on each MIC indicates the status of the MIC. See
“Modular Interface Card LED in an EX9200 Switch” on page 5.
•
Network port LEDs—Two LEDs on each network port that indicate the link activity and
status of the port. See “Network Port LEDs in an EX9200 Switch” on page 15.
Related
Documentation
Line Card Model and Version Compatibility in an EX9200 Switch on page 35•
• Pluggable Transceivers Supported on EX9200 Switches on page 37
• Installing a Line Card in an EX9200 Switch
• Handling and Storing Line Cards in EX9200 Switches
EX9200-4QS Line Card
The line cards in EX9200 switches combine a Packet Forwarding Engine and Ethernet
interfaces on a single assembly. They are field-replaceable units (FRUs) that you can
install in the line card slots on the front of the switch chassis. Line cards are hot-insertable
and hot-removable: You can remove and replace them without powering off the switch
or disrupting switch functions.
This topic describes:
•
Line Card Models on page 33
•
Line Card Components on page 33
Copyright © 2016, Juniper Networks, Inc.32
Hardware Topics for Aloha Line Card
