Juniper SRX550 - Figure 6: SRX550 High Memory Services Gateway Slot Numbers; Figure 7: Example of a Standard GPIM (Installs in One Standard Slot); Figure 8: Example of a Double-High, Single-Wide XPIM

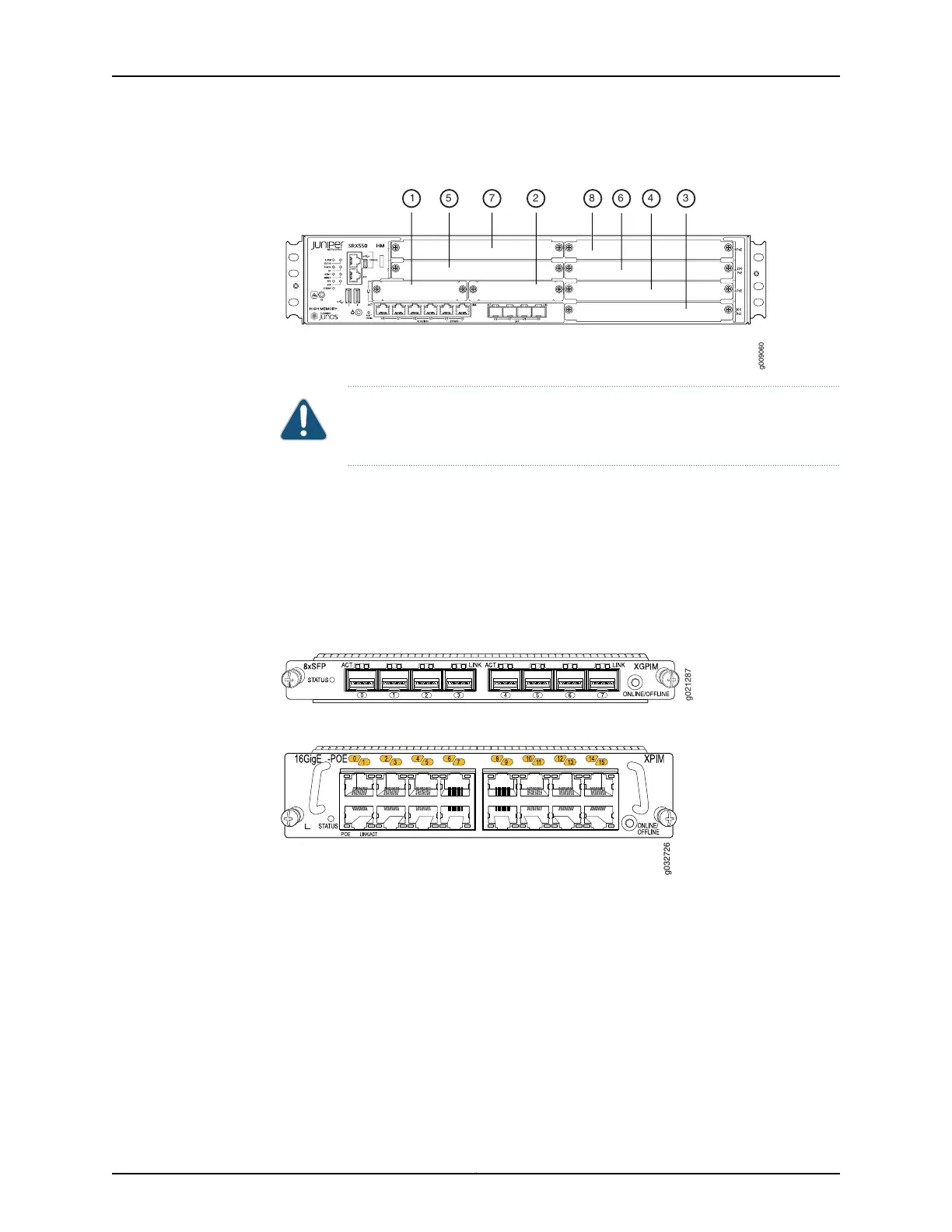

Figure 6: SRX550 High Memory Services Gateway Slot Numbers
g009060
1 5 7 2 8 46 3
CAUTION: SRX550 High Memory Services Gateway does not support
hot-swappable functionality for GPIMs.
The SRX550 High Memory Services Gateway supports the following XPIMs:
•
8-Port Gigabit Ethernet SFP XPIM
•
16-Port Gigabit Ethernet XPIM
Figure7 on page 24 and Figure 8 on page 24 show the form factors for the services gateway
GPIMs.
Figure 7: Example of a Standard GPIM (Installs in One Standard Slot)
g021287
Figure 8: Example of a Double-High, Single-Wide XPIM
g032726
Because the services gateway GPIMs communicate with the backplane at various
performance levels, you must install them in the correct slots.
Related
Documentation
SRX550 High Memory Services Gateway Front Panel on page 14•
• SRX550 High Memory Services Gateway Power over Ethernet on page 8
• 8-Port Gigabit Ethernet SFP XPIM on page 25
• 16-Port Gigabit Ethernet XPIM (PoE) on page 29
• SRX550 High Memory Services Gateway Mini-Physical Interface Modules Overview
on page 31
