can install Mini-PIMs into the two Mini-PIM slots on the front panel of the services gateway
chassis.
The SRX550 High Memory Services Gateway supports the following Mini-PIMs:
•
1-Port Serial Mini-PIM
•
1-Port T1/E1 Mini-PIM
Related
Documentation
SRX550 High Memory Services Gateway Front Panel on page 14•
• SRX550 High Memory Services Gateway Power over Ethernet on page 8
• SRX550 High Memory ServicesGateway Gigabit-Backplane PhysicalInterface Modules
Overview on page 23
• 8-Port Gigabit Ethernet SFP XPIM on page 25
• 16-Port Gigabit Ethernet XPIM (PoE) on page 29
• 1-Port Serial Mini-Physical (SRX-MP-1SERIAL-R) Interface Module on page 32
• 1-Port T1/E1 Mini-Physical (SRX-MP-1T1E1-R) Interface Module on page 34
1-Port Serial Mini-Physical (SRX-MP-1SERIAL-R) Interface Module
Figure 11 on page 32 shows the front panel of the 1-Port Serial Mini-Physical Interface
Module (Mini-PIM).

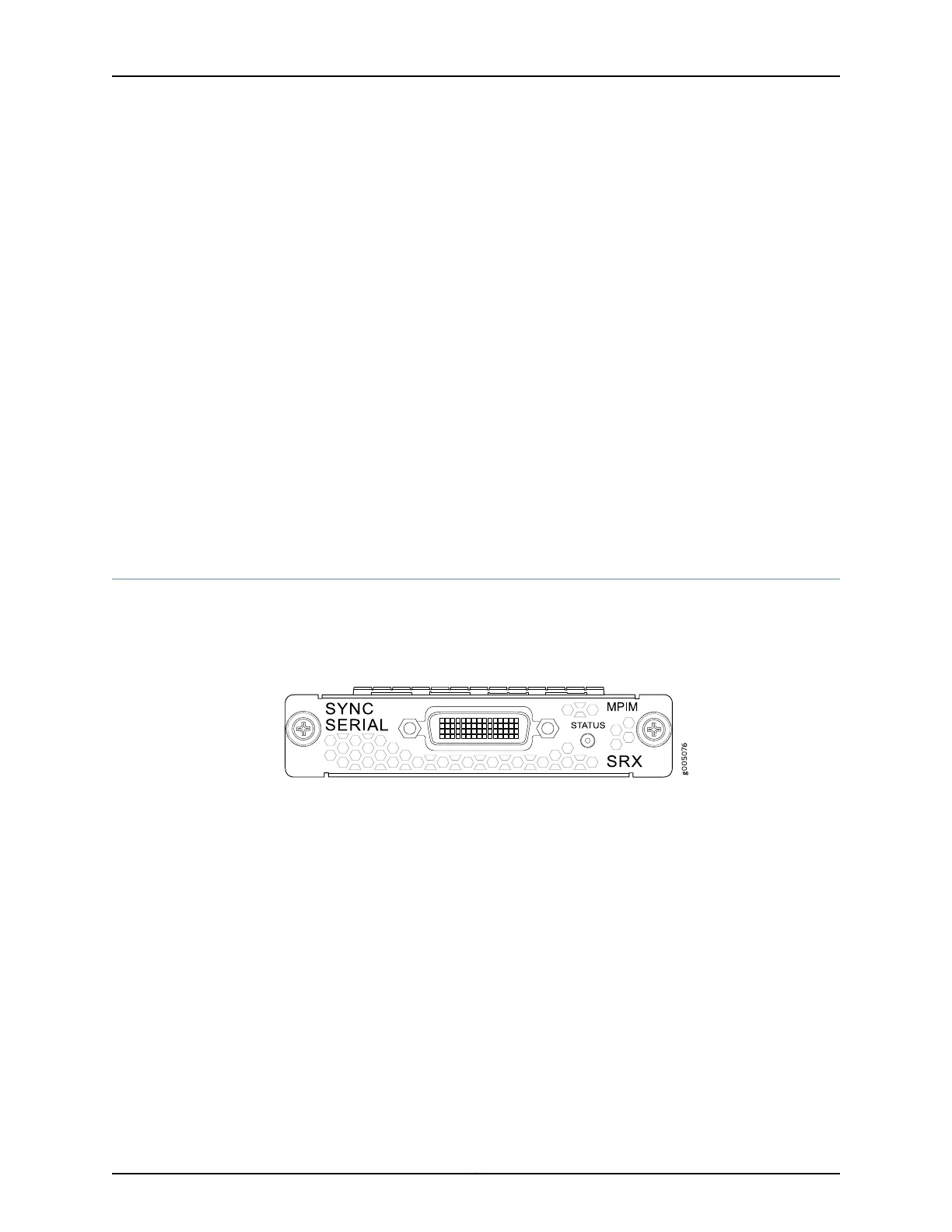

Figure 11: 1-Port Serial Mini-PIM (SRX-MP-1SERIAL-R) Front Panel
The 1-Port Serial Mini-Physical Interface Module (Mini-PIM) provides the following key
features:
•
Autoselection of operational modes based on DTE or DCE cables
•
Local and remote loopback diagnostics
•
Configurable clock rate for the transmit (TX) clock and receive (RX) clock
•
Complete configuration and management by using the CLI and the J-Web interface
The 1-Port Serial Mini-Physical Interface Module (Mini-PIM) supports the following
standards:
•
TIA/EIA 530
•
V.35
•
X.21
