Keithley 2303 - Power Supply Overview; High Speed Power Supply

1-4 Getting Started
Power supply overview
The power supply (shown in Figure 1-1) can output up to +15V at up to 3A or +9V at up to
5A. Voltage can be set in 1mV steps, and current limit can be set in 100µA steps. Maximum
power output is 45W. The power supply can also be used to sink current (up to 2A). As a sink
(current polarity is negative), the power supply is dissipating power rather than sourcing it (see
“Sink operation” for details).
NOTE Model 2303B has a blank front panel except for a POWER switch and an ON/OFF
LED. All references to front panel messages, menus, and keystrokes apply to the
Models 2303 and 2303-PJ, and the 2303B if using the Model 2304-DISP remote
display module.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
LINE RATING
100-120VAC/
200-240VAC
50, 60 HZ
150VA MAX
LINE FUSE
SLOWBLOW
2.0A, 250V
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
REMOTE
DISPLAY
OPTION
ISOLATION FROM EARTH:
22 VOLTS MAX.
+++
____
+
SOURCE SENSE
DVM IN
SOURCE
OUTPUT
15V/3A 9V/5A
A) Front Panel
B) Rear Panel
RELAY
CONTROL
15VDC MAX
POWER
2303 HIGH SPEED POWER SUPPLY 15V/3A 9V/5A
DISPLAY
OPERATE
ENTER
SET
MENU
LOCAL

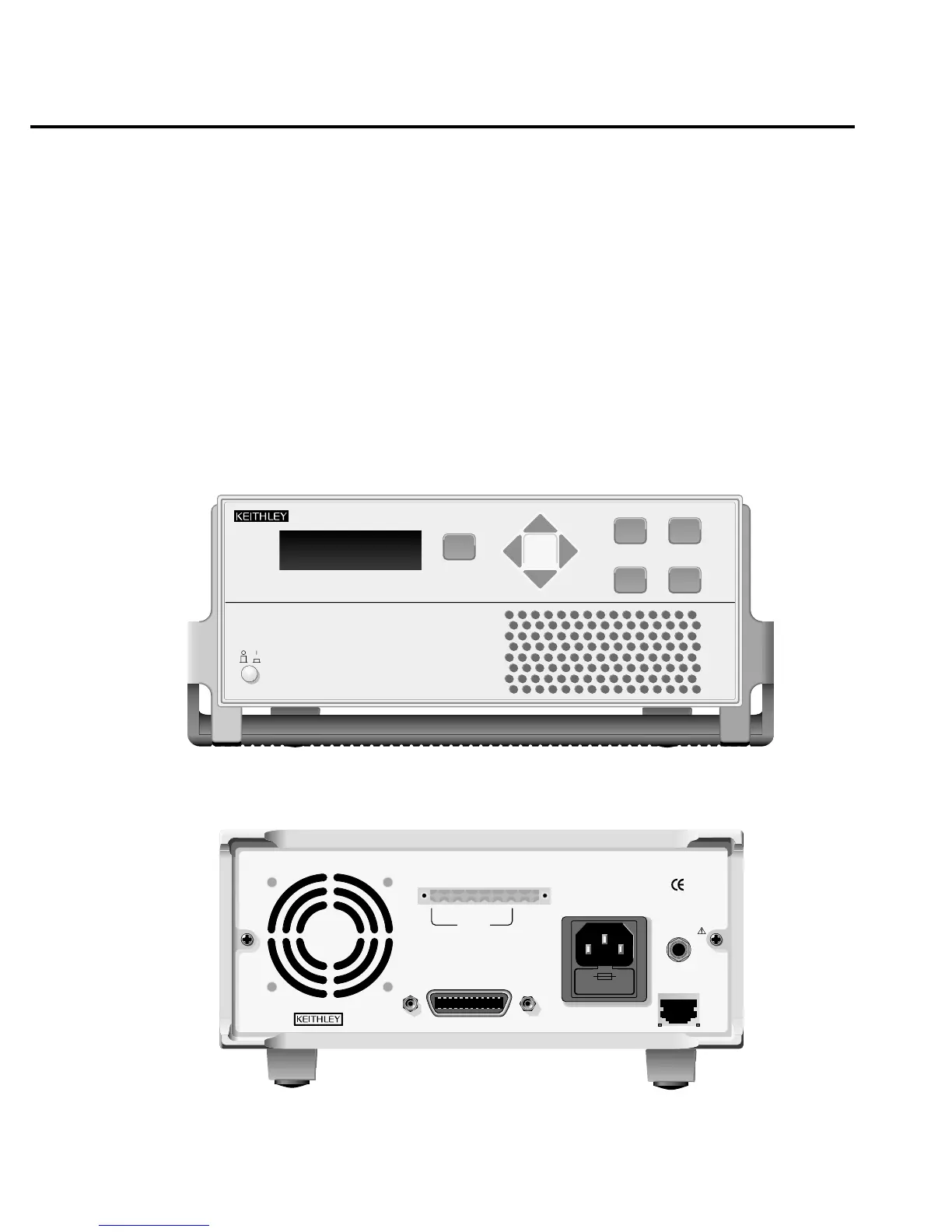

Figure 1-1
High speed power supply (Model 2303 shown)
