8-16 Triggering Model 6220/6221 Reference Manual
Return to Section 8 topics
For this example, the Model 622x and switching mainframe are configured as follows:
To run this test properly, set up the sweep with 10 points with the desired currents
(see
Section 4).
To start the test, press STEP on the switching mainframe to take it out of idle and
start the scan. The switching mainframes output pulse triggers the Model 622x to
output the sweep point current. The Model 622x then sends an output trigger
pulse to the switching mainframe to close the next channel. This process contin-
ues until all 10 sweep points are swept and channels are sequentially scanned.
Details of this testing process are explained in the following paragraphs and are
referenced to the operation model shown in Figure 8-9.

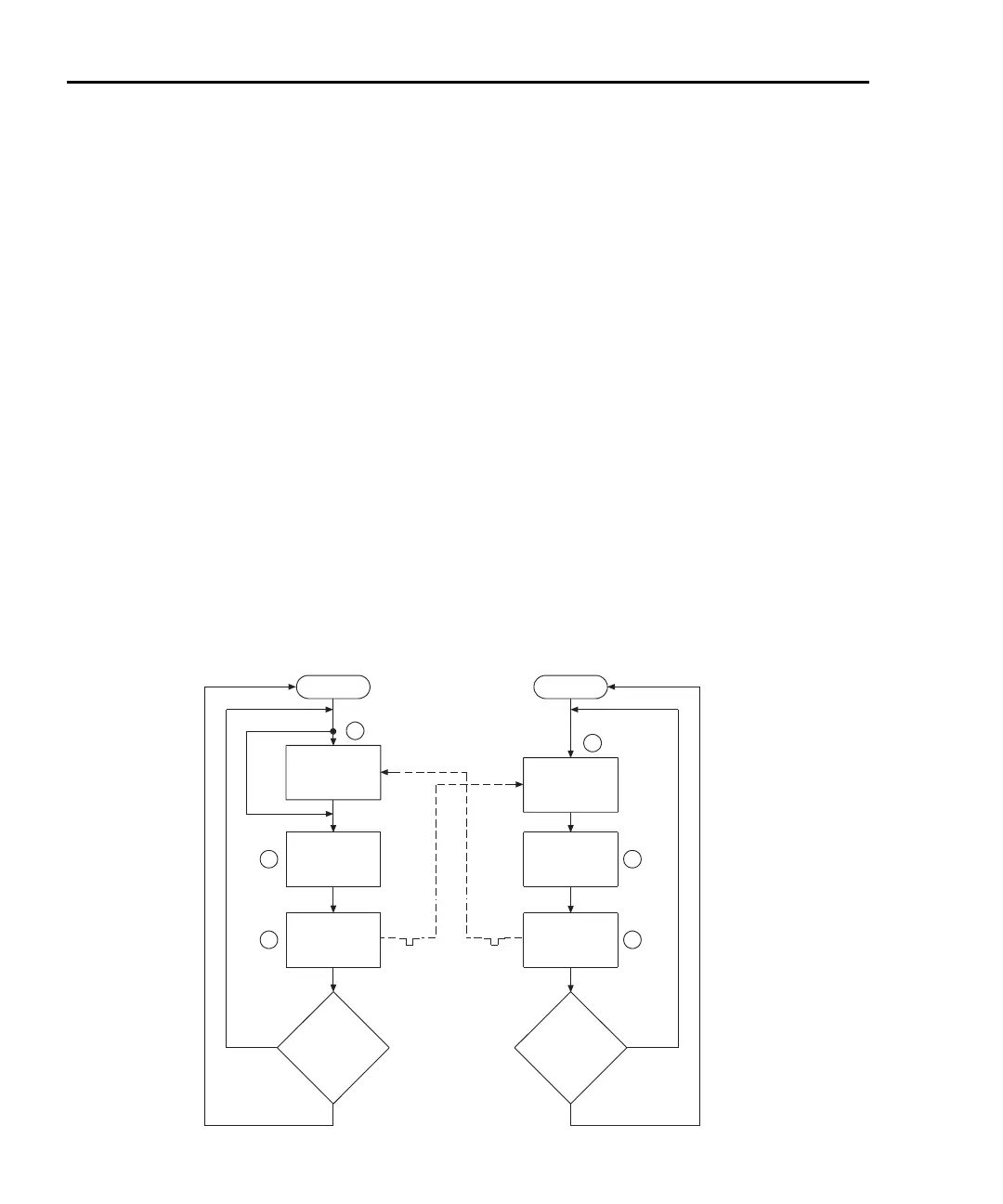

Figure 8-9
Operation model for triggering example
Model 622x Switching Mainframe
Factory Defaults Restored Factory Defaults Restored
Trig-In Event = TLink Scan List = 1!1-1!10
Trigger Input Line = #2 Number of Scans = 1
Trigger Output Line = #1 Channel Spacing = TrigLink
Trigger Output Delay Event = ON
Configure Sweep (Section 4)
Idle
Bypass
B
Wait for
Trigger Link
Trigger
Scan
Channel
C
Output
Trigger
Trigger
D
No
Scanned
10
Channels
?
Yes
7001or 7002
Output
Current
Sourced
10
Points
?
622x
Press STEP to start
A
Wait for
Trigger Link
Trigger
E
Output
Trigger
Trigger
F
No
Yes
Idle
