9-6 Triggering
Measure action
The measure action block of the trigger model is where a measurement is performed. How-
ever, if the repeating filter is enabled (see Figure 9-3), the instrument samples the specified num-
ber of reading conversions to yield single filtered reading. Only one reading conversion is
performed if the digital filter is disabled, or after the specified number of reading conversions
for a moving average filter is reached.
Output triggers
Model 6514 can send out an output trigger (via the rear panel TRIGGER LINK connector)
right after the measure action and/or when operation leaves the trigger layer. An output trigger
can be used to trigger another instrument to perform an operation (e.g., select the next output
step for a source).

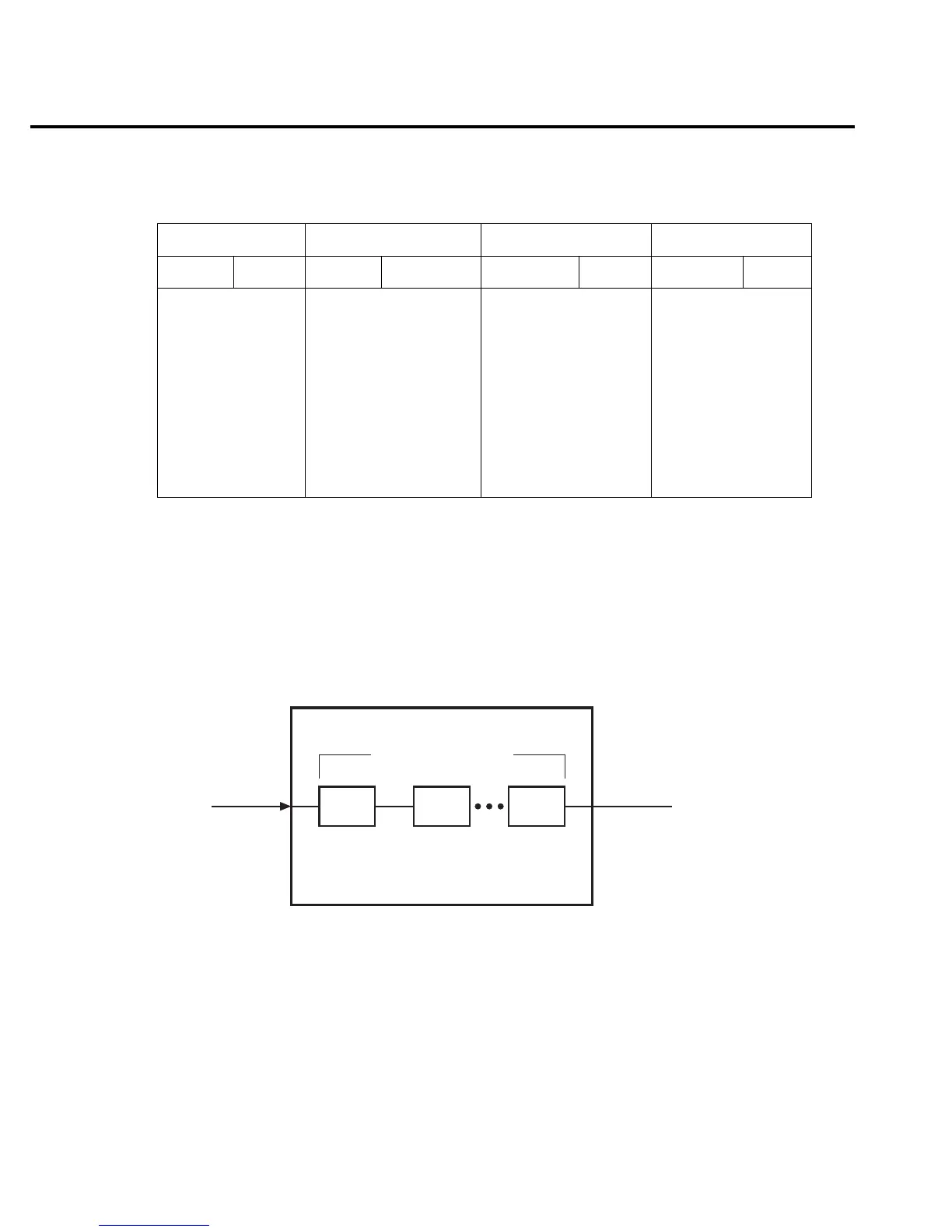

Table 9-1
Auto delay settings
Volts Amps Ohms Coulombs
Range Delay Range Delay Range Delay Range Delay
2V
20V
200V
5ms
3ms
2ms
20pA
200pA
2nA
20nA
200nA
2µA
20µA
200µA
2mA
20mA
2500ms
2500ms
10ms
10ms
10ms
10ms
5ms
5ms
1ms
0.5ms
2kΩ
20kΩ
200kΩ
2MΩ
20MΩ
200MΩ
2GΩ
20GΩ
200GΩ
5ms
1ms
1ms
10ms
10ms
10ms
50ms
50ms
50ms
20nC
200nC
2µC
20µC
3ms
3ms
3ms
3ms
Filter Process (Repeat)
CONV CONV CONV
CONV = Reading Conversion
Measure Action
Figure 9-3
Measure action block
of trigger model
To Next Page
