Getting Started 1-5
Front and rear panel familiarization
Front panel summary
The front panel of Model 6514 is shown in Figure 1-1.
NOTE Most keys provide a dual function or operation. The nomenclature on a key indicates
its unshifted function/operation, which is selected by pressing the key. Nomenclature
(in blue) above a key indicates its shifted function. A shifted function is selected by
pressing the SHIFT key and then the function/operation key.
1 Special keys and power switch
SHIFT Use to select a shifted function or operation.
LOCAL Cancels GPIB remote mode.
POWER Power switch. In position turns 6514 on (I), out position turns it off (O).
2 Function and operation keys
Top Row
Unshifted
V Selects voltage measurement function.
I Selects current measurement function.
Ω Selects resistance measurement function.
Q Selects charge measurement function.
XFBK Enables/disables External Feedback.
ZCHK Enables/disables Zero Check.
ZCOR Enables/disables Zero Correct.
GRD Enables/disables Guard.
6514 SYSTEM ELECTROMETER
RANGE
AUTO
SHIFT
LOCAL
POWER
RANGE
SHIFT
CH1REM
TALK
LSTN
SRQ
STAT
REL FILT
4W
BUFFER
MATH
REAR
SCAN
TIMER
STEP CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10
HOLD TRIG FAST MED SLOW AUTO ERR
EXIT ENTERHALT TRIG
RATEDIGIT
MEDN
AVG
REL LIMIT
STORE RCLL
V
V-DROP
I
Ω
XFBK ZCHK ZCOR GRD
AUTO-DIS
GPIB
RS-232
VAL
CONF-LIM
MX+B
%
TEST CAL
SAVE SETUP
UNITS
CONF-TRIG
CONF-ARM
NPLC
DELAY DAMP
Q
4
1
23
5

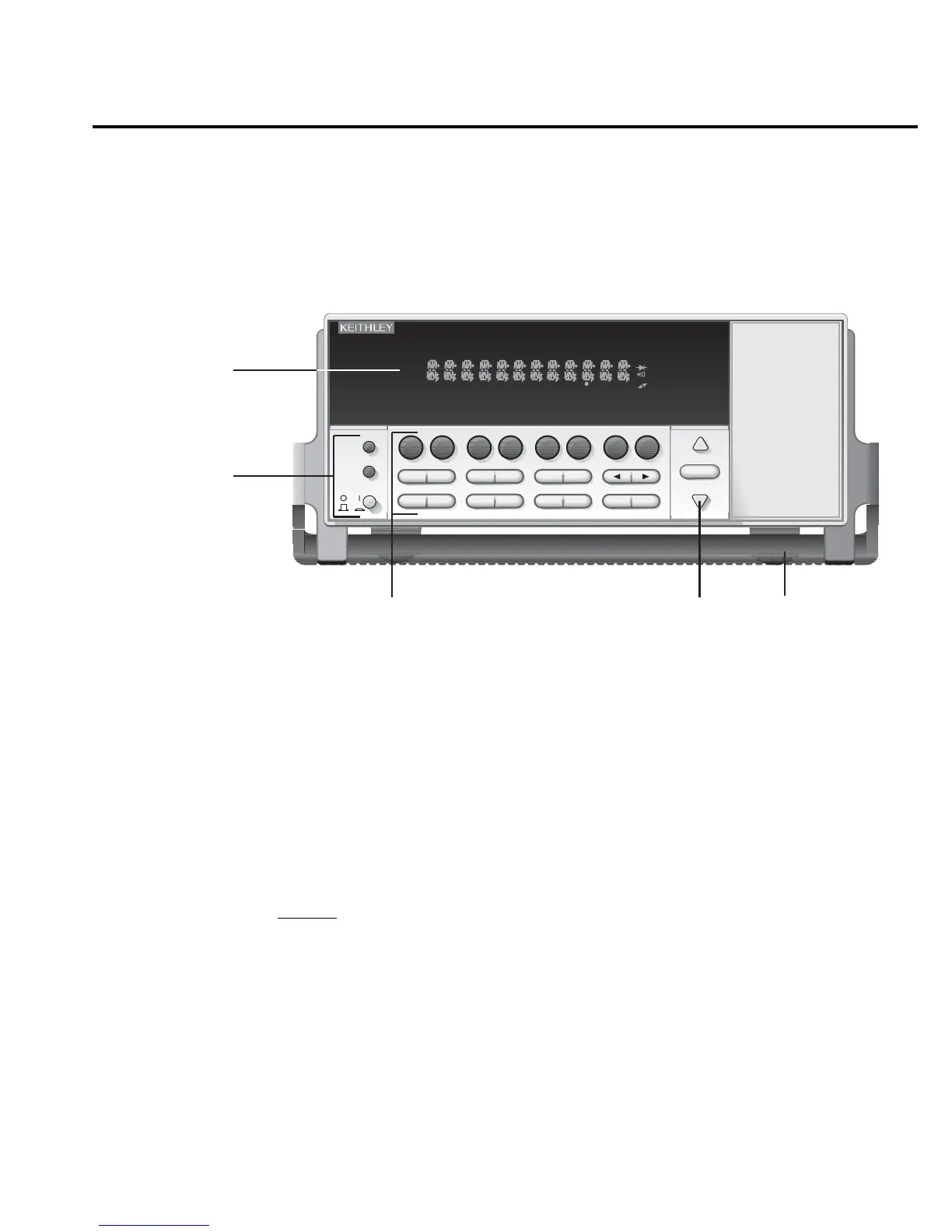

Figure 1-1
Model
6514
front panel
