KERN AEJ-C Series

AEJ-C/AES-C/PLJ-C-BA-e-1621 23

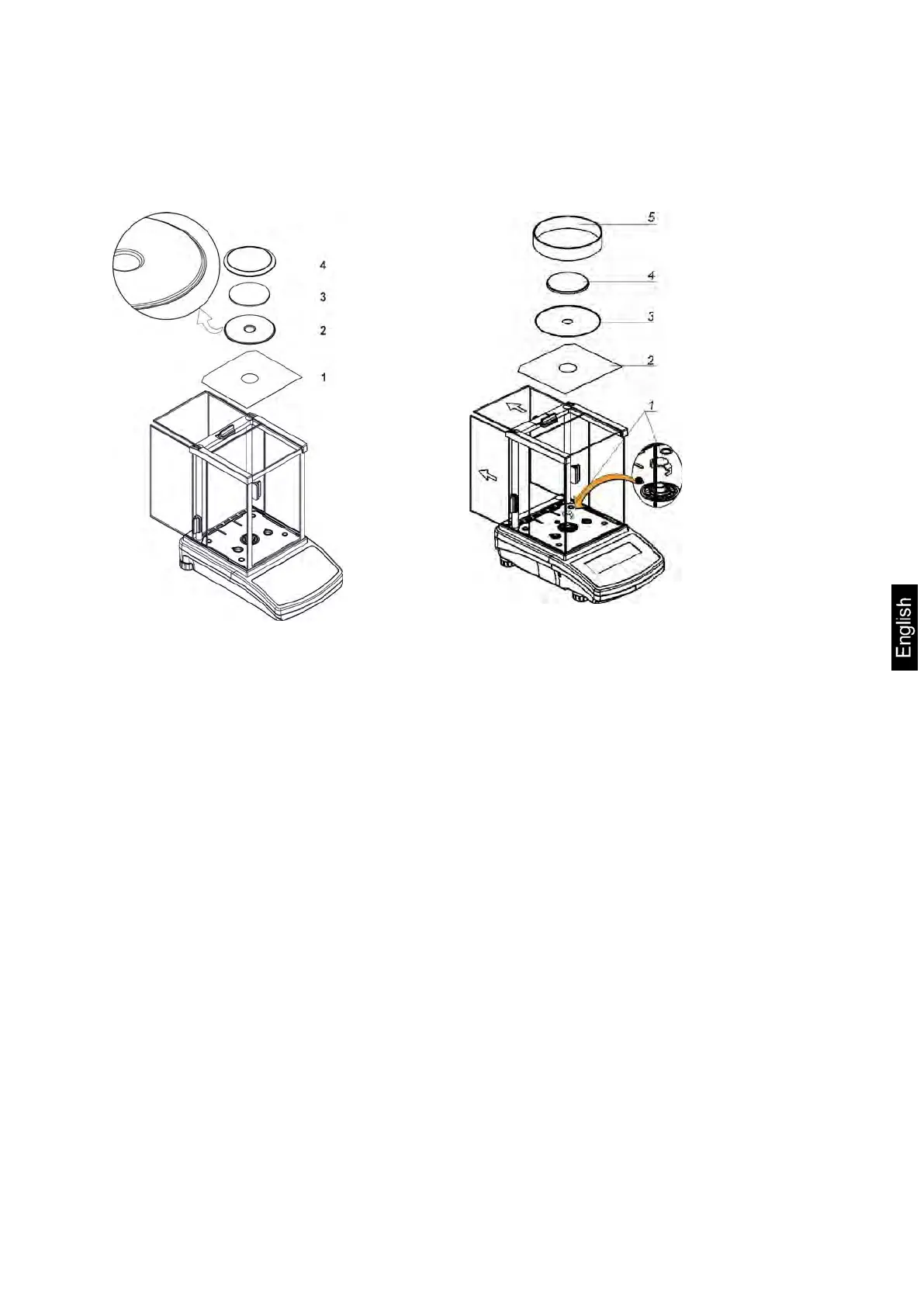

 Installation of weighing plate
Models AEJ/AES-C (except AEJ-5CM) Model AEJ-5CM
• Open glass draft shields on all sides
• Place protection sheet (1) into the
weighing chamber
• Place centring ring (2) on the
protection sheet
• Put weighing plate (3) on the
centring ring
•
Place wind protection ring (4) into the
weighing chamber
• Open glass draft shields on all sides
• Remove transport securing (1).
• Place protection sheet (2) into the
weighing chamber
• Place centring ring (3) on the
protection sheet
• Put weighing plate (4) on the
centring ring
• Place wind protection ring (5) into the
weighing chamber
