Operating the Power System 4
Keysight N6700 User’s Guide 73
Program an Output Pulse or Pulse Train
The following procedure shows how to generate an output pulse train
using the List function.
Set the voltage or current function for which you want to generate a
pulse to List mode. This example programs a voltage pulse.
Select
. Set the
voltage mode to List. Press Select.
To program output 1, use
Set the amplitude and width of the pulse. For example, to generate a
pulse with an amplitude of 15 V and a pulse width of 1 second, use:
Select
.
Select List Step 0 and enter a
voltage value of 15. Press Select.
Enter a dwell value of 1 for List
Step 0 and Press Select.
To program output 1, use
LIST:VOLT 15, (@1)
LIST:DWEL 1, (@1)
Set the list pacing to Auto, so that as each dwell time elapses, the next
step is immediately output.
Select
.
Select Dwell and press Select.
If you only wish to program a single pulse, skip steps 4 and 5 and go to
step 6.
Step 4.
If you want to generate a pulse train, you must specify the off time
between pulses. To do this you must program another step. For a
voltage list, you must specify an amplitude and an off time. For example,
to program an off time of 2 seconds with an amplitude of 0 V between
pulses, use:
Select
.
Select List Step 1 and enter a
voltage value of 0. Press Select.
Enter a dwell value of 2 for List
Step 1 and Press Select.
To program output 1, use
LIST:VOLT 15,0, (@1)
LIST:DWEL 1,2, (@1)

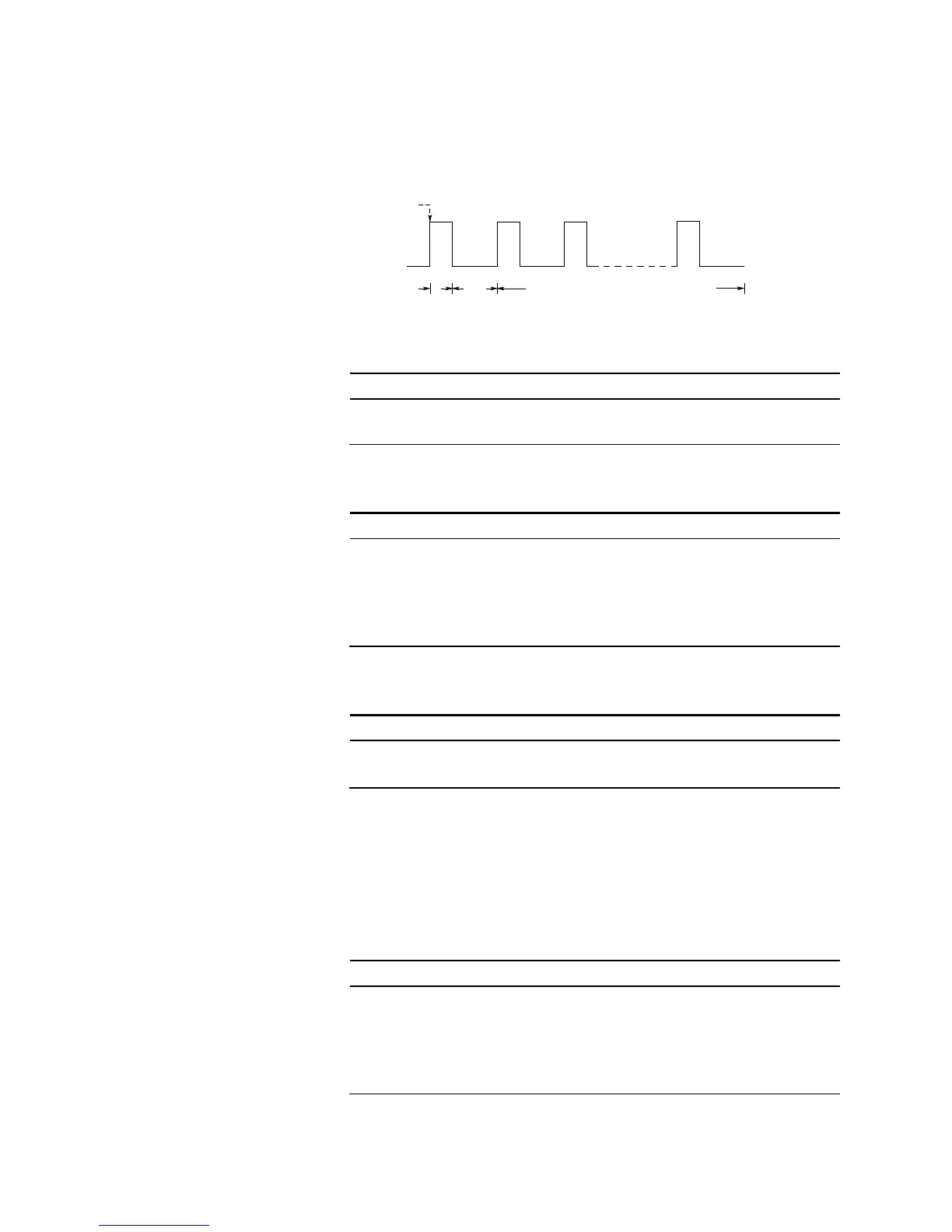

List Count = 1+additional pulses
Trigger
10
Pulse width
Off
time
