4 Operating the Power System
76 Keysight N6700 User’s Guide
Select
.
Select Dwell-paced. Press Select.
In a trigger-paced list, the list advances one step for each trigger
received. To enable trigger-paced lists, select Trigger-paced on the front
panel menu. (Set the LIST:STEP command to ONCE.)
The dwell time associated with each step determines the minimum time
that the output remains at the step. If a trigger is received before the
dwell time completes, the trigger is ignored. To ensure that no triggers
are lost in a trigger-paced list, set the dwell time to zero.
Specify if you want the list to generate trigger signals that can be used
to trigger actions on other output channels or on external equipment
connected to the digital port.
Select
.
Select the List Step number.
To generate a trigger, enter a 1 in
the Tout Begin Step or Tout End
Step field. If a zero is entered, no
trigger is generated for the step.
Repeat this for each step. Use the
keys to select the next step.
To program a trigger at the start of
step 4 for output 1, use
LIST:TOUT:BOST 0,0,0,0,1,0,
@(1)
To program a trigger at the end of
step 0, 2, and 4 for output 1, use
LIST:TOUT:EOST 1,0,1,0,1,0,
(@1)
Specify how you want the list to terminate. For example, if you want the
list to remain at the values of the last list step when finished, use:
Select
.
Select Stop Last Step. Press Select.
To program output 1, use
If applicable, specify how many times you want the list to repeat.
Sending the INFinity parameter in the SCPI command makes the list
repeat indefinitely. At reset, the list count is set to 1.
Select the
.
Enter the number of list repetitions
(2) and Press Select.
To program the output 1 list to
repeat 2 times, use
Select a trigger source, initiate, and trigger the list. This is described in
detail under "Synchronizing Output Steps".

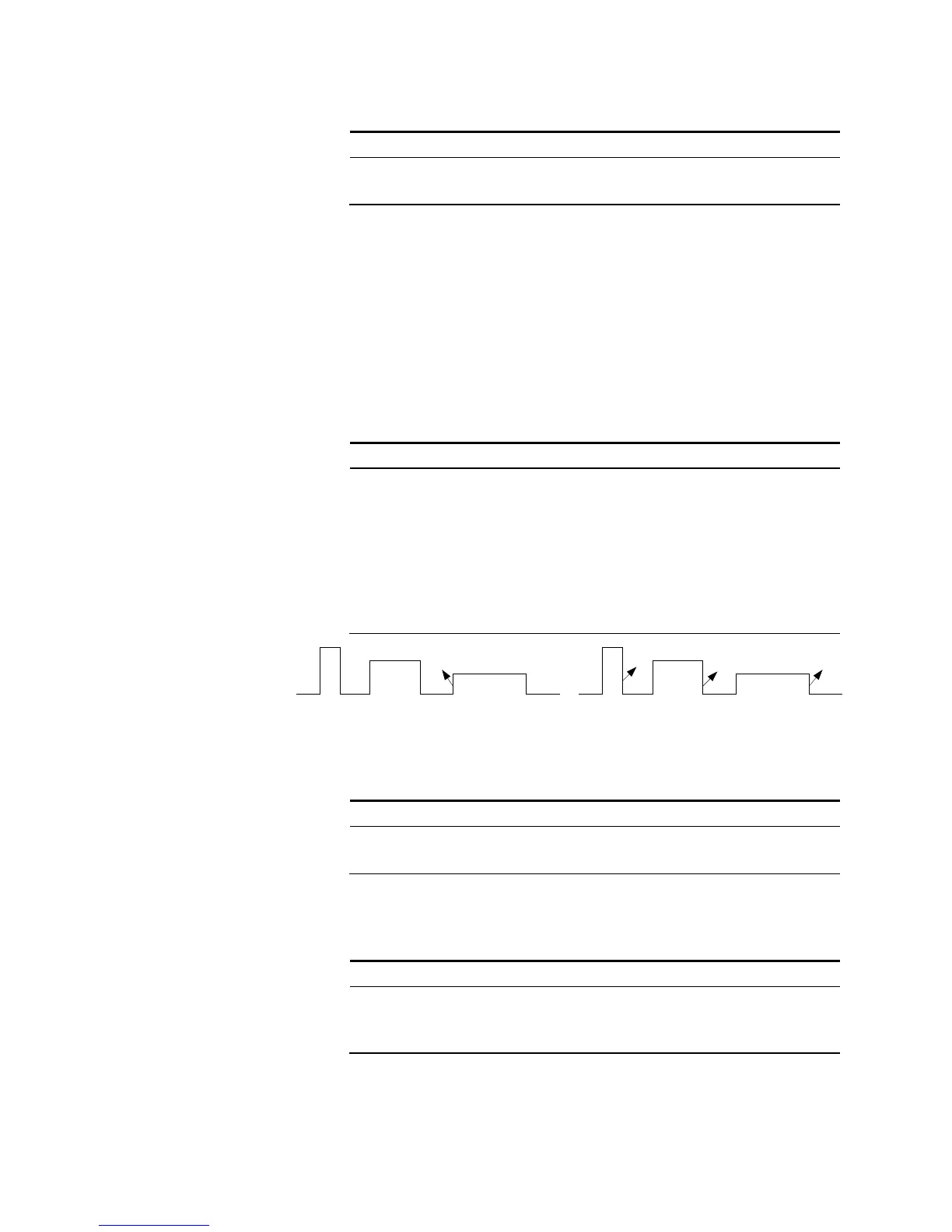

1
Trigger at BOST
0 2 3 4 5 1
Trigger at EOST
0 2 3 4 5
