General Operating Information 2
Keysight 2050/60 X-Series User’s Guide 49

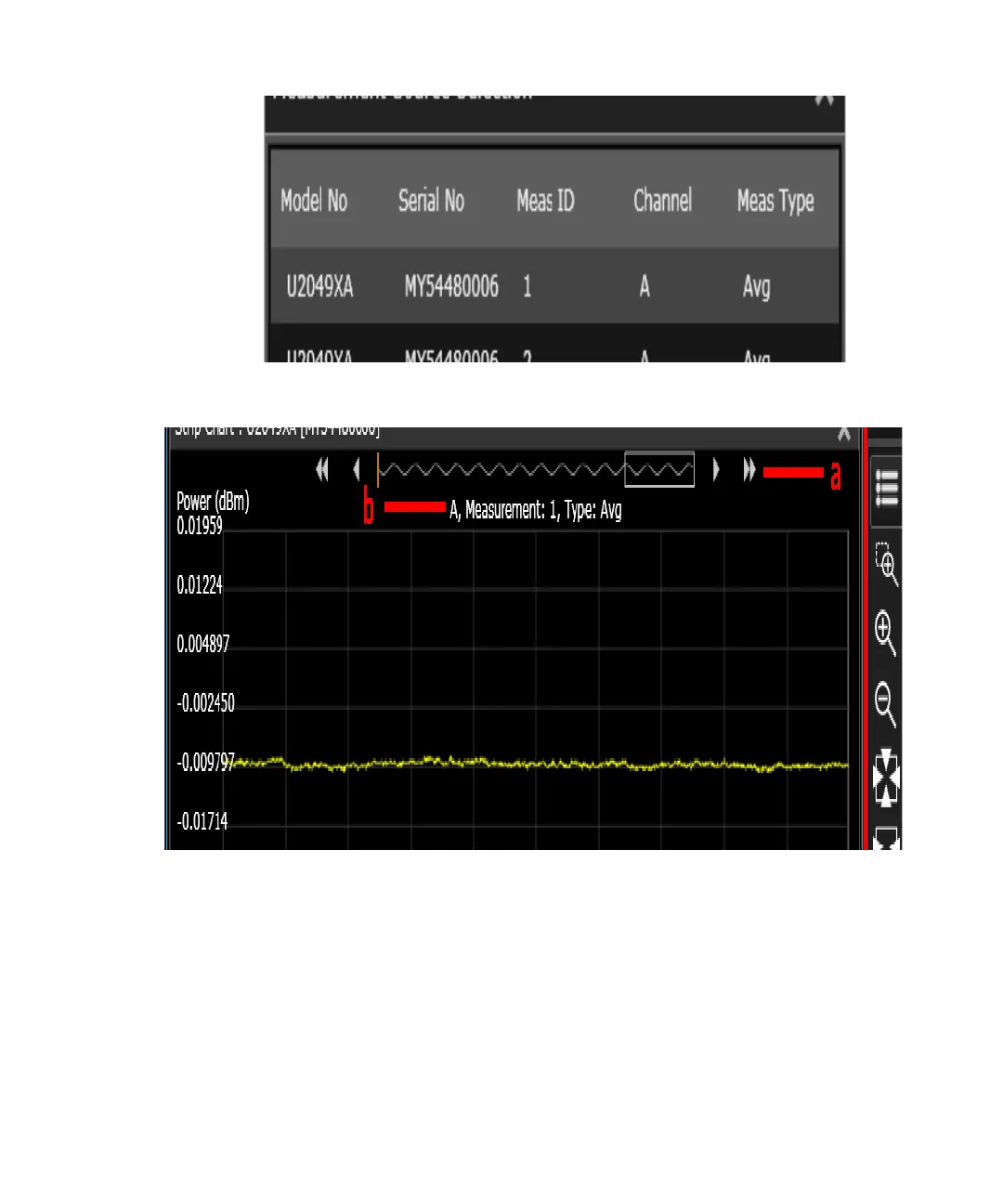

Figure 2-7 Selecting one of the measurements
Figure 2-8 Data preview bar
a Data preview bar
b Indicates the channel name, measurement number, measurement type
c Tools palette to provide control for the datalog chart (refer to the BenchVue Power
Meter help documentation for details)
d Summary of marker measurements and alert limit conditions for the current
measurement.
