Keysight U2057XA - Figure 2-16 Viewing the Power Measurement Results of the Pulse

2 General Operating Information
54 Keysight 2050/60 X-Series User’s Guide
8 View the power measurement results of the pulse at the Pulse Analysis tab under
Information Panel.

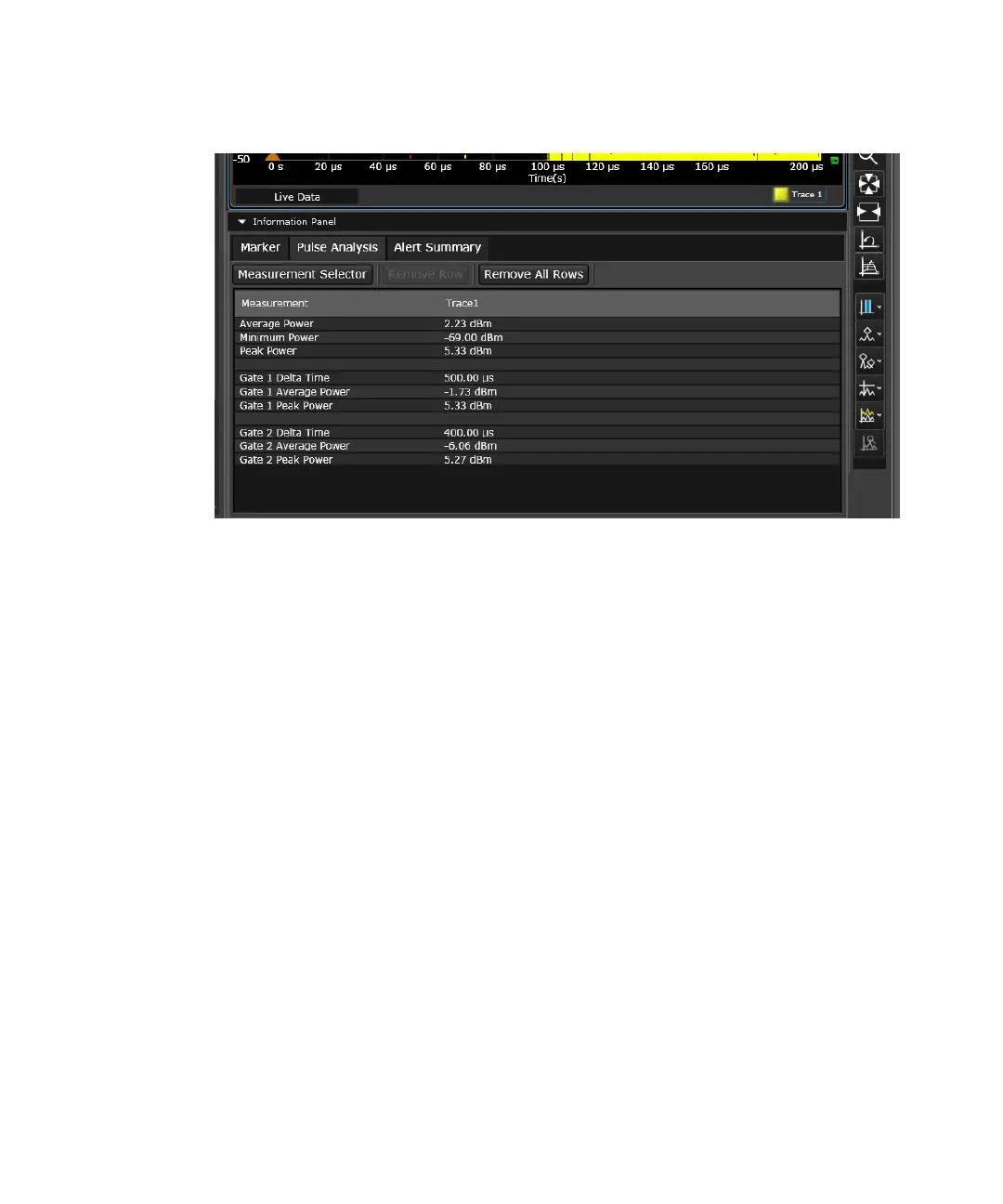

Figure 2-16 Viewing the power measurement results of the pulse
You can select additional pulse and gate measurements to display by clicking the
Measurement Selector tab.
