Overview of Multiple Power Sensor Operation
This section provides examples on how to operate multiple sensors using the BenchVue
Power Meter application.
Single bench operation
Multiple Digital Meter display views
Select the instruments to use at Instrument Setup > Additional Instruments. Add up to four
Digital Meter display views by clicking and selecting the measurement sources to
display.

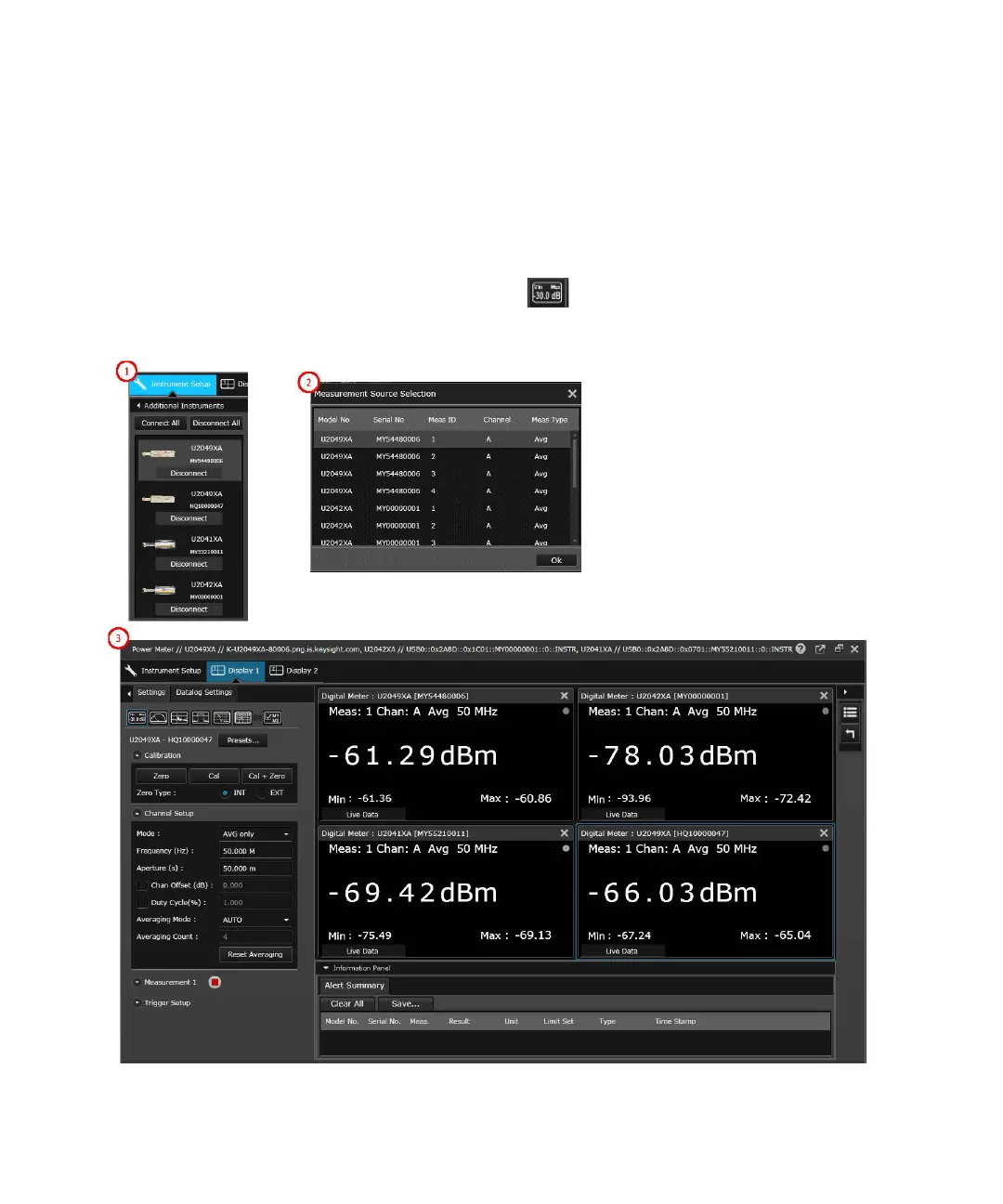

Figure 2-25 Multiple Digital Meter display example
