Keysight U2057XA - Figure 2-35 Channel Setup -Normal Mode

2 General Operating Information
74 Keysight 2050/60 X-Series User’s Guide
SCPI command is [:SENSe[1]:]AVERage:COUNt:AUTO OFF| 0 +
[:SENSe[1]:]AVERage:COUNt <numeric_value>
c OFF – Disables averaging. The corresponding SCPI command is
[:SENSe[1]:]AVERage[:STATe] OFF |0
When the sensor is set to AVERAGE mode, an additional setting is added in the
channel panel that allows you to configure aperture time and duty cycle

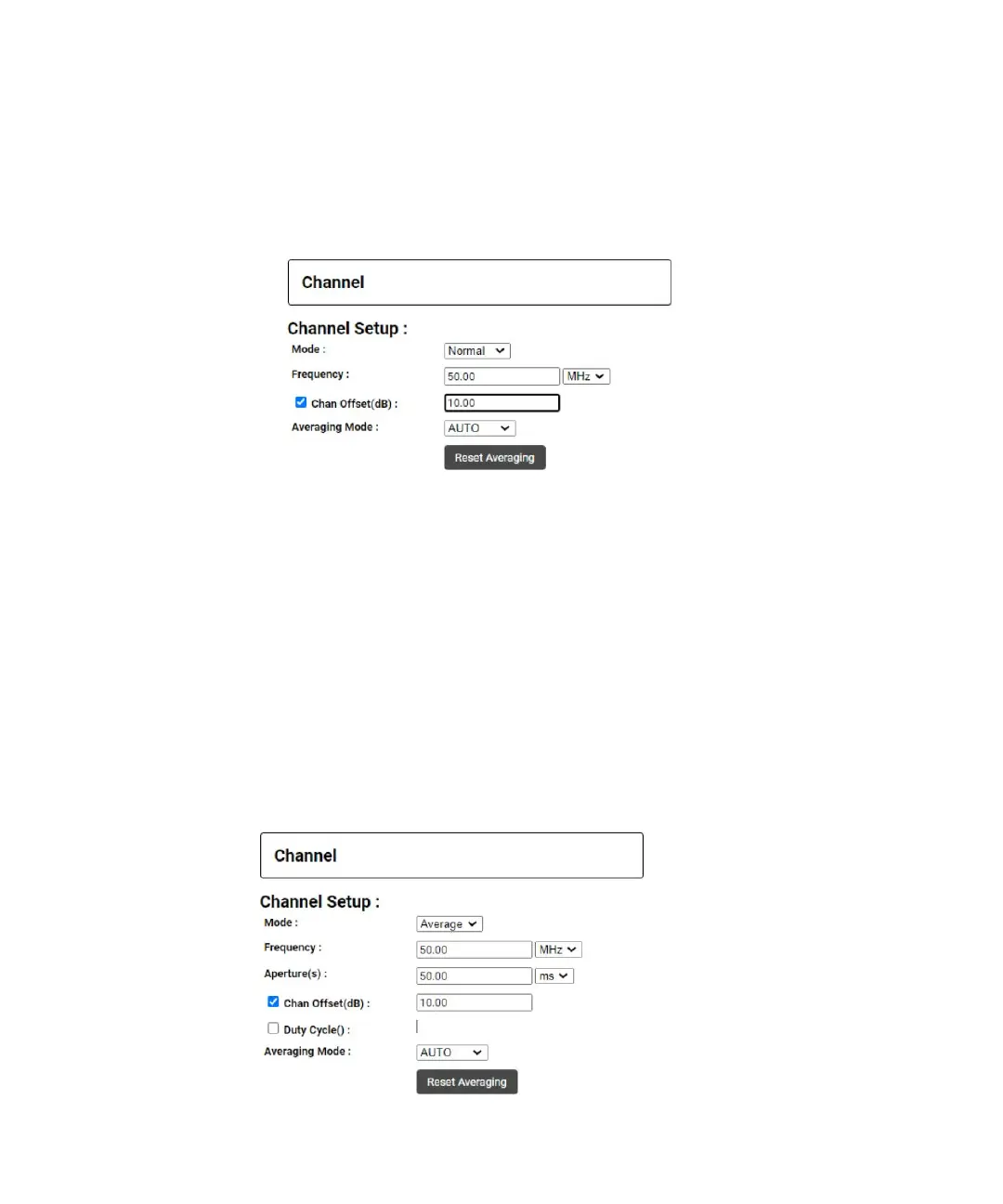

Figure 2-35 Channel Setup -Normal Mode
5 Aperture time – Sets the aperture duration or measurement interval. Select the unit
from the drop down and enter the aperture time value. The range of aperture time
allowed for 2050/60 X-Series sensors is 20us to 200ms for >= 300 MHz. For <300 MHz,
the minimum aperture size is 50us. By default, the aperture is 50ms. The corresponding
SCPI command is [:SENSe[1]:]SWEep:APERture <numeric_value>.
6 Duty cycle - Sets the pulse power measurement value. Select Duty Cycle() check box
for the duty cycle text box to appear and enter the desired value. Deselect the check
box to disable the pulse power measurement value. By default, this field is disabled.
The corresponding SCPI command is [:SENSe[1]:]CORRection:DCYCle|GAIN3:STATe
ON|OFF|1|0 and [:SENSe[1]:]CORRection:DCYCle|GAIN3[:INPut][:MAGNitude]
<numeric_value>
