Kidde AEGIS 84-732001-001

Installation
August 2007 2-6 P/N 06-236716-001
2-3.1.2 SEMI-FLUSH MOUNTING
1. Cut and plumb an opening of dimensions as shown in Figure 2-3 in the wall on which the
control unit will be semi-flush mounted.

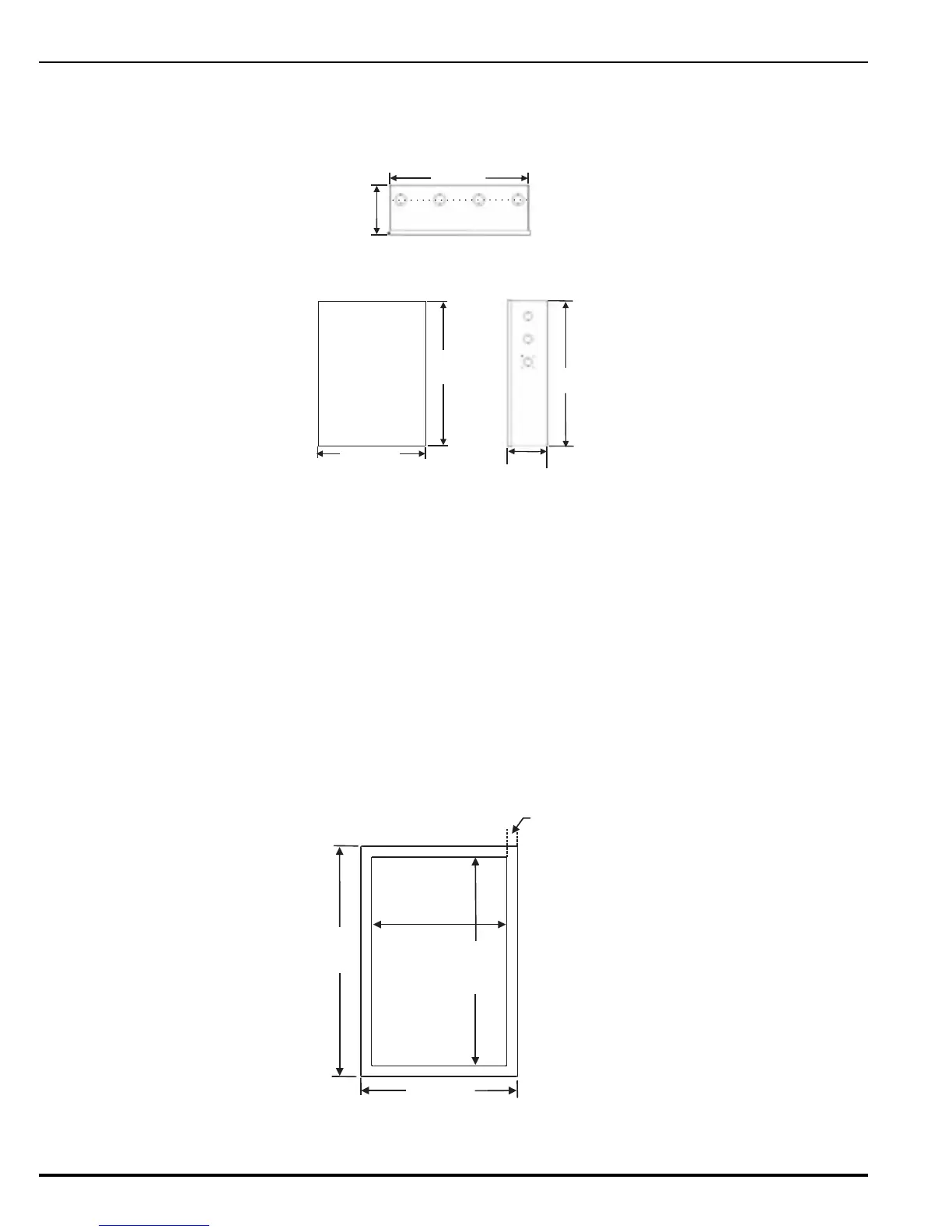

Figure 2-3. Semi-Flush Mounting Dimensions
2. Position and plumb the back box in the opening made in Step 1. Ensure that the front edge
of the back box is at least 3/4-inch (19 mm) from the surface of the wall. Secure the back
box to the wall with appropriate mounting bolts (up to 1/4-20).
3. Attach wiring conduit to the enclosure through the enclosure knockouts, and pull the
required number of wires through the conduit to the enclosure. Leave approximately 2 to
3 feet (600 to 900 mm) of wire length in the enclosure for future internal connections.
2-3.1.3 SEMI-FLUSH MOUNTING WITH TRIM RING, P/N 76-600000-007
A Trim Ring (P/N 76-600000-007) can be used to enhance the final installed appearance of a
semi-flush mounted AEGIS unit.
Figure 2-4. Trim Ring Dimensions
14-1/4 in.
(362 mm)
5 in.
(127 mm)
5 in.
(127 mm)
19-1/8 in.
(486 mm)
18-13/16 in.
(978 mm)
14-3/8 in.
(365 mm)
TOP VIEW
SIDE VIEW
FRONT VIEW
WALL CUTOUT
14-9/16 in.
(370 mm)
INSIDE
1-1/2 in.
(38 mm) TYP.
ALL AROUND
23-13/16 in.
(605 mm)
17-9/16 in.
(446 mm)
20-13/16 in.
(529 mm)
INSIDE
