Kidde AEGIS 84-732001-001

Installation
August 2007 2-16 P/N 06-236716-001

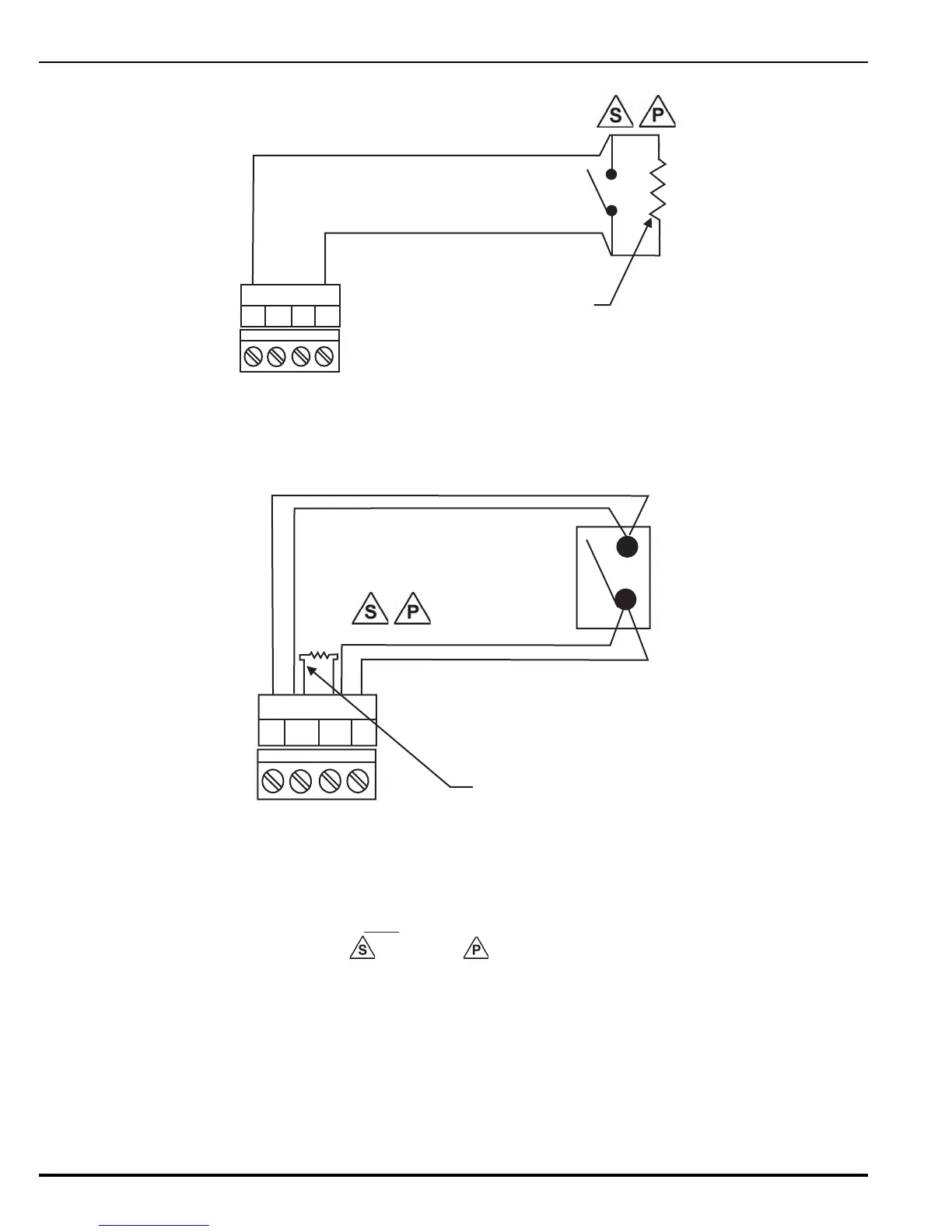

Figure 2-13C. Class B, Style B Wiring for Contact Devices
Figure 2-13D. Class A, Style D Wiring for Contact Devices
Figure 2-13. Initiating Device Circuit Wiring
1+
1-
2-
2+
EOL RESISTOR
5.1K, 0.5 W
P/N 06-129025-002
TB1, TB2, TB3, TB4,
TB5, TB6, OR TB7
1+
1-
2-
2+
TB1, TB2, TB3, TB4,
TB5, TB6, OR TB7
EOL RESISTOR
5.1K, 0.5 W
P/N 06-129025-002
SUPERVISED POWER LIMITED
LEGEND
