Kidde AEGIS 84-732001-001

Installation
P/N 06-236716-001 2-17 August 2007
2-4.3 Notification Appliance Circuit Wiring (TB17, TB18, TB19)

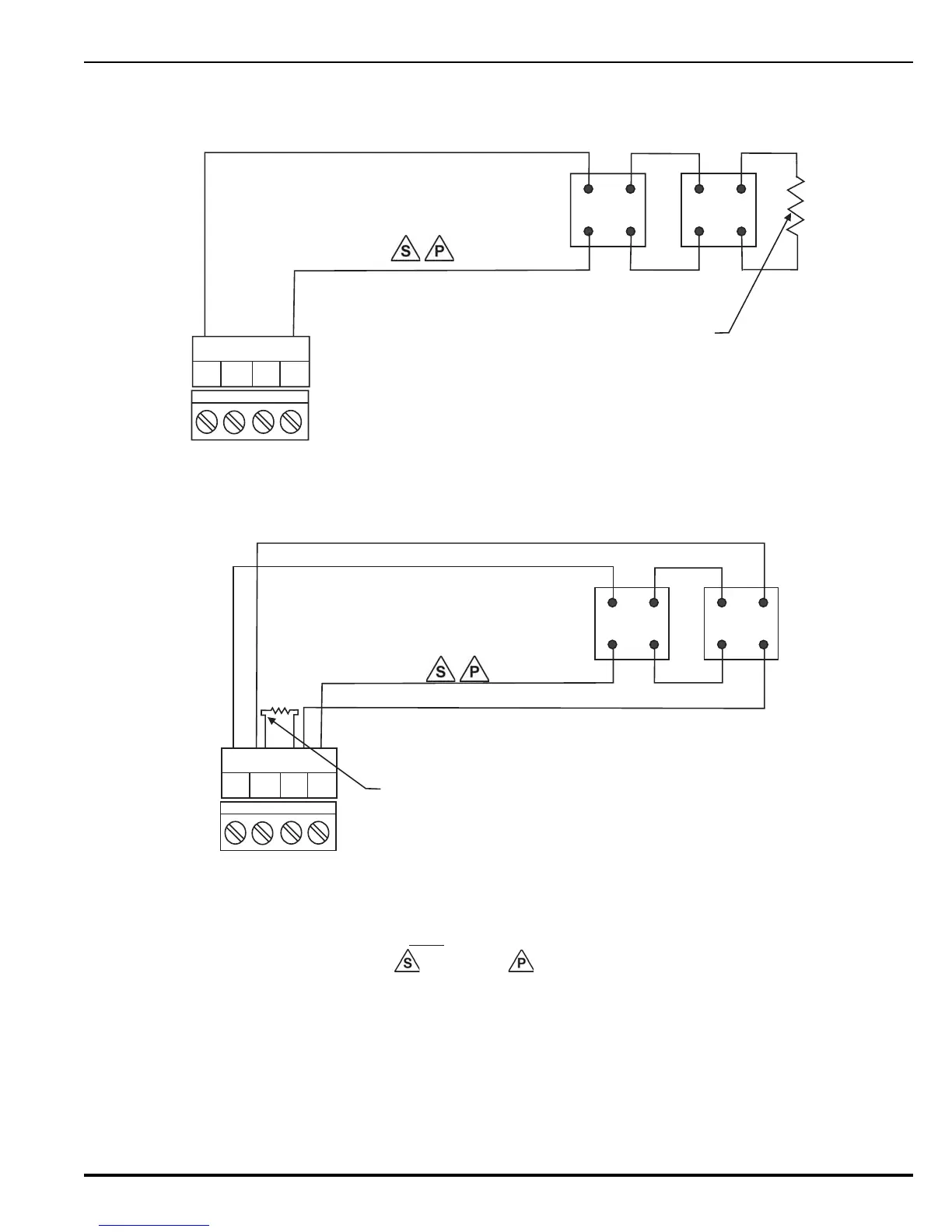

Figure 2-14 A. Class B , Style Y Notification Appliance Circuit
Figure 2-14B. Class B, Style Y Notification Appliance Circuit Wiring
Note: 1. Regulated 24 Vdc, 28 Vdc maximum.
2. Suitable for synchronized and non-synchronized notification appliances.
3. Use polarized notification appliances only.
4. Maximum single notification appliance current is 1.5A.
5. Voltage drop: 2.0 V (maximum)
Figure 2-14. Notification Appliance Circuit Wiring
EOL RESISTOR
5.1K, 0.5 W
P/N 06-129025-002
TB17, TB18, TB19
1+
1-
2-
2+
+
-
+
-
TB17, TB18, TB19
1+
1-
2-
2+
EOL RESISTOR
5.1K, 0.5 W
P/N 06-129025-002
+
-
+
-
SUPERVISED POWER LIMITED
LEGEND
