Kidde AEGIS 84-732001-001

Installation
August 2007 2-18 P/N 06-236716-001
2-4.4 Agent Releasing Circuit Wiring
Refer to Appendix B for a list of compatible listed releasing devices.

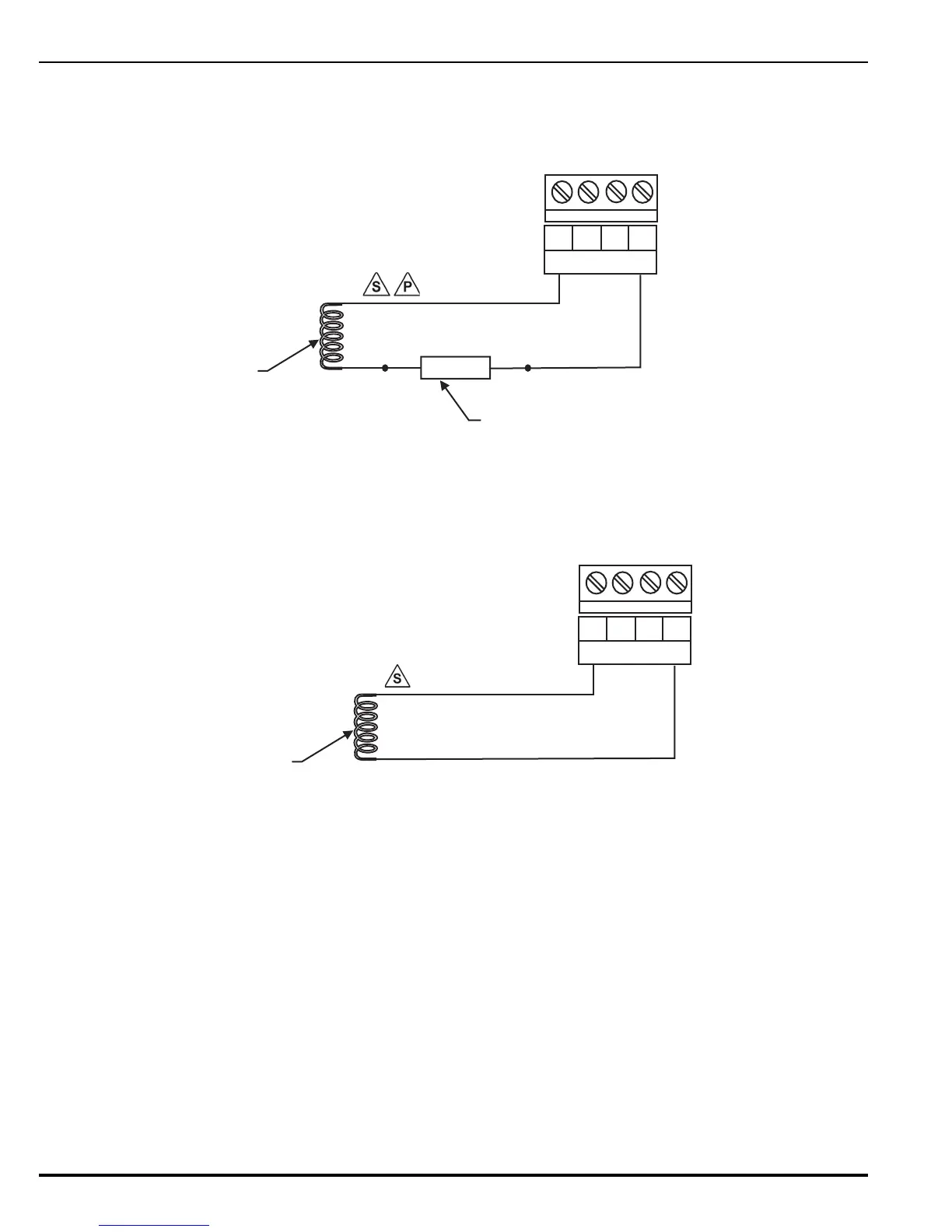

Figure 2-15A. Agent Release Circuit - Single Solenoid, Power-Limited
Figure 2-15B. Agent Release Circuit - Single Solenoid, Non-Power-Limited
BLK
RED
TB14 OR TB15
R1+
R1-
R2-
R2+
SOLENOID
P/N 06-220023-001
IN-LINE RELEASING DEVICE - MUST
BE INSTALLED CLOSE NIPPLED TO
SOLENOID ENCLOSURES
TB14 OR TB15
R1+
R1-
R2-
R2+
SOLENOID
