Kidde AEGIS 84-732001-001

Central Station Operation
P/N 06-236716-001 E-1 August 2007
APPENDIX E
CENTRAL STATION OPERATION
The Kidde AEGIS™ should be configured for Central Station operation as follows:
• One of the three (3) Programmable Relays should be configured for any alarm. For
example:
• The Trouble Relay should be set to delay AC Failure Response by a period acceptable to
the local AHJ. For example:
Refer to Chapter 3 for details on how to enter or change configuration settings.
A Silent Knight DACT Model 5104B must be wired to the control unit, as shown in Figure E-1.
Refer to the Model 5104B Installation Manual for information regarding connection of the DACT
to telephone lines for Alarm and Trouble transmission(s).
Note 1: Wiring must be installed in conduit within 20 feet.
Note 2: Central Station is not suitable for use with Canadian applications.

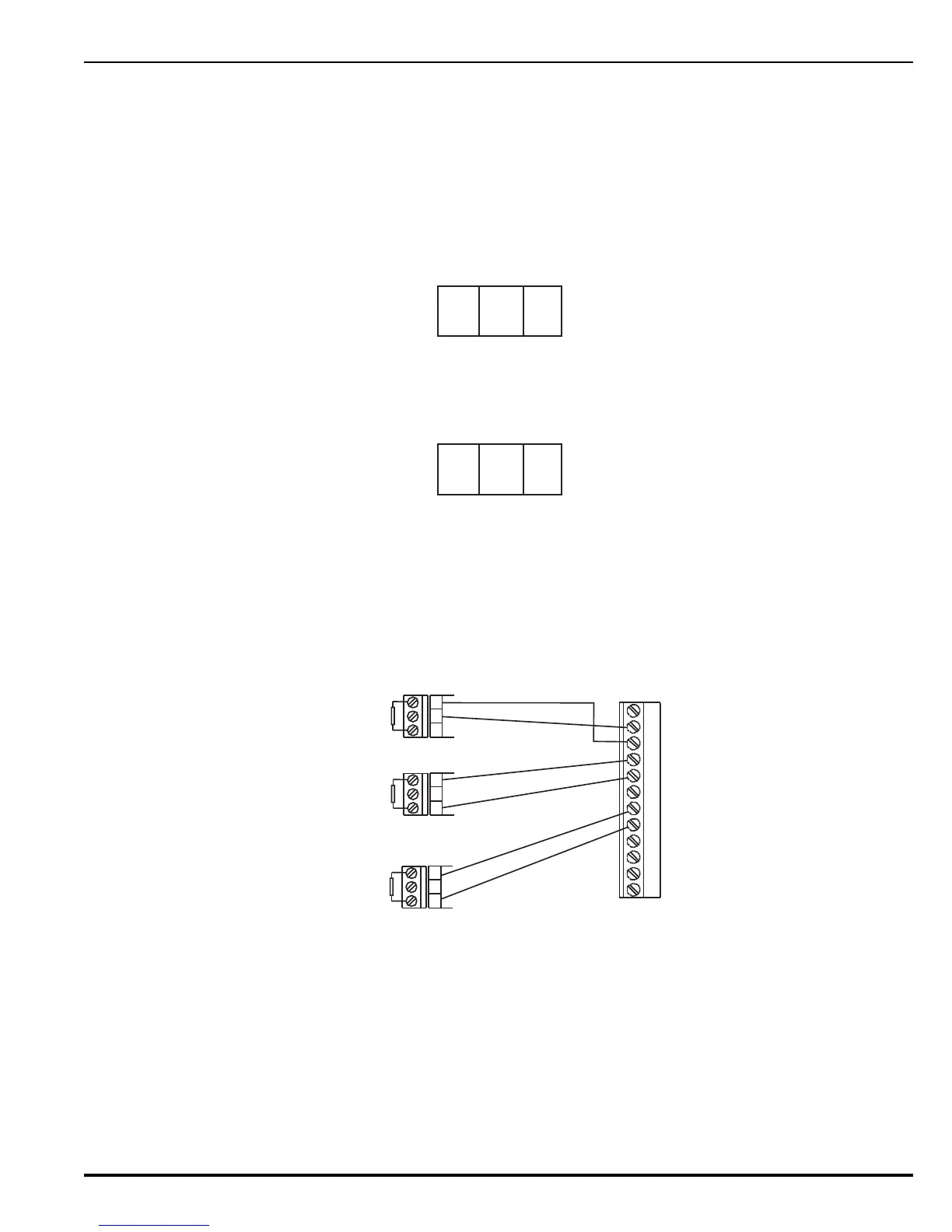

Figure E-1. Wiring for the DACT
1
1
2,
3, OR
4
1
X
15
4567891011
1
2
1
23
TB 8
PROGRAMMED FOR
GENERAL ALARM
CNCNO
4.7K
CONTROL PANEL
SILENT KNIGHT 5104B DACT
INITIATING DEVICE CIRCUITS
TROUBLE
RELAY
TB 9, TB10, or TB11
CNCNO
4.7K
PROGRAMMABLE
RELAYS
TB 9, TB10, or TB11
4.7K
PROGRAMMABLE
RELAYS
TB 9, TB10, or TB11
CNCNO
4.7K
PROGRAMMABLE
RELAYS
TB 9, TB10, or TB11
4.7K
PROGRAMMABLE
RELAYS
SUPERVISORY
