Routings for Power-Limited and Non-Power-Limited Wiring
P/N 06-236716-001 F-1 August 2007
APPENDIX F
ROUTINGS FOR POWER-LIMITED AND
NON-POWER-LIMITED WIRING
This appendix provides guidelines for power-limited and non-power-limited wiring requirements.
The following wiring requirements shall be observed:
• Power-limited and non-power-limited wiring must be physically separated within the
control-unit enclosure
• All power-limited wiring must be separated by at least 1/4-inch (6 mm) from any
non-power-limited wiring
• Power-limited and non-power-limited wiring cannot enter and exit the control-unit
enclosure through the same knockout or conduit.

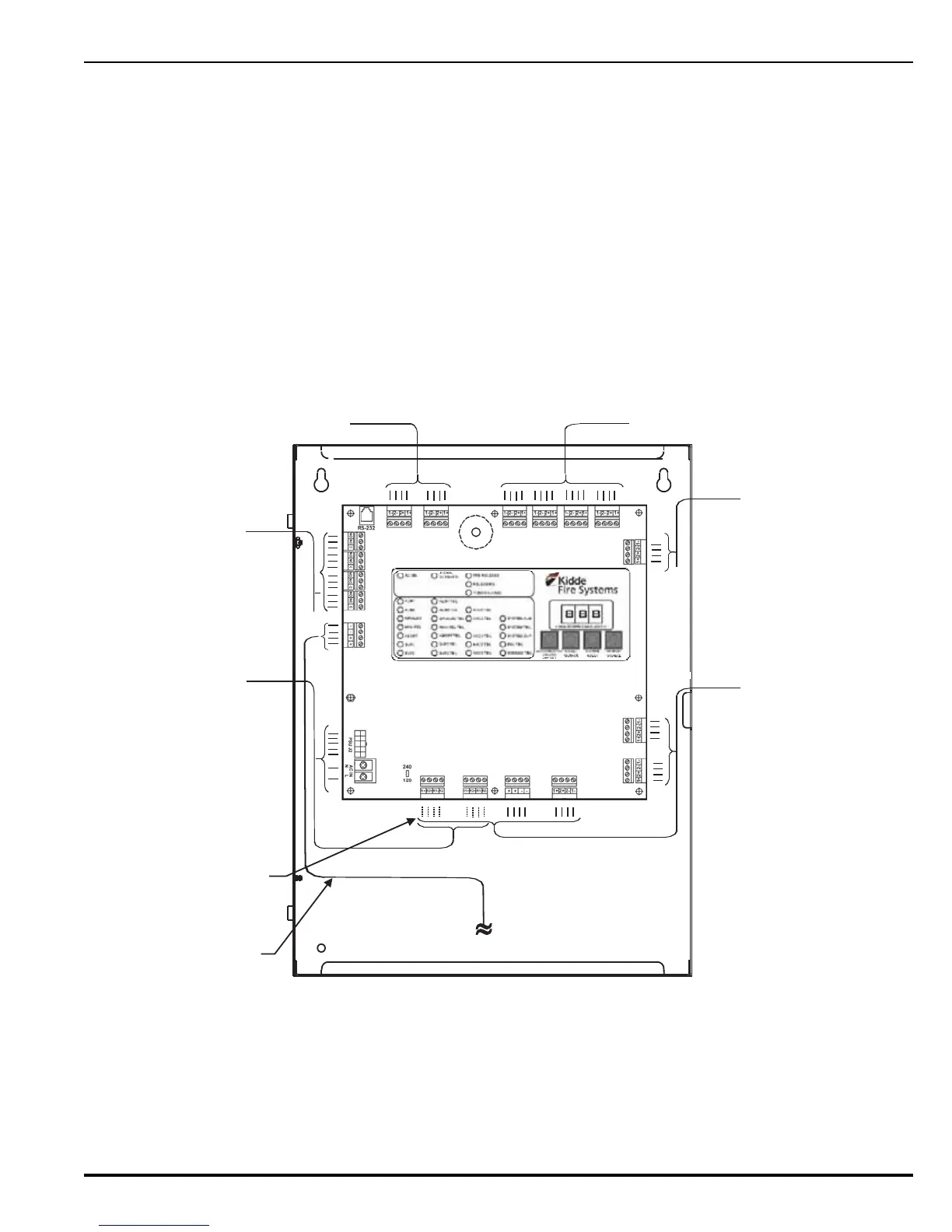

Figure F-1 shows typical wiring for power-limited and non-power-limited circuits.
Figure F-1. Power-Limited and Non-Power-Limited Wiring
TB1
TB2
TB3TB4
TB5
TB6
TB7
TB8
TB9
TB10
TB11
TB12
TB17
TB16TB15
TB14
TB19
TB18
TB13
USE LEFT-SIDE GUTTER FOR
NON-POWER-LIMITED WIRING
USE RIGHT-SIDE GUTTER FOR
POWER-LIMITED WIRING
MAINTAIN 1/4-INCH SEPARATION BETWEEN
POWER-LIMITED AND NON-POWER-LIMITED WIRING
RELEASE CIRCUITS
(TB14 AND TB15) CAN BE
WIRED AS POWER-LIMITED
OR NON-POWER-LIMITED
BATTERY WIRING
