Installation
August 2007 2-8 P/N 06-236716-001

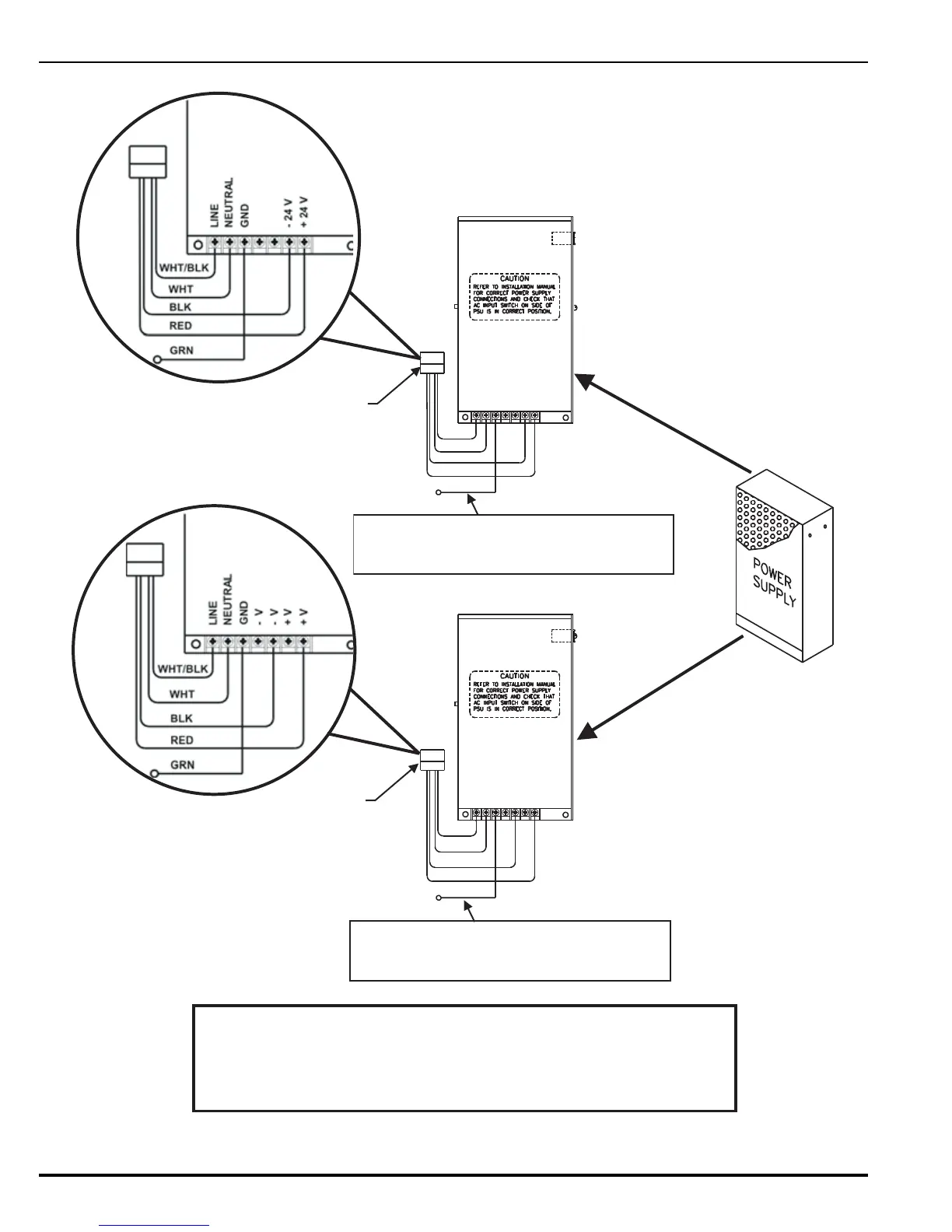

Figure 2-6. Power Supply Unit Wiring
ATTENTION!
THE CONTROL UNIT IS SUPPLIED WITH ONE OF TWO EQUIVALENT
POWER SUPPLIES. COMPARE THE TERMINAL BLOCK WIRING LEGEND
ON THE PROVIDED POWER SUPPLY WITH THE DIAGRAMS AND
CONNECT THE WIRING HARNESS AS SHOWN IN THE APPLICABLE DIAGRAM.
GND
NEUTRAL
LINE
-24V
+24V
BLK
RED
WHT/BLK
WHT
GRN
GND
NEUTRAL
LINE
+V
+V
BLK
RED
WHT/BLK
WHT
-V
-V
GRN
OR
TO PSU J2
CONNECTOR ON
PCB
CONNECT TO LOWER EARTH-GROUND STUD
ON LEFT-HAND SIDE OF ENCLOSURE
GROUND WIRE FROM INSTALLATION KIT
CONNECT TO LOWER EARTH-GROUND STUD
ON LEFT-HAND SIDE OF ENCLOSURE
GROUND WIRE FROM INSTALLATION KIT
TO PSU J2
CONNECTOR ON
PCB
