Dio_Simulate (IO simulation) is for the software to simulate inputting of a valid signal. ―1‖ indicates that
the input signal is valid, and ―0‖ indicates that the input signal is invalid.

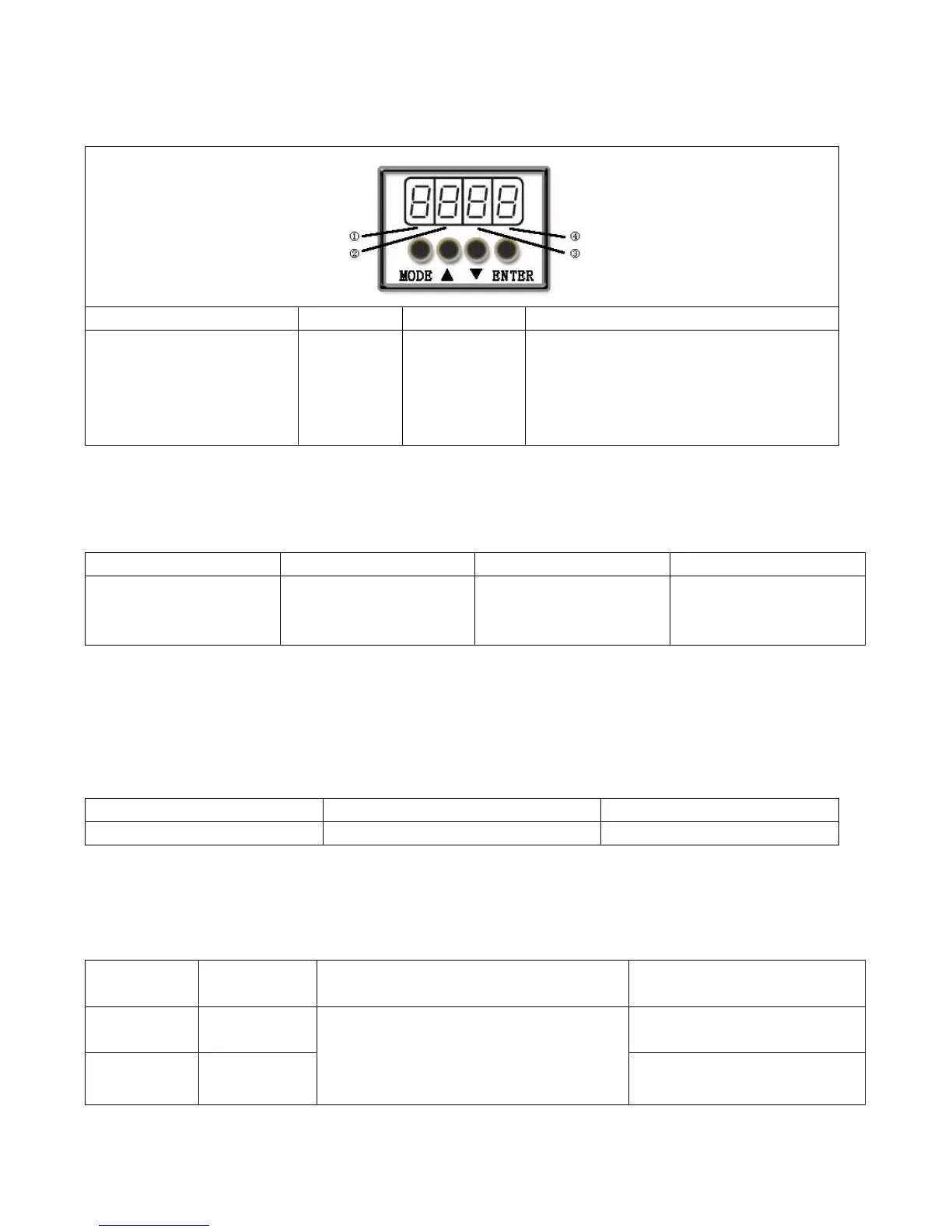

Table 6-5 Settings on simulation of digital input signals
①
②
③
④
Input/output port selection
0: output port
1: input port
Channel
selection
Input: 1-7
Output: 1-5
Reserved
0: No input signal is simulated, and no
output signal is compulsorily outputted
1: Input signal is simulated, and output
signal is outputted compulsorily
Other: Check the current status
Example 6-2: Simulate digital input DIN1
Table 6-6: Simulate digital input DIN1
①
②
③
④
Input/output port selection
Set to 1 (input port
selected)
Channel selection
Set to 1 (DIN 1 selected)
Reserved
0: Invalid DIN1 simulation
1: Valid DIN1 simulation
Namely, if d3.09 is set to ―110.0‖, it indicates that no DIN1 input signals are simulated; if d3.09 is set to ―110.1‖,
it indicates that DIN1 input signals are simulated.
6.1.3 Status Display of Digital Input Signals
Table 6-7 Variables for status display of digital input signals
Numeric Display
Variable Name
Meaning
d1.11
Din_Status
Status of input ports
Din_Status (hexadecimal) is used to display the status of the actually input external signals in real time.
6.1.4 Addresses & Functions of Digital Input Signals
Table 6-8 Addresses & default functions of digital input signals
Numeric
Display
Variable
Name
Meaning
Default Value
d3.01
Din1_Function
000.0: Disable
000.1: Driver enable
000.2: Driver fault reset
000.4: Operation mode control
000.1 (Driver enable)
d3.02
Din2_Function
000.2 (Driver fault reset)
