Kinco CD430 - Wiring in Analog - Speed Mode; Parameters for Analog - Speed Mode

52

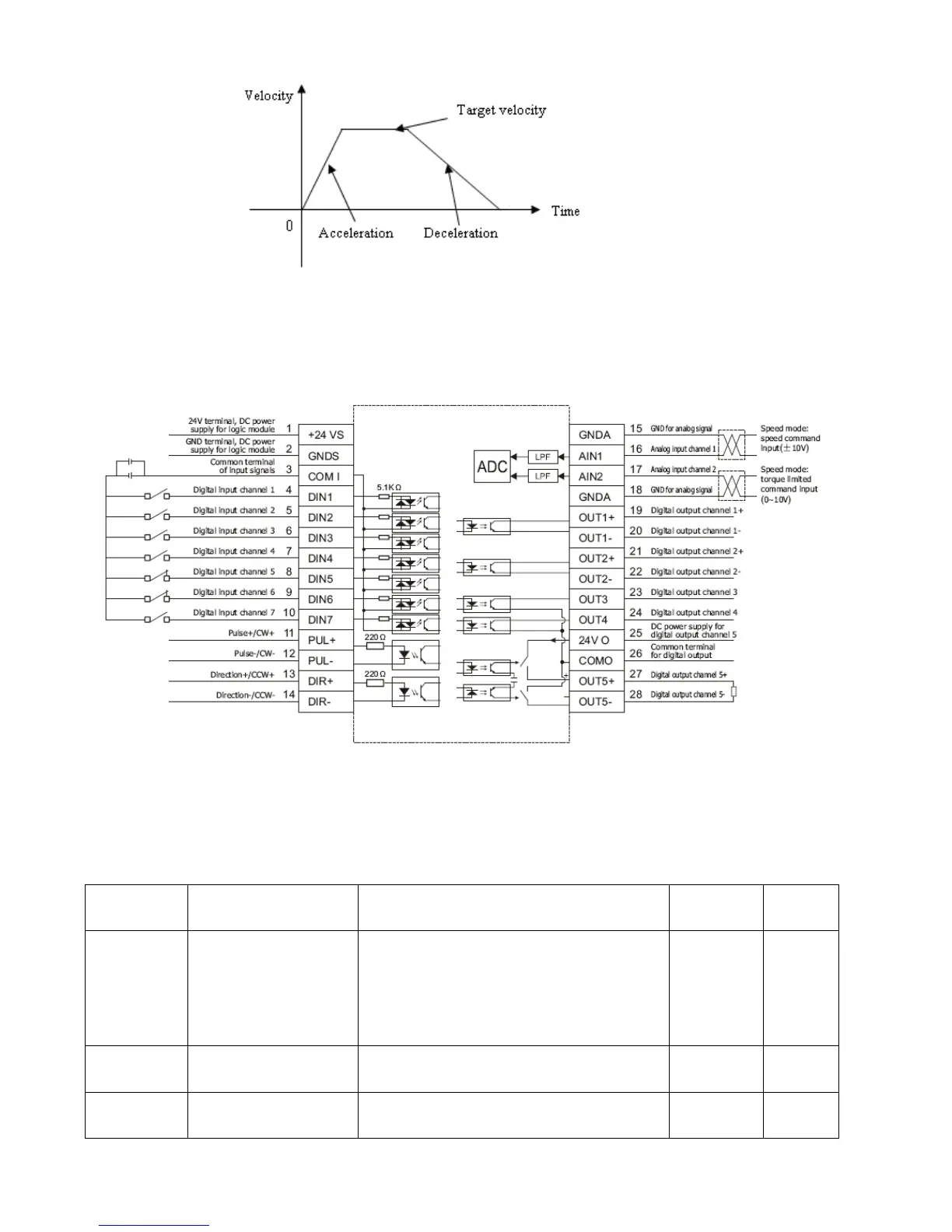

Fig. 7-4 The speed mode ―3‖ with acceleration/deceleration
7.2.1 Wiring in Analog – Speed Mode
Fig. 7-5 Interfaces in analog –speed mode
7.2.2 Parameters for Analog – Speed Mode
Table 7-9 Parameters for analog – speed mode
Numeric
Display
Variable Name
Meaning
Default
Value
Range
d3.22
Analog1_Filter
Used to smooth the input analog signals.
Filter frequency: f=4000/(2π*
Analog1_Filter)
Time Constant (T) = Analog1_Filter/4000
(S)
5
1~127
d3.23
Analog1_Dead
Sets dead zone data for external analog
signal 1
0
0~8192
d3.24
Analog1_Offset
Sets offset data for external analog signal 1
0
-8192~8
192
