Kinco CD430 - Torque Mode (4 Mode); Wiring in Analog - Torque Mode; Parameters for Analog - Torque Mode

62
7.3 Torque Mode (“4” Mode)
7.3.1 Wiring in Analog – Torque Mode

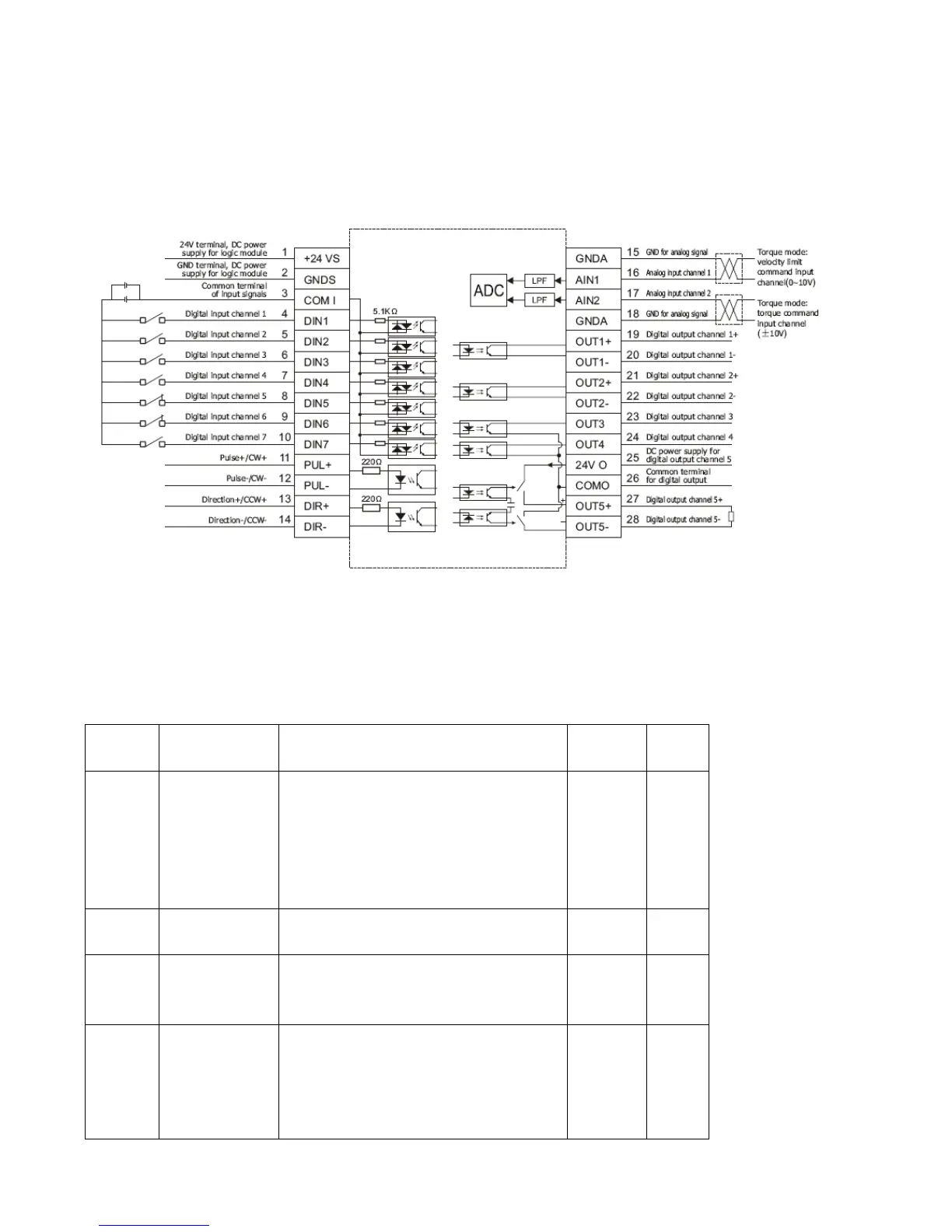

Fig. 7-11 Interfaces in analog – torque mode
7.3.2 Parameters for Analog – Torque Mode
Table 7-16 Parameters for analog – torque mode
Numeric
Display
Variable Name
Meaning
Default
Value
Range
d3.22
Analog1_Filter
Used to smooth the input analog
signals.
Filter frequency: f=4000/(2π*
Analog1_Filter)
Time Constant: τ = Analog1_Filter/4000
(S)
5
1~127
d3.23
Analog1_Dead
Sets dead zone data for external analog
signal 1
0
0~819
2
d3.24
Analog1_Offse
t
Sets offset data for external analog
signal 1
0
-8192
~8192
d3.25
Analog2_Filter
Used to smooth the input analog
signals.
Filter frequency: f=4000/(2π*
Analog1_Filter)
Time Constant (T) =
5
1~127
