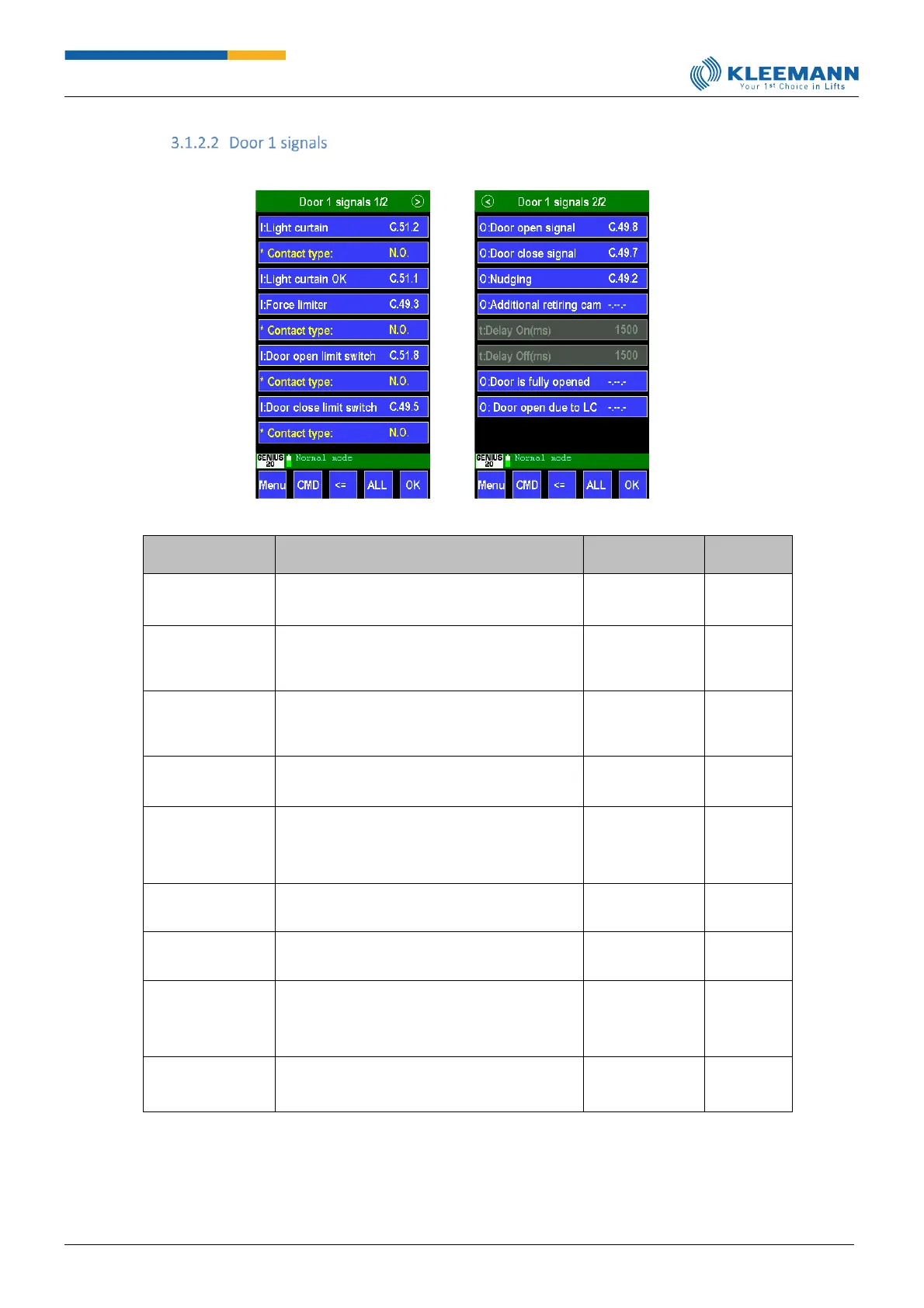

Kleemann GENIUS20 - Page 63

63
MA06-03-1-01
Menu
[Direct access: CMD -> 7042 -> 7169]
Parameter
[Direct access]
Description
Default value
Value
Range
I:Light curtain
Definition of the input for evaluating the light
curtain signal.
*Contact type
Selection whether the light curtain signal is
based on a N.O. or a N.C. contact.
N.O./N.C.
I:Light curtain OK
Definition of an input to monitor the function
of the light curtain according to EN81-20. A NO
contact (N.O.) is provided here.
I:Force limiter
Definition of the input for evaluating the
closing force limiter signal.
C.49.3 (door 1)
C.50.3 (door 2)
*Contact type
Selection whether the force limiter signal is
based on a N.O. or a N.C. contact.
N.O./N.C.
I:Door open limit
switch
Definition of the input for evaluating the door
open limit switch.
C.49.6 (door 1)
C.50.6 (door 2)
*Contact type
Selection whether the door open limit switch
signal is based on a N.O. or a N.C. contact.
N.O./N.C.
I:Door close limit
switch
Definition of the input for evaluating the door
close limit switch. For an installed switch, the
following addresses apply: C.49.4 (door 1),
C.50.4 (door 2).
C.49.5 (door 1)
C.50.5 (door 2)
*Contact type
Selection whether the door close limit switch
signal is based on a N.O. or a N.C. contact.
N.O./N.C.
