Wiring N°2 and N°3: Klereo Salt Chlorinator and Kle reo Therm
In that case, there are 2 possibilities to connect the Klereo Therm. Matching procedure will
remain the same in both wiring cases.

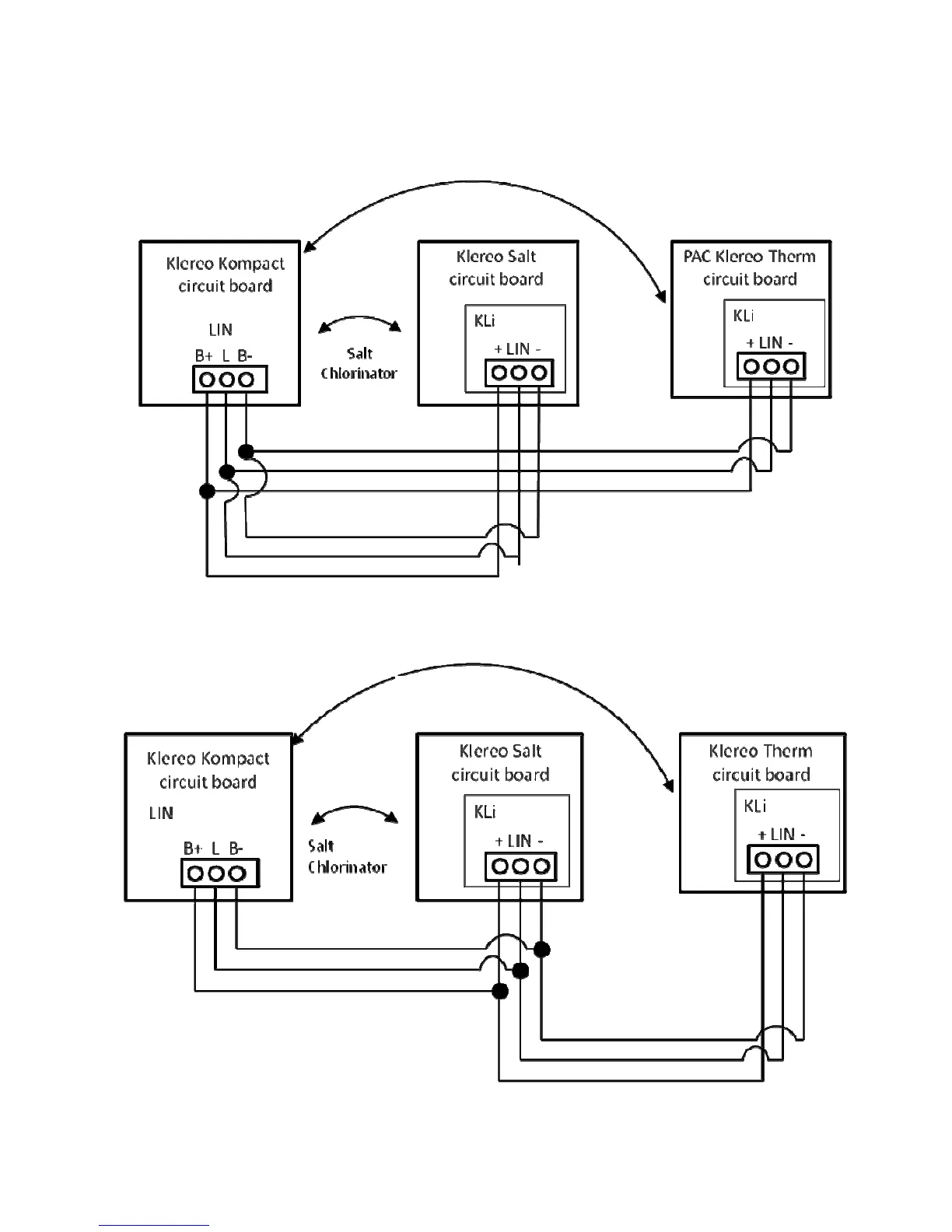

Figure 53. Klereo Therm n°2 wiring solution with a Klereo Salt Chlorinator
Figure 54. Klereo Therm n°3 wiring solution with a Klereo Salt Chlorinator
Heating pump
Heating pump
