SECTION 10
RECIRCULATION SYSTEM
Jan 2003
Page 10-6
05114657

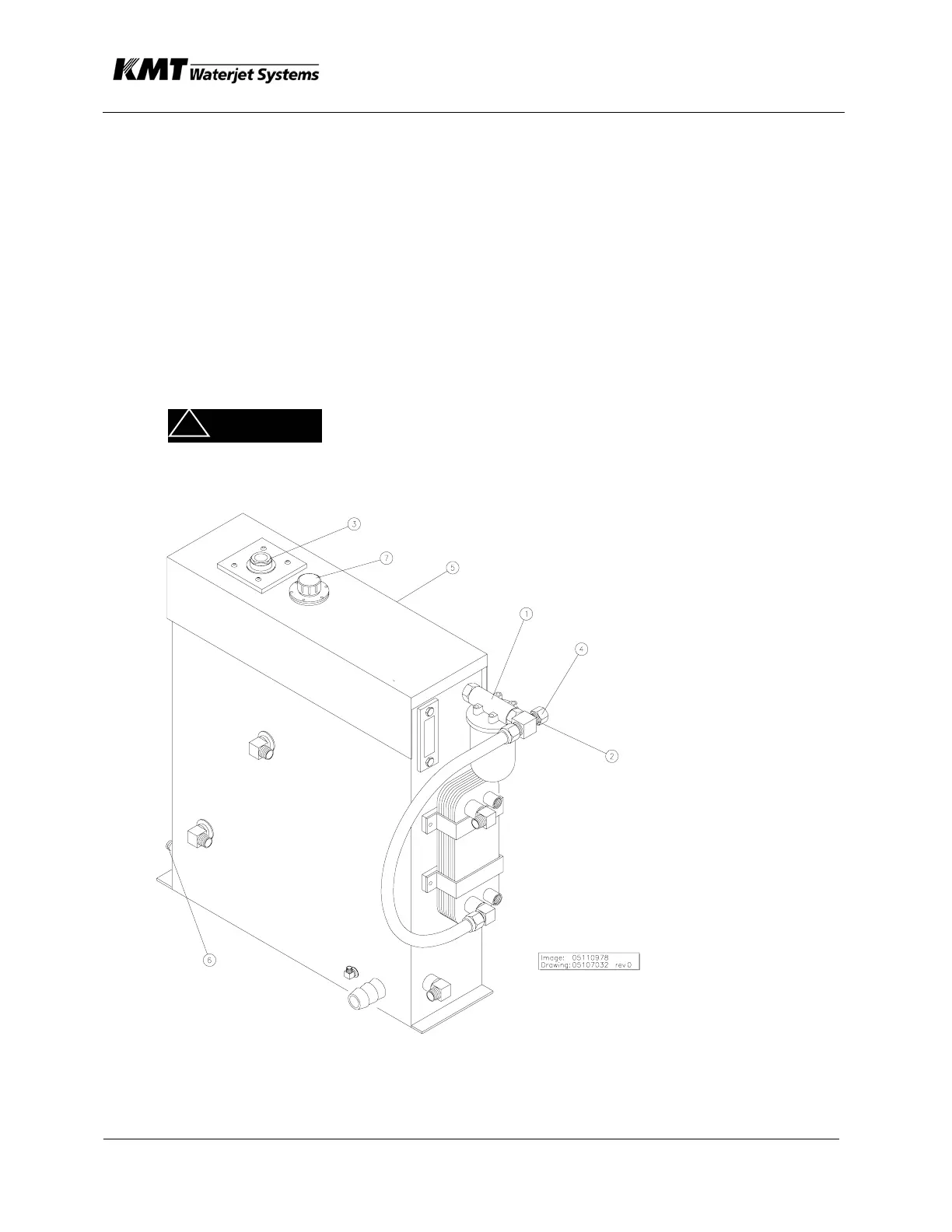

Oil Tank
The oil tank is equipped with the following:
• Visual temperature and level indicator
• Air breather and filter that prevents dirt from being sucked into the tank
whenever the oil level drops, then allows air to escape when the level rises
• Drain valve, and
• Fill components.
The fill components consists of the Oil Filter Head, Fill Port, and the Fill Port
Cap.
The breather is not a fill component, and must not be used
as a fill point.
Item Description
(1) Filter Assembly
(2) Oil Fill Port
(3) Temperature Sensor
(4) Oil Fill Port Cap
(5) Oil Tank Cover
(6) Shut-Off Valve
(7) Breather
ARNING
!
