24
3. Description
3.4.4 Coolant Pump
The grinding machine has a coolant pump (3-8/1)
with monitoring function.
The coolant pump becomes visible when the right
door on the rear side of the machine is opened.
The coolant container sunk in the water tray must
be filled with water up to 3 cm below the rim (ap-
prox. 15 liters). A coolant additive is not required.
The grinding machine has a flow gage (3-9/1)
which automatically interrupts the program flow if
there is no coolant flow.
The flow gage is in the machine interior and must
be cleaned regularly.
The coolant volume is regulated using the coolant
tap (3-10/1).
NOTICE
Turning down the tap too far interrupts the
program flow.

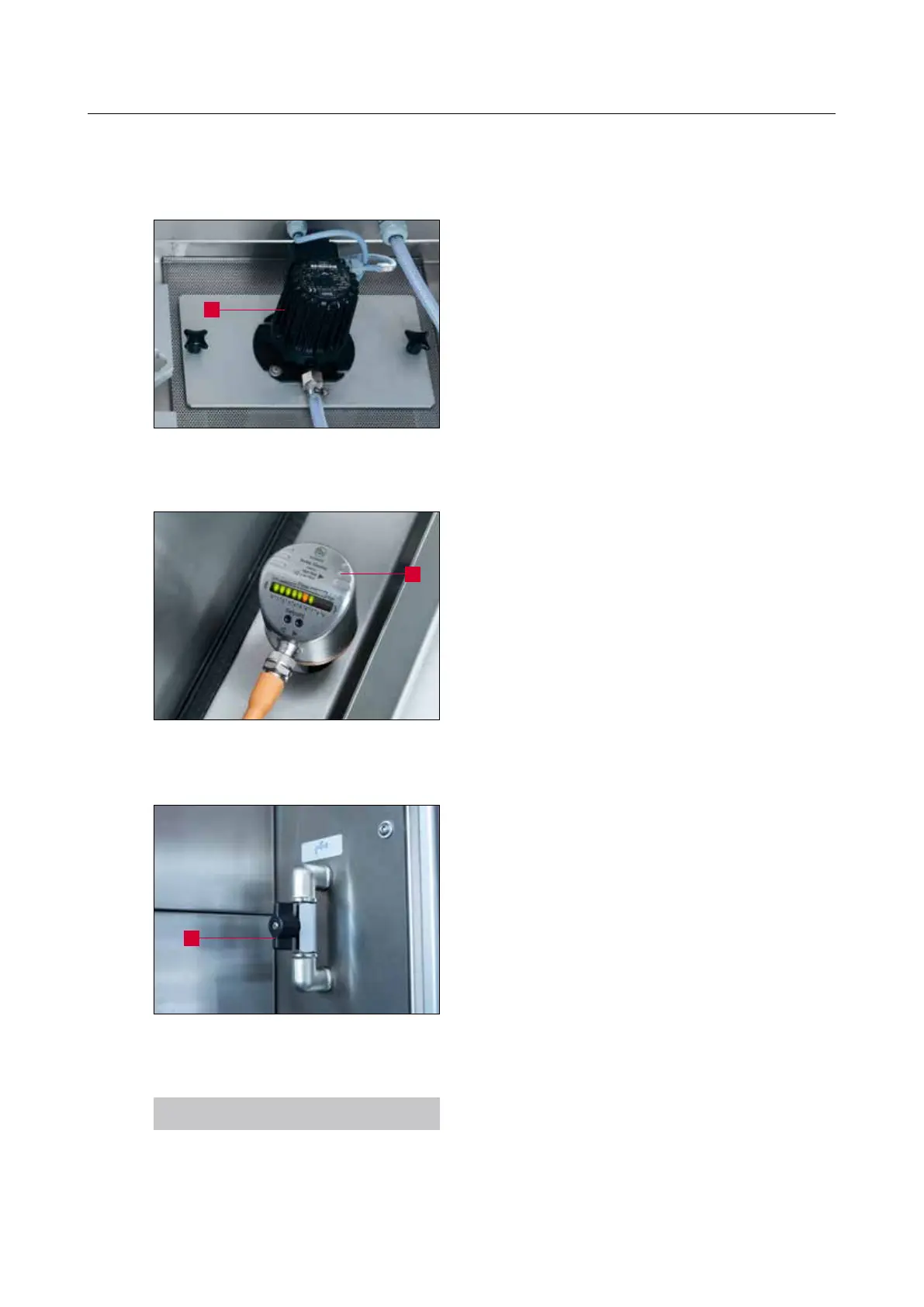

Figure 3-9 Flow gage
Figure 3-10 Coolant tap
Figure 3-8 Coolant pump
1
1
1
