All work on the machine may only be performed by authorized
personnel.
The locally applicable safety and accident prevention regulations must be
observed.
CAUTION
Fill the water tray (6-1/1) with water.
Connect the power plug to the power socket provided on site (3x 400 V, 16 A).
Plug in the compressed air hose at the compressed
air port (6-2/1).
Turn the control knob (6-2/2) to adjust the pres-
sure to 6.5 bar.
Close the belt protective hood (3-2/1), rear doors
(3-2/4) and protective hood (3-2/9).
Set the main switch (3-5/1) to “I”. Wait for the
controls to initialize.
Switch on the control unit with the “Control On”
button (6-3/1).

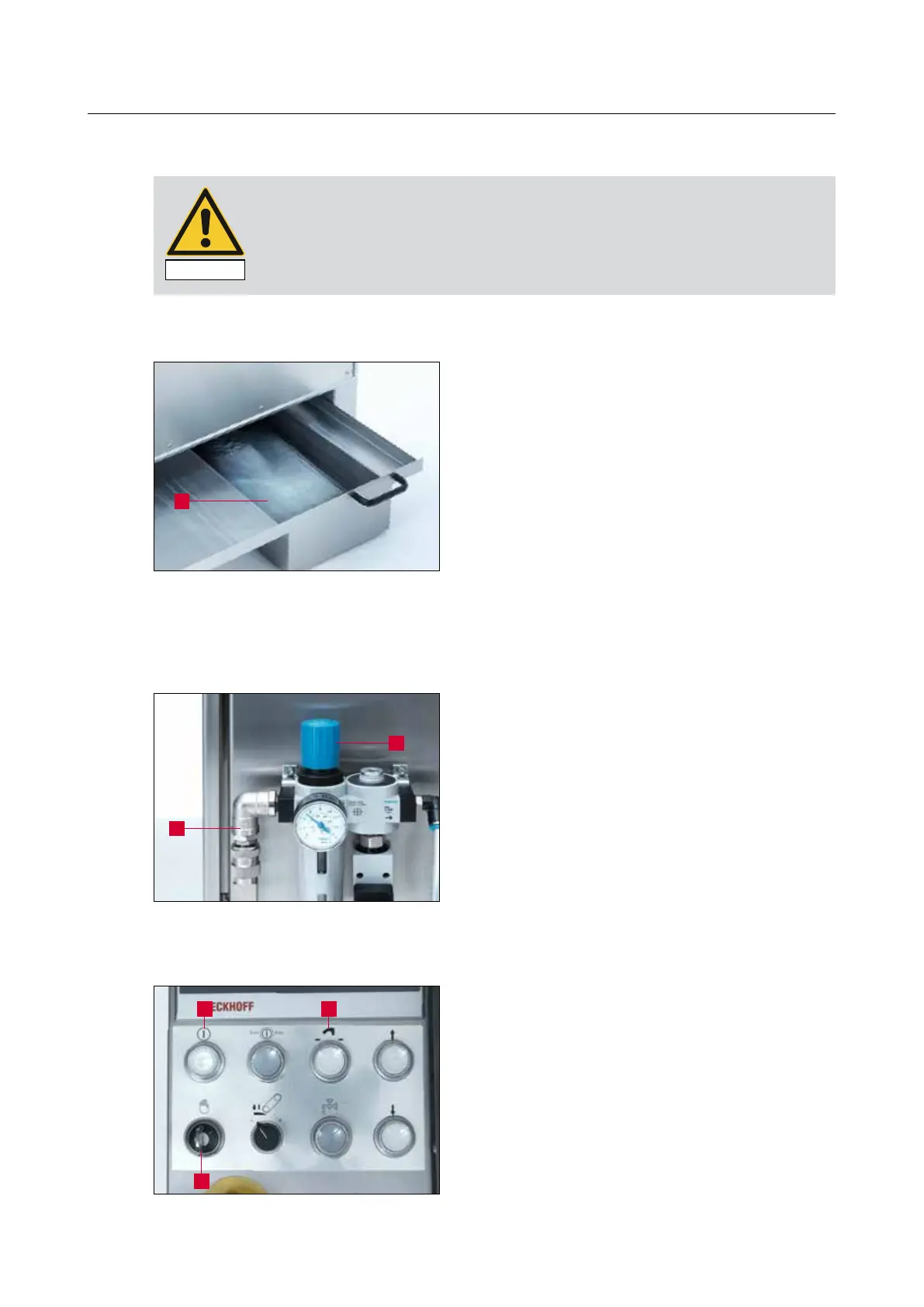

6. Commissioning
Figure 6-1 Water tray
1
Figure 6-2 Compressed air port
Figure 6-3 Control panel
2
1
