KNECHT B 500 - Meaning of Feed Cycles Parameter

54
8. Control system
8.4.2 Meaning of “Feed Cycles” parameter
1 “Number of Cycles”: Number of cycles in a particular step; the step is not carried out if the
value is “0”.
2 “Feed”: Path that the knife covers to the next step after completing processing of the
previous step (in mm)
NOTICE
The above parameters refer to the 2nd - 10th
step.
To change the parameters, tap on the relevant
button highlighted in yellow.
A window (8-16) opens when you click “Num-
bers”.

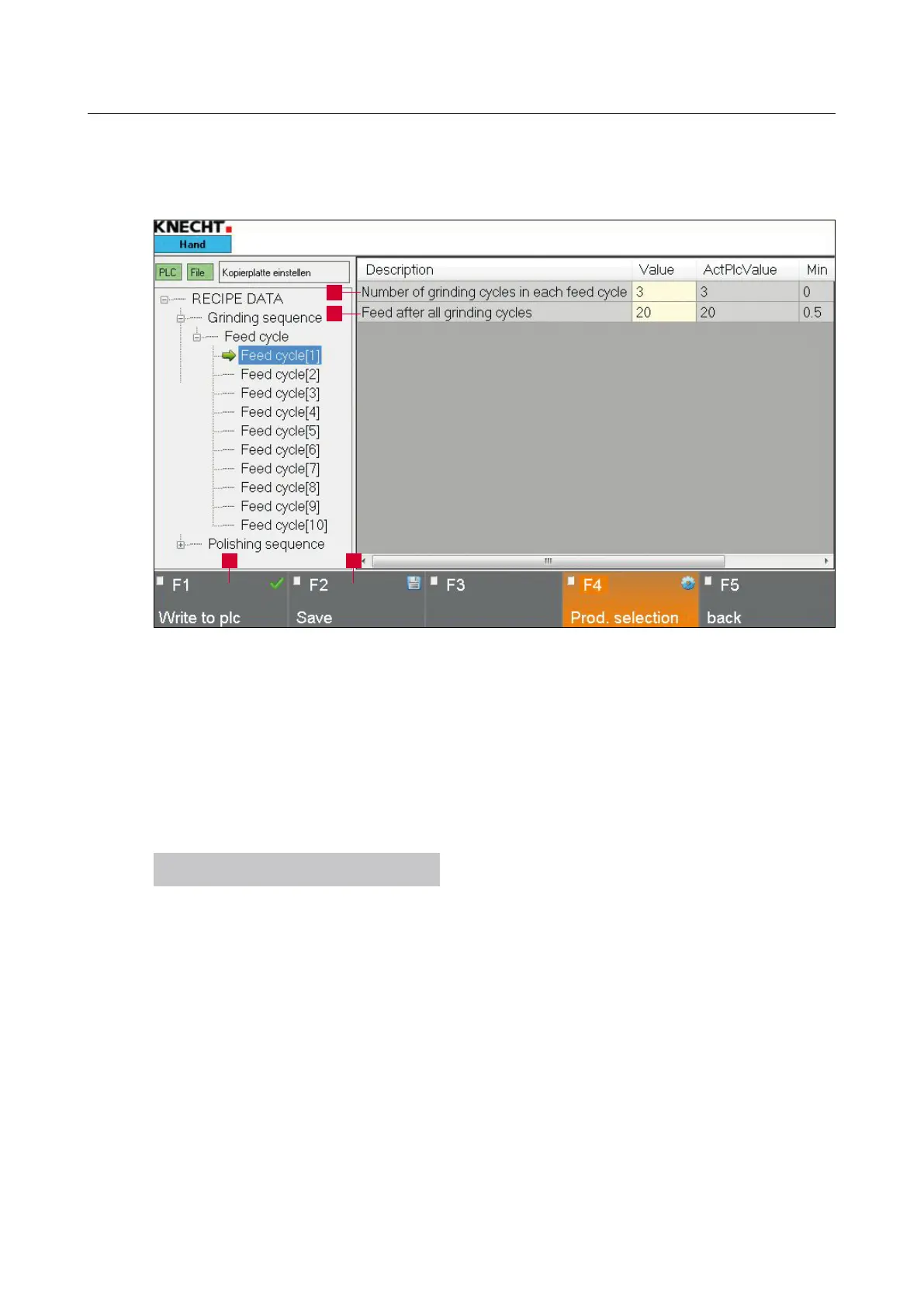

Figure 8-15 “Feed cycles” parameter
1
2
3 4
