8. Control system
8.6 Manual Functions
The manual functions allow you to operate the machine by hand. They are called via the main
menu “F4 Menu” (8-1/16) followed by “F3 Manual Functions”. Various functions of the machine
can be individually activated / deactivated.
ATTENTION
Buttons highlighted in green are enabled.
Buttons highlighted in gray are disabled.
1 Switch the suction system on / off
2 Switch coolant pump on / off
3 Water deflector Up / Down
4 Copy clamping plate Raise / Lower
5 “F5 back”: Takes you back to the previous screen

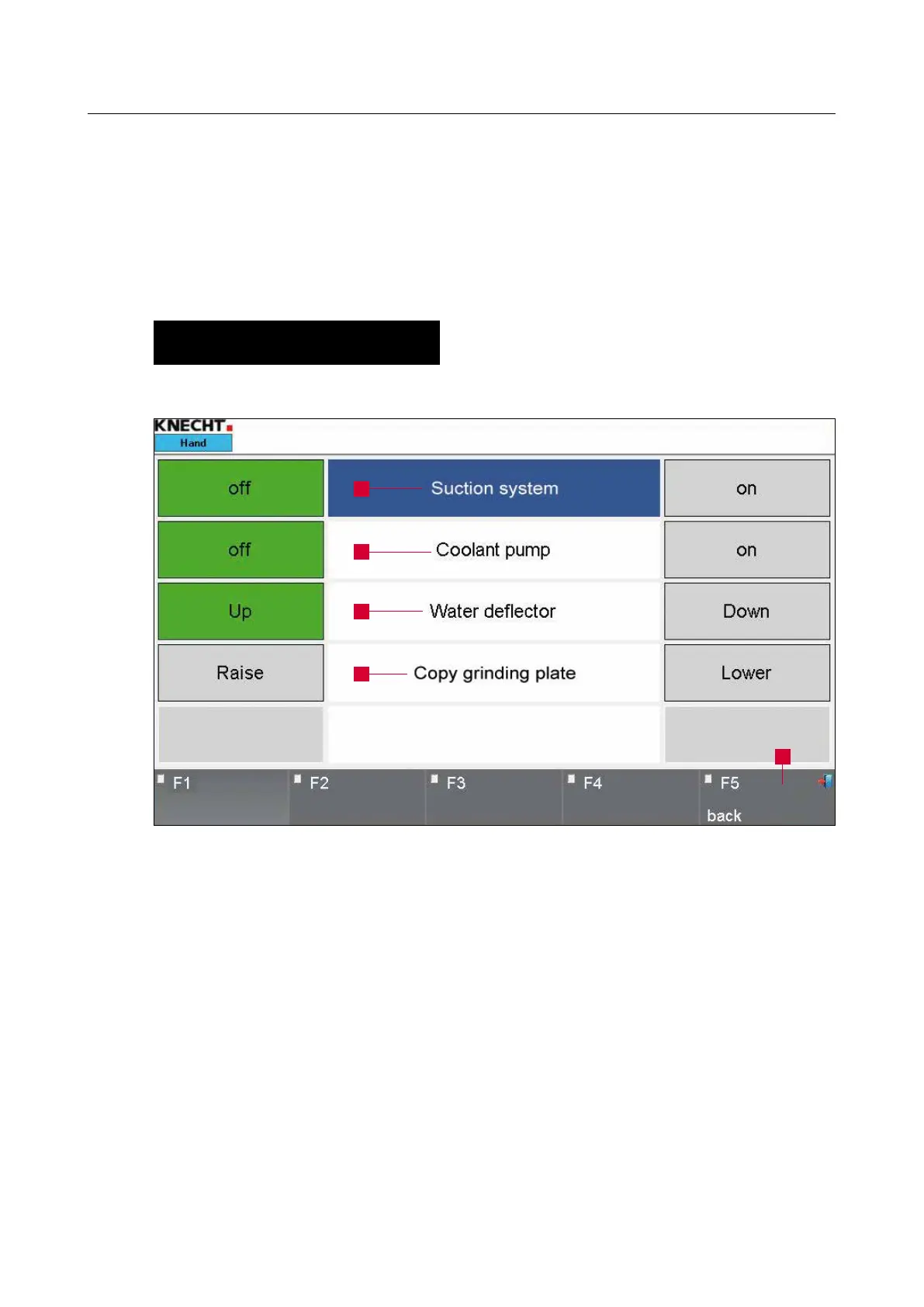

Figure 8-22 Manual functions
1
2
3
4
5
