42
Push the copy clamping plate (7-16/1) as far as it
will go onto the ball bearings of the guide carriage
(7-16/2) while pressing against the limit stop with
the right hand.
Press and hold the “Change copy clamping plate”
button (7-15/2) until the copy clamping plate has
moved 2 - 3 cm.
With the pin in front, push the limit switch cam
(7-14/1) under the copy clamping plate and tight-
en the star knob (7-14/2).
NOTICE
If the copy clamping plate has not been
inserted properly, push it in by hand.
7. Operation

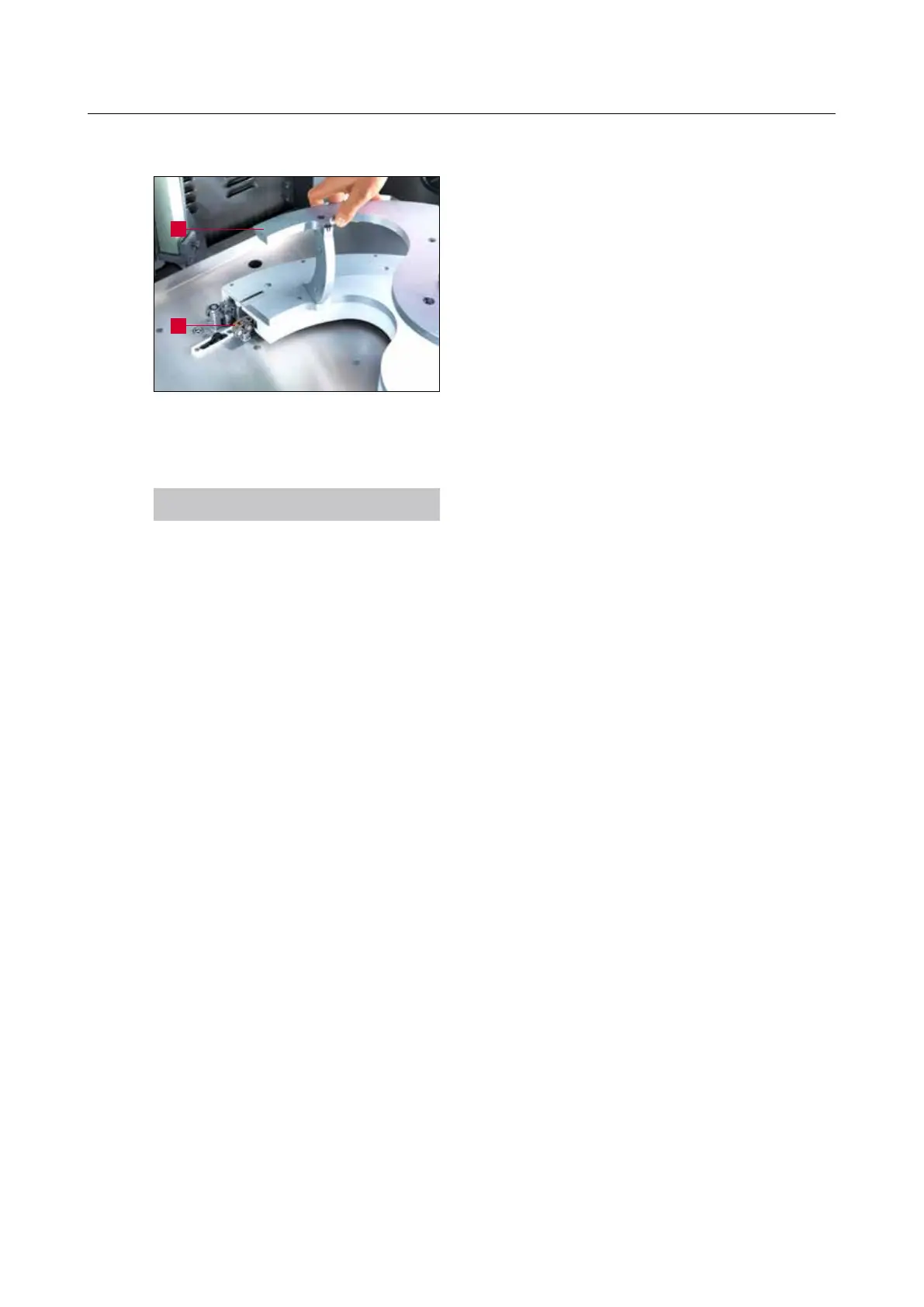

Figure 7-16 Pushing the copy clamping plate
onto the guide carriage
2
1
