9 Expansions
You can find information about availability and order numbers on page 161.
9.1 Expansion cards for slot 1
9.1.1 Guide to installation of expansion cards in slot 1
S701x2-S724x2 Instructions Manual 125
Kollmorgen 07/2014 Expansions

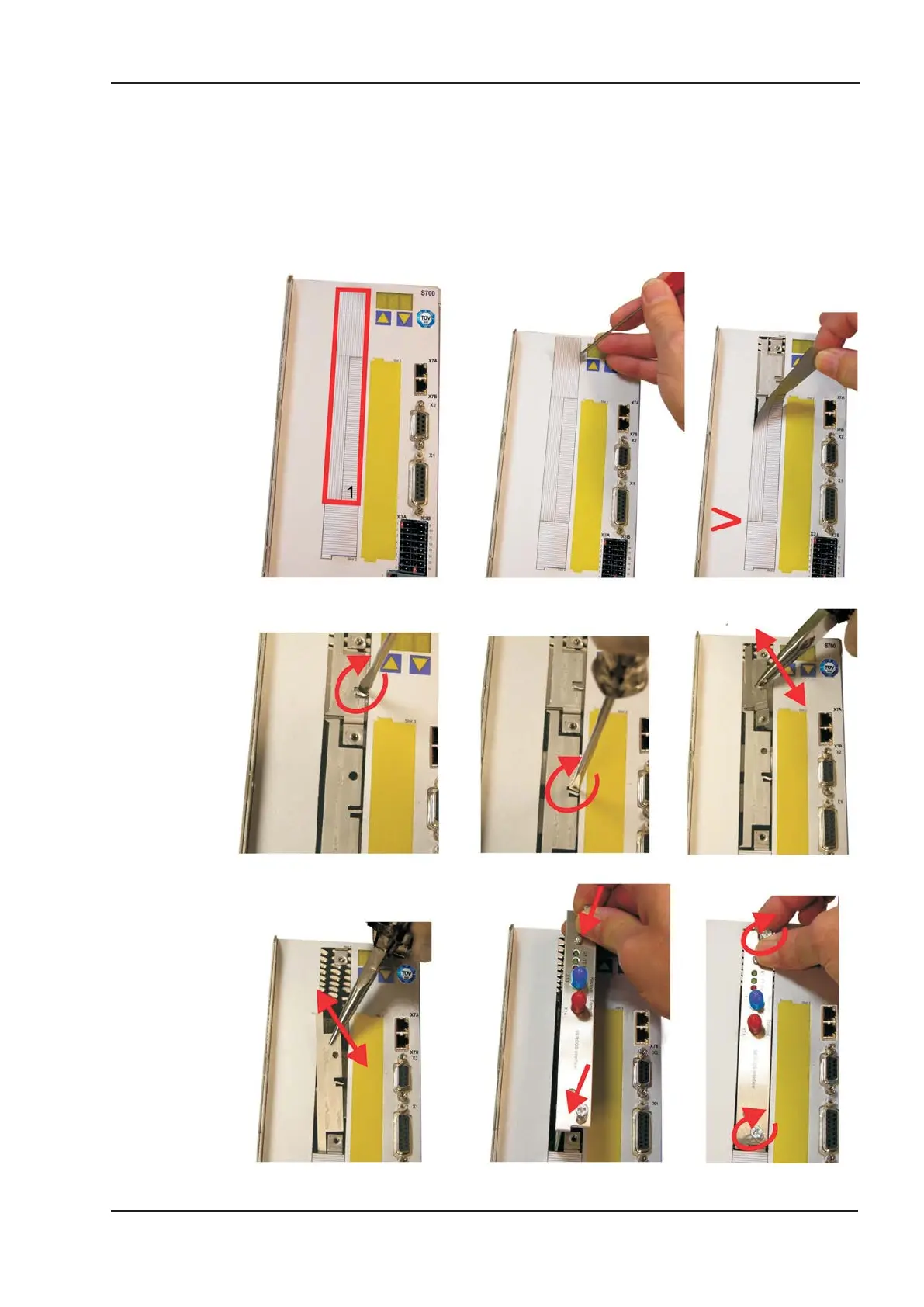

1 - Boundary of SLOT1
2 - Detach the film (at the per-
forations)
3 - Tear off the film (as far
as the mark)
6 - Pull out the top plate
5 - Break the bottom rib
4 - Break the top rib
9 - Fasten the screws
8 - Push in the card
7 - Pull out the bottom plate
