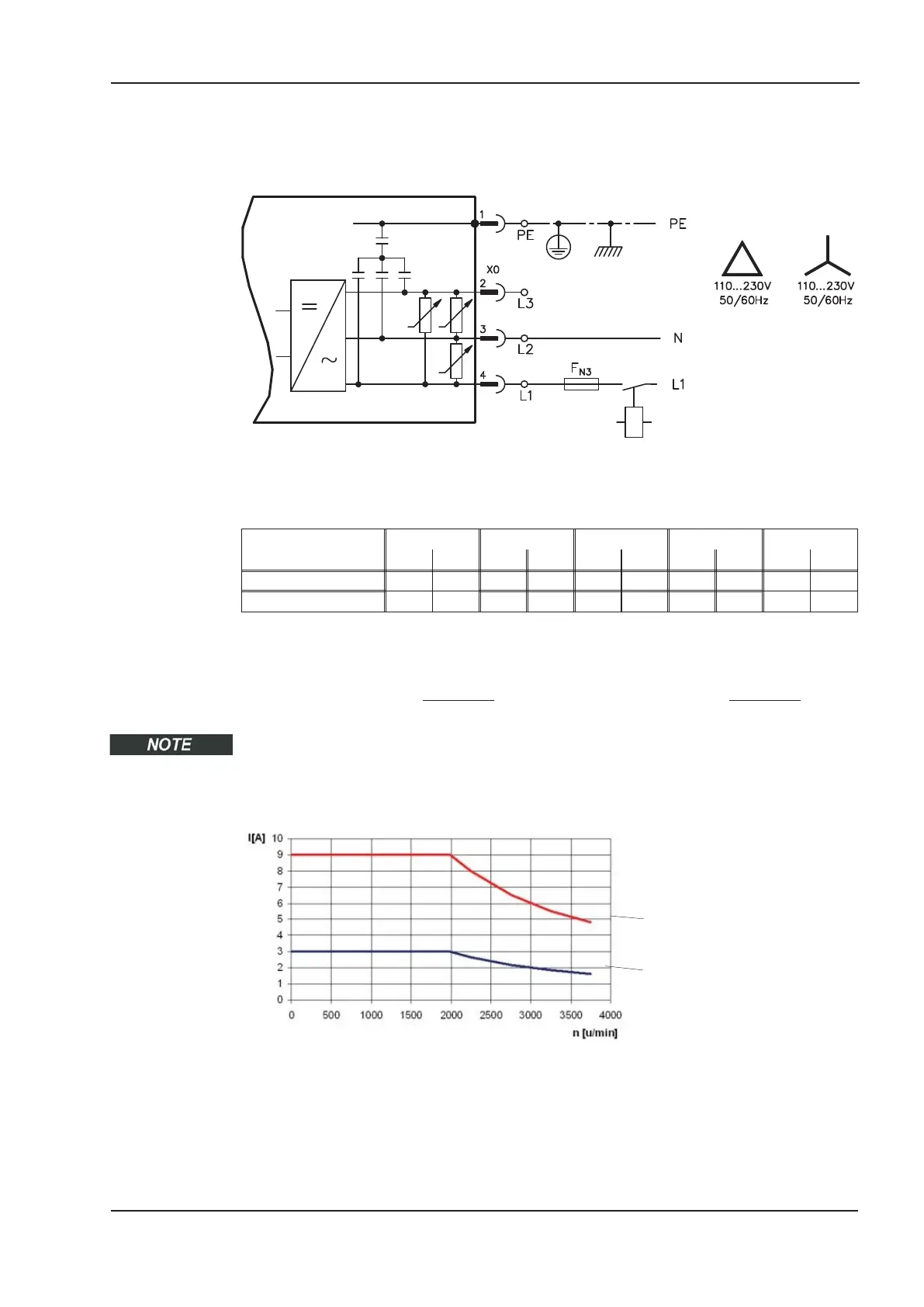

7.8.5 Mains supply connection (X0), single phase with neutral
The S700 with 230V version (S7xx6) can be operated with a single phase mains supply.
In single phase operation the electrical power of the amplifier is limited.
The table below shows the maximum rated power (Pn) and peak power (Pp) with single
phase operation:
max. electrical
power
S7016 S7036 S7066 S7126 S7246
Pn/W Pp/W Pn/W Pp/W Pn/W Pp/W Pn/W Pp/W Pn/W Pp/W
VBUSBAL0 (110V)
200 400 400 400 800 800 950 950 1300 1300
VBUSBAL1 (230V)
400 1200 800 2400 1600 3200 2200 3300 3000 3500
The maximum possible current depends on the motor torque constant k
T
and on the
maximum speed of the connected motor:
Continuous currrent:
I
P
kn
rms
n
T
=
×
×× ×
60
2 p
peak current:
I
P
kn
peak
p
T
=
×
×× ×
60
2 p
Speed can be limited with the ASCII parameter VLIM to reach the necessary current for
the required torque.
With a special motor type (k
T
= constant depending on the motor type) the possible out-
put current depending on speed is similar to the diagram below:
S701x2-S724x2 Instructions Manual 69
Kollmorgen 07/2014 Electrical installation
S7xx6
Ipeak
Irms
