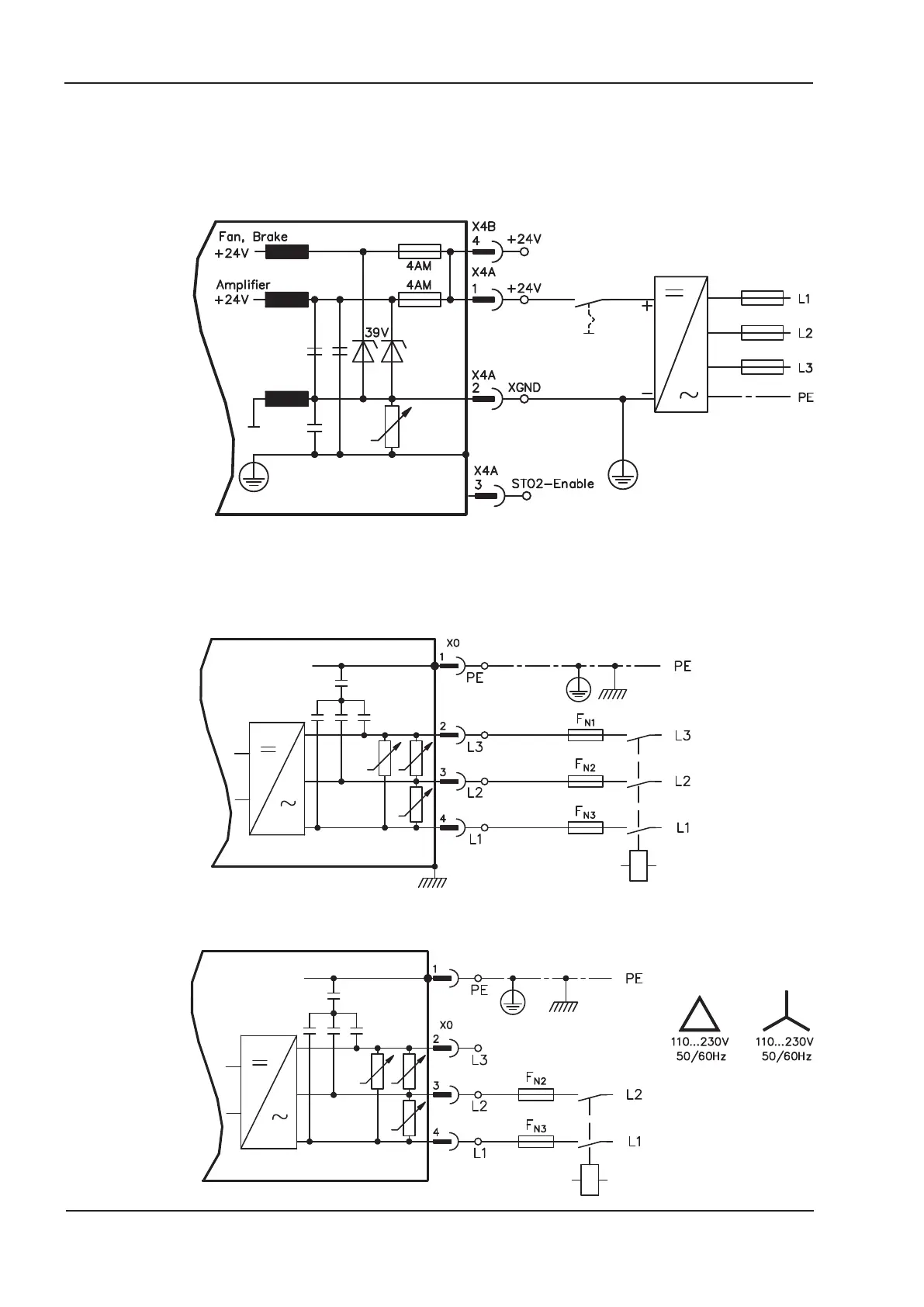

7.8.2 24V auxiliary supply (X4)
— External 24V DC power supply, electrically isolated, e.g. via an isolating transformer
— Required current rating ð p.28
— Integrated EMC filter for the 24V auxiliary supply
7.8.3 Mains supply connection (X0), three phase
— Directly to 3-phase supply network, filter is integrated, supply networks ð p.66
— Fusing (e.g. fusible cut-outs) to be provided by the user ð p.30
7.8.4 Mains supply connection (X0), two phase without neutral
