7.3.3 Technical data for connecting cables
For further information on the chemical, mechanical and electrical characteristics of the
cables please refer to the accessories manual or contact our customer service.
Observe the rules in the section "Conductor cross-sections" on page 31. To reach the
max. permitted cable length, you must use cable material that matches the capacitance
requirements listed below.

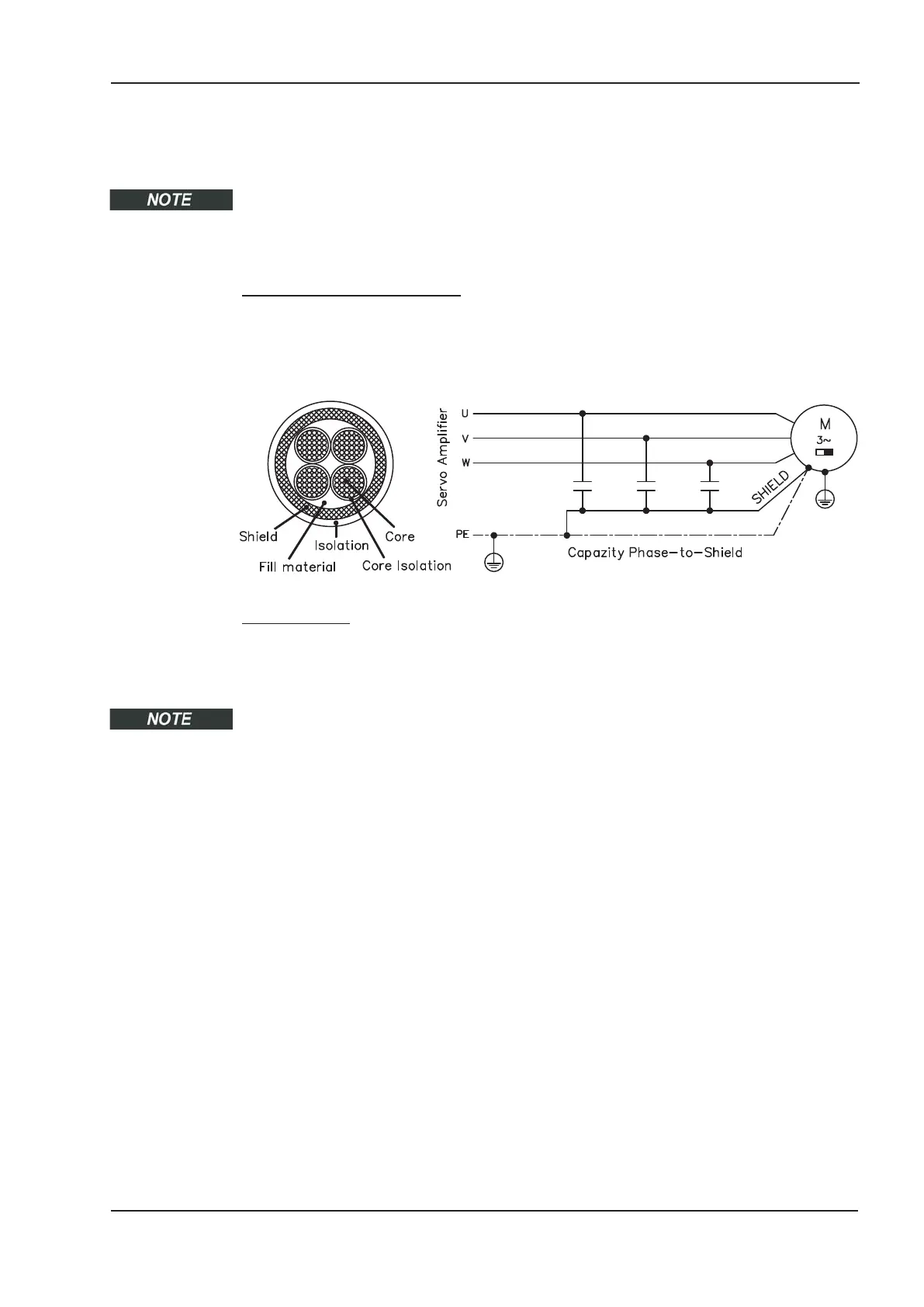

Capacitance (phase to shield)
Motor cable less than 150 pF/m
Feedback cable less than 120 pF/m
Example: Motor cable
Technical data
For a detailed description of Kollmorgen cable types and how to assemble them, please
refer to the accessories manual.
Motor cables longer than 25m require the use of a motor choke 3YL or 3YLN.
S701x2-S724x2 Instructions Manual 61
Kollmorgen 07/2014 Electrical installation
