7.12.1 Resolver (X2)

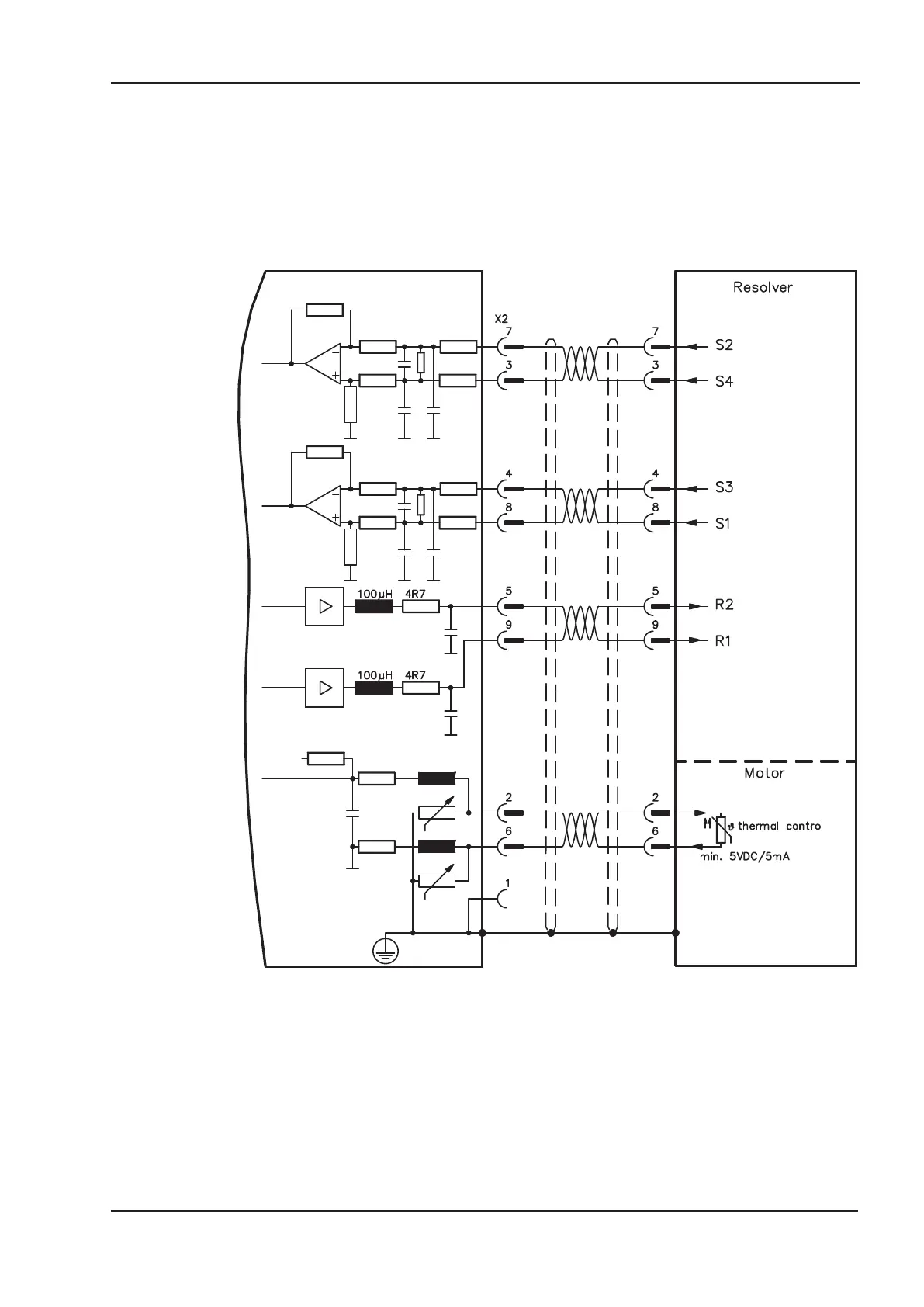

Connection of a Resolver (2 to 36-poles) as a feedback system (primary, ð p.76). The
thermal control in the motor is connected via the resolver cable to X2 and evaluated
there.
If cable lengths of more than 100m are planned, please consult our customer service.
FBTYPE: 0
The pin assignment shown on the encoder side relates to the Kollmorgen motors.
S701x2-S724x2 Instructions Manual 77
Kollmorgen 07/2014 Electrical installation
S700
SubD9
round 12-pin
