6.5 Fan assembly
The fan does not require wiring. Built-in connectors in the fan casing plug into sockets on
the underside of the S700.
Remove the fan before mounting the servo amplifier and replace it again afterwards.

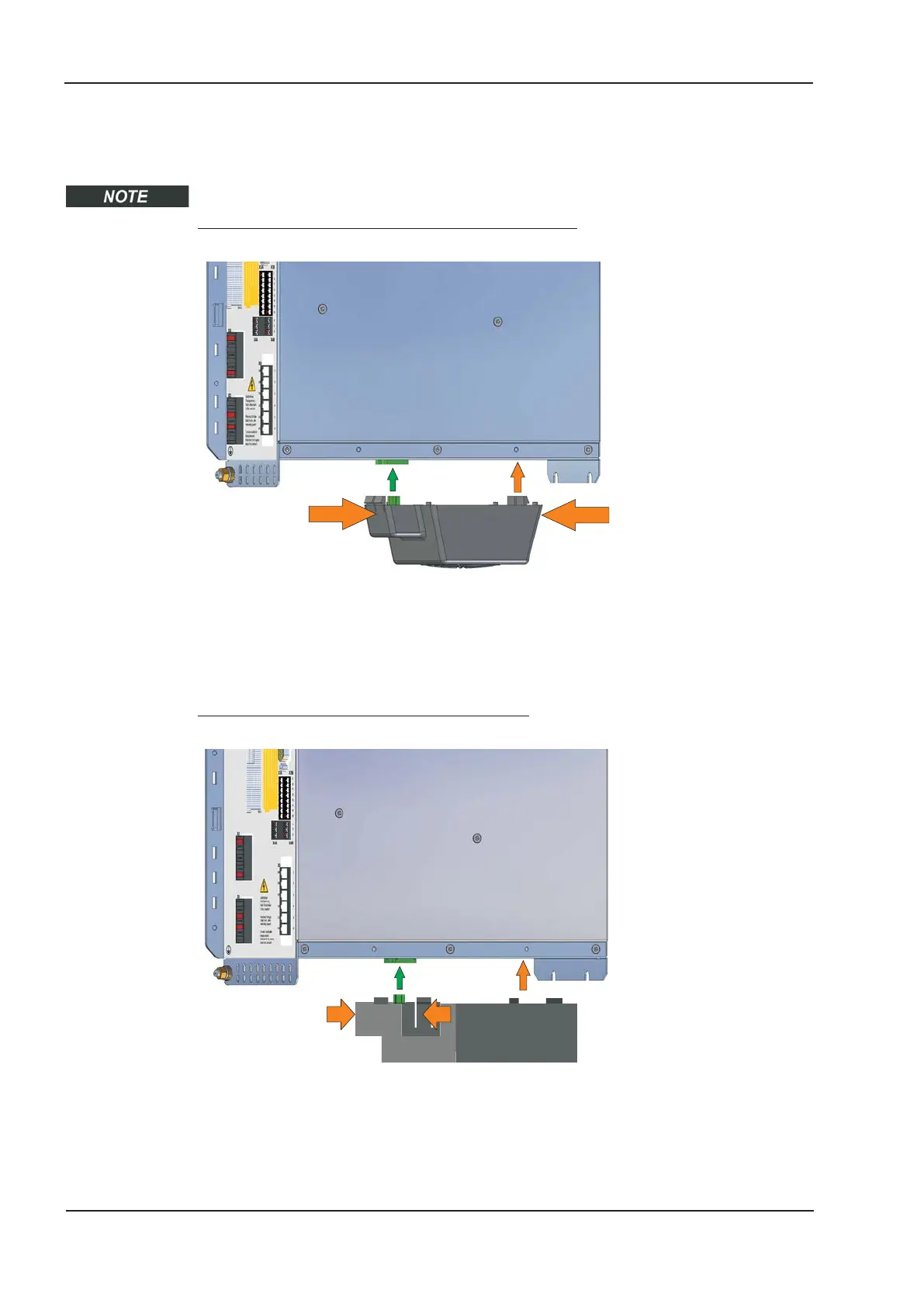

Mounting and removing the fan (models
S701...712)
Mounting and removing the fan (model S724)
56 S701x2-S724x2 Instructions Manual
Mechanical Installation 07/2014 Kollmorgen
Removal:
Gently squeeze the fan
casing together lengthwise
and pull the fan casing
down.
Mounting:
Position the fan so that the
green connector is aligned
with the socket in the S700.
Push the fan onto the con-
nector until the fan casing
clicks into place. Gently
squeeze the fan casing
together lengthwise to
check that it is fully enga-
ged.
Removal:
Gently squeeze the fan
casing together crosswise
and pull the fan casing
down.
Mounting:
Position the fan so that the
green connector is aligned
with the socket in the S700.
Push the fan onto the con-
nector until the fan casing
clicks into place. Gently
squeeze the fan casing
together crosswise to check
that it is fully engaged.
