7.12.15 SSI Encoder (X1)

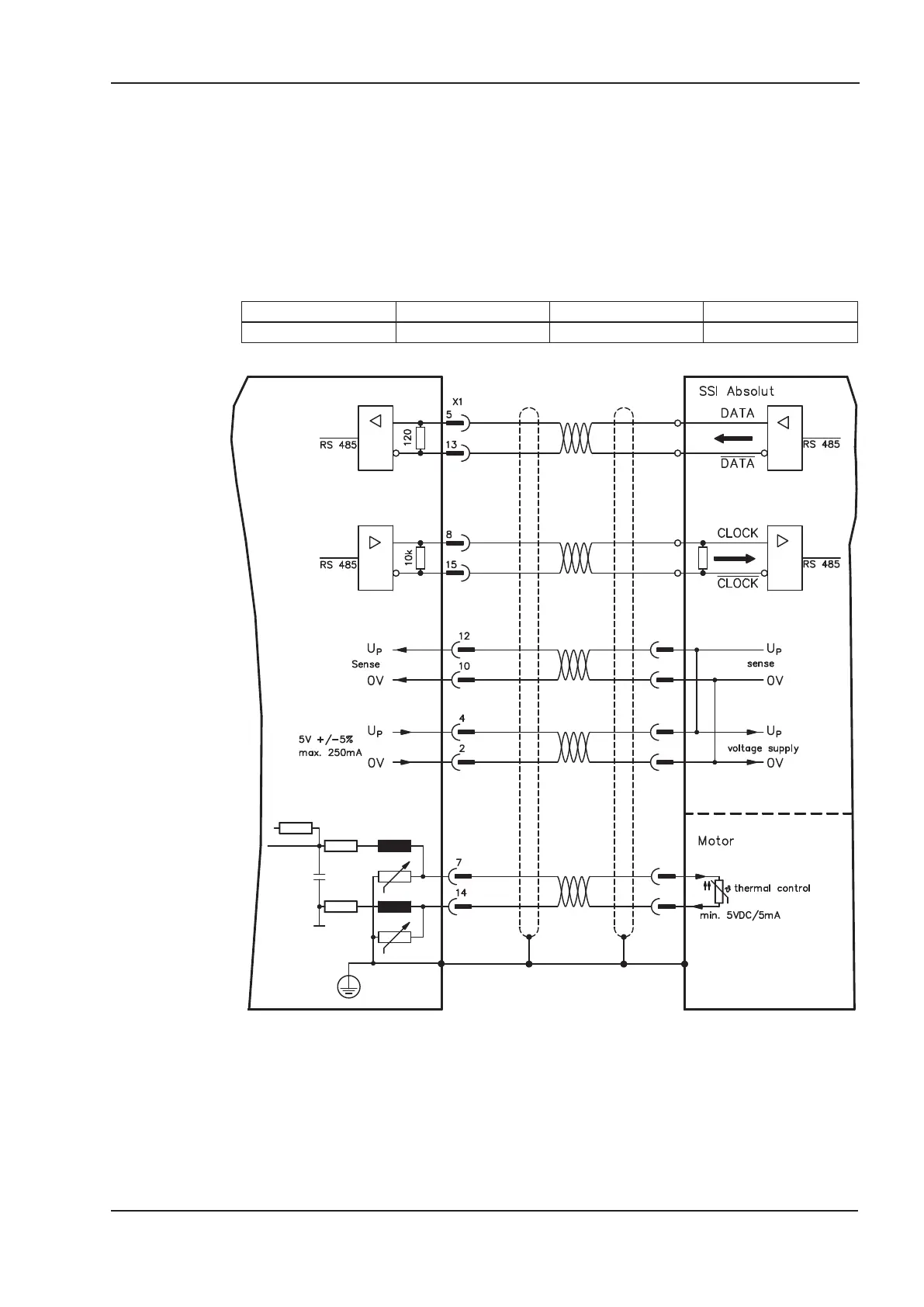

Wiring of a synchronous serial absolute-encoder as a feedback system (primary or
secondary, ð p.76). The signal sequence can be read in Gray code or in Binary (stan
-
dard) code. The thermal control in the motor is connected to X1 and evaluated there. If
cable lengths of more than 50m are planned, please consult our customer service.
Frequency limit: 1.5MHz
Resolution/turn: max. 16 Bit
Turns: max. 16 Bit
Type FBTYPE EXTPOS GEARMODE
SSI 25 25 25
Switch on supply voltage for the encoder at X1: set ENCVON to 1
S701x2-S724x2 Instructions Manual 91
Kollmorgen 07/2014 Electrical installation
