9.1.5 Expansion card - DEVICENET -
This section describes the DeviceNet expansion card for S700.
Information on the range of functions and the software protocol can be found in our
manual “DeviceNet Communication Profile”.

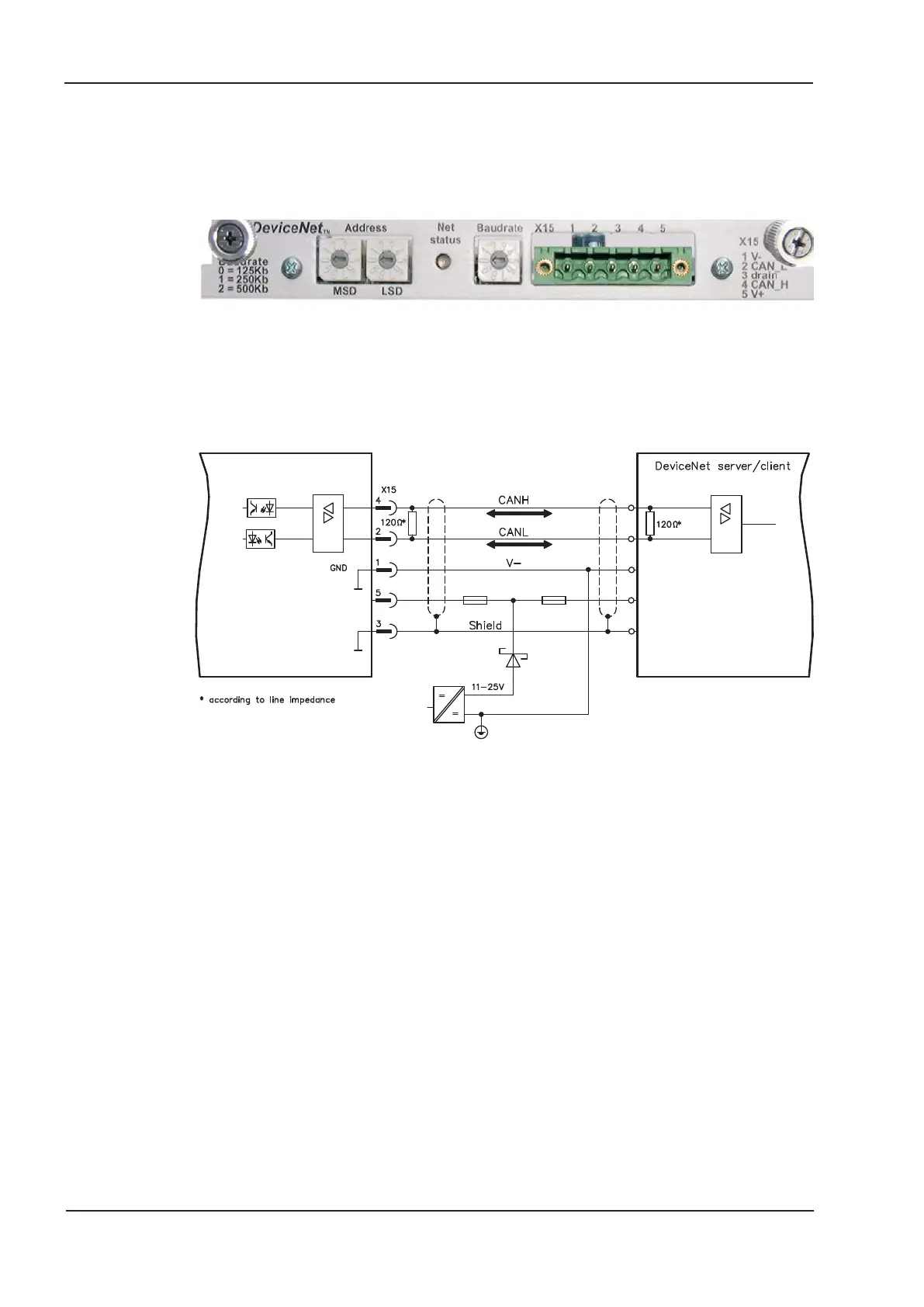

9.1.5.1 Connection technology, Connection diagram
Cable selection, cable routing, shielding, bus connector, bus termination and transmis-
sion times are all described in the “DeviceNet Specification, Volume I, II”, published by
ODVA.
132 S701x2-S724x2 Instructions Manual
Expansions 07/2014 Kollmorgen
