Konami Concerto Crescent - P;N 810327 Assy, Main Machine; P;N 310783 Assy, Display Door

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-9
3-9
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)

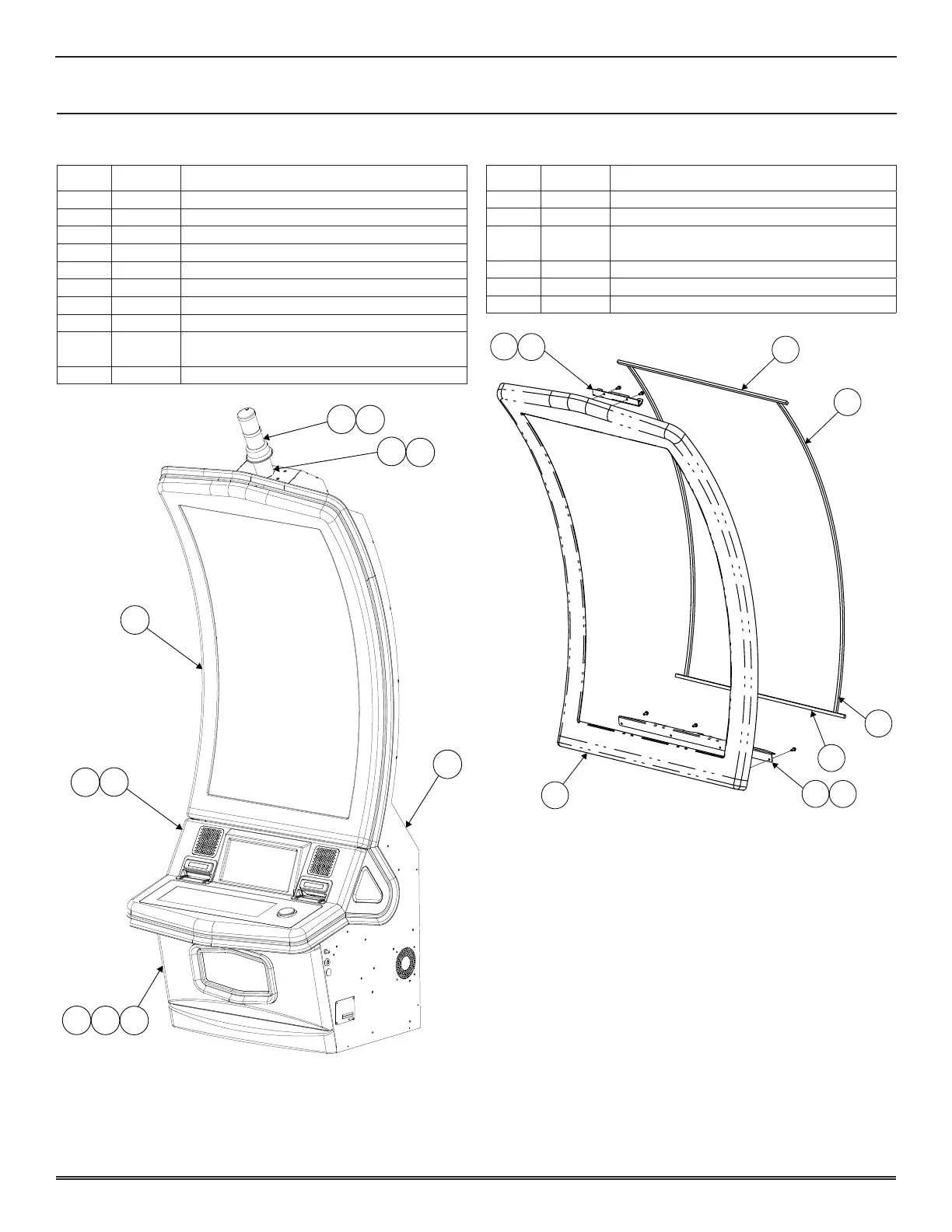

P/n 810327 assy, Main MacHine
2
7
6
6
5
3
9
8
4
10
1
ITEM PART # DESCRIPTION
1� 130937 ASSY, WLDMNT, CANDLE MNT
2� 310783 ASSY, DISPLAY DOOR
3� 331276 ASSY, DR, MAIN
4� 331278 ASSY, DECK
5� 331405 ASSY, CAB, MAIN
6� 450016 NUT, HEX KEP, 8-32 (8)
7� 450115 SCREW, SEMS, PH PHIL, 8-32 X 1/4 (2)
8� 450282 NUT, HEX, NYLOCK, 8-32 (2)
9� 450589
SCREW, TPG, HEX WSHR HD,
10-32 X �375 (4)
10� 630088 TOWER, 2 TIER
P/n 310783 assy, disPlay door
6
2
4
5
4
1
3
3
4
ITEM PART # DESCRIPTION
1� 193177 BRKT, LATCH, DOOR
2� 193214 BRKT, MTG, UPPER, DSPL DR
3� 450430
SCREW, TPG, HEX WSHR HD,
8-32 X �375 (6)
4� 470074 TAPE, FOAM, TOP & BOT, DSPL DR (4)
5� 470075 TAPE, FOAM, SIDE, DSPL DR (2)
6� 610112 DOOR, DISPLAY
