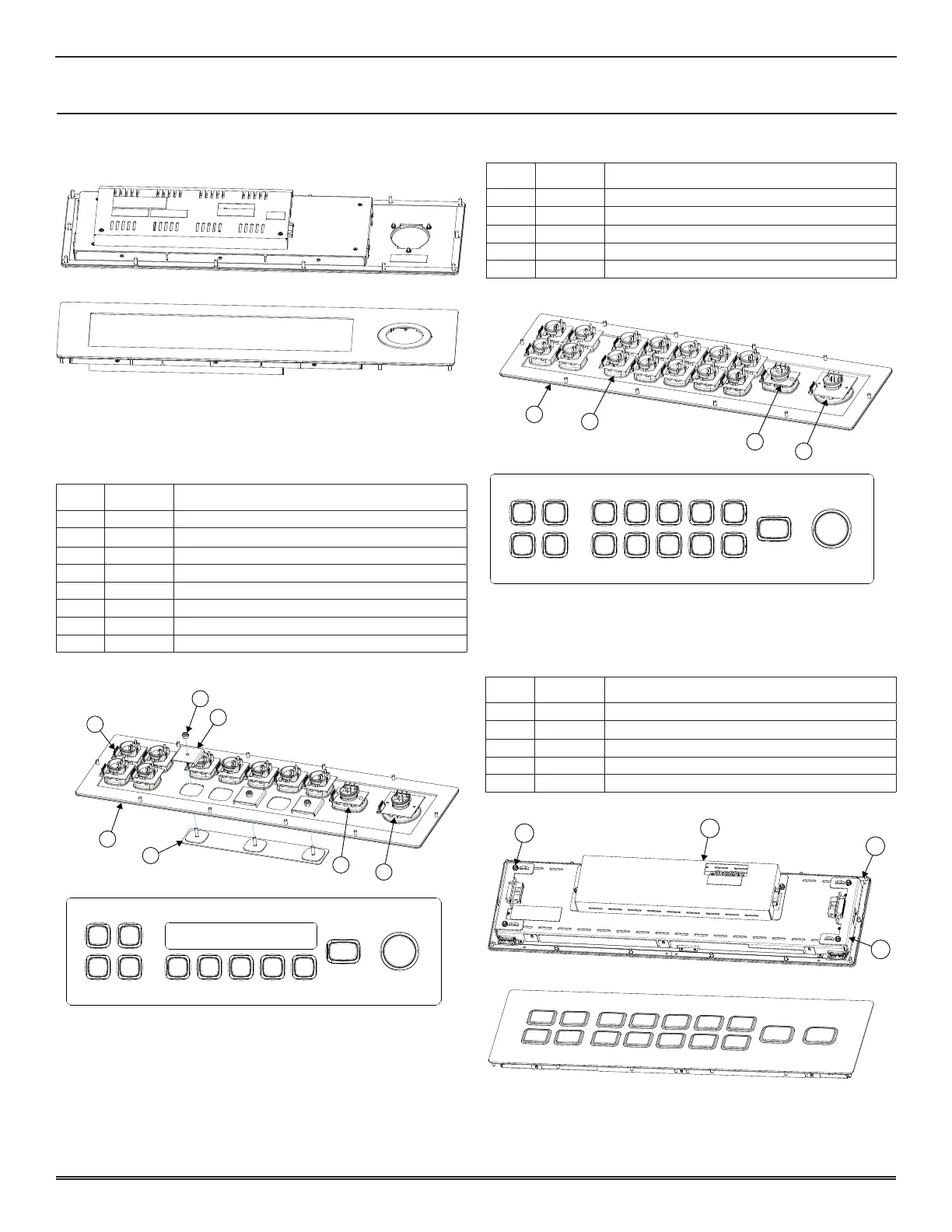

Konami Concerto Crescent - P;N 310959 Assy, Pnl, Touch Dash II; P;N 331310 Assy, Btn Pnl, 11 Btns; P;N 331283 Assy, Btn Pnl, 16 Btns

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-25
3-25
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)
P/n 331283 assy, btn Pnl, 16 btns
CHANGE
HELP
CASH
OUT
MULTI
DENOM
BET MAX
SPIN
LINE BUTTONS
BET BUTTONS
1
2
3
4
P/n 331310 assy, btn Pnl, 11 btns
CHANGE
HELP
CASH
OUT
MULTI
DENOM
BET MAX
SPIN
BET BUTTONS
1
2
6
7
5
4
3
P/n 310959 assy, Pnl, toucH dasH ii
BOTTOM VIEW
TOP VIEW
P/n 310642 assy, btn Pnl, 23”x1/3 lcd
ITEM PART # DESCRIPTION
1� 110911 HRNS, LCD BTN PNL
2� 192819 BRKT, MTG, END, LCD BTN PNL (2)
3� 310618 ASSY, 23” X 1/3 LCD
4� 310640 ASSY, LCD BUTTONS
5� 450018 NUT, HEX KEP, M4 (4)
4
2
1
3
ITEM PART # DESCRIPTION
- 110887 HRNS, BTN PNL, 16 BTN
1� 130973 ASSY BTN PNL
2� 131009 ASSY, 5 HOLE PLUG, SM SQR
3� 192856 CLAMP, BTN HOLE COVER (3)
4� 450282 NUT, HEX, NYLOK, 8-32 (3)
5� 490896 BTN, SM SQR (9)
6� 490897 BTN, RECT
7� 490917 BUTTON, ROUND
ITEM PART # DESCRIPTION
- 110887 HRNS, BTN PNL, 16 BTN
1� 130973 ASSY, BTN PNL
2� 490896 BTN, SM SQR (14)
3� 490897 BTN, RECT
4� 490917 BUTTON, ROUND
