Konami Concerto Crescent - P;N 310645 Assy, Topper, Elp

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-27
3-27
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)

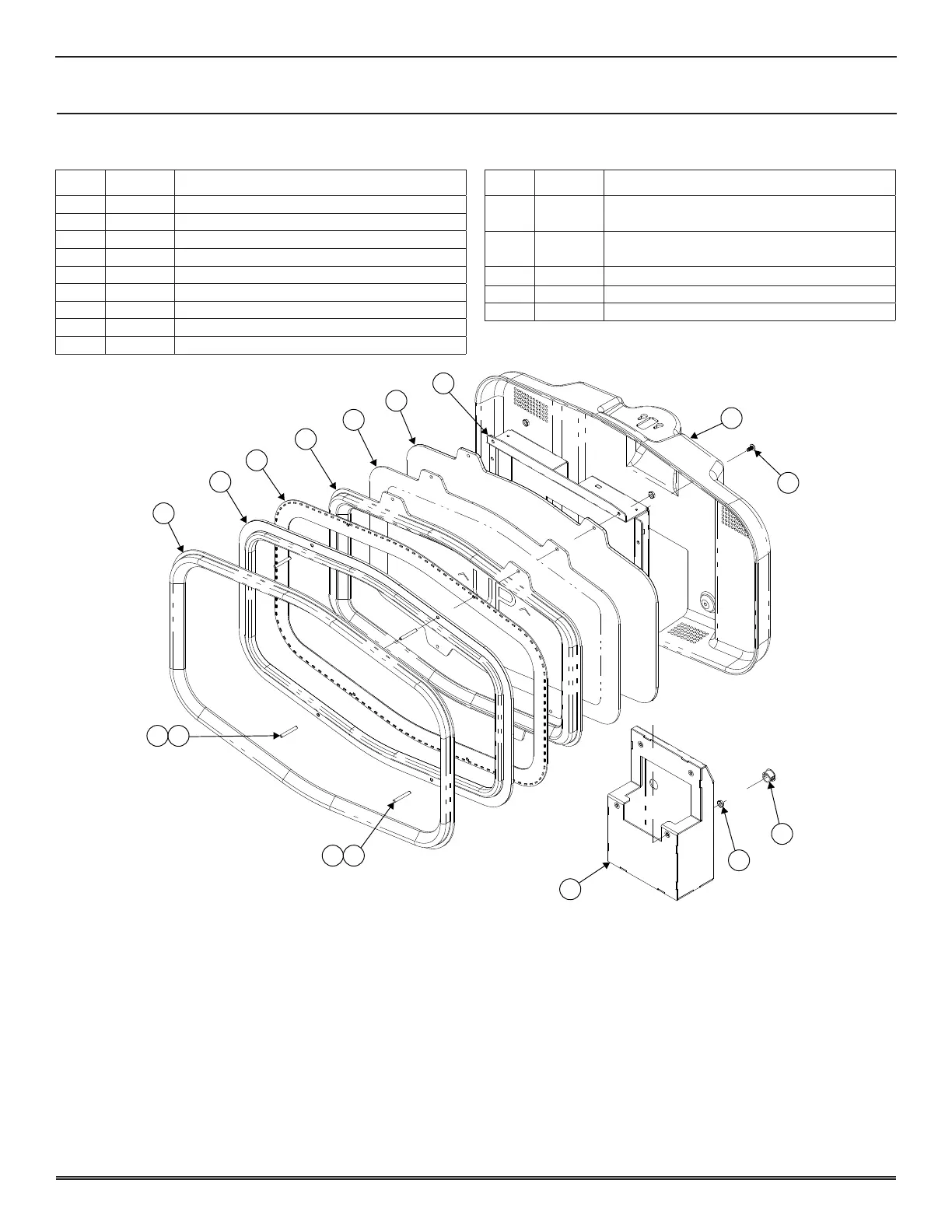

P/n 310645 assy, toPPer, elP
12
4
7
5
3
9
6
2
118
10
13
1
8
118
ITEM PART # DESCRIPTION
- 110882 HRNS, PDM2, LED, TOPPER1 (N/S)
1� 131010 ASSY, WLDMNT, TOPPER STAND
2� 192862 BRKT, SPRT, TOPPER
3� 310646 ASSY, ELP, TOPPER
4� 310647 ASSY, DIFF, TOPPER
5� 410651 PLEX, GRAPHIC, TOPPER
6� 410653 HSG, TOPPER
7� 410662 BEZEL, TOPPER
8� 450016 NUT, HEX KEP, 8-32 (8)
ITEM PART # DESCRIPTION
9� 450590
SCREW, TRUSS HD PHIL, 8-32 X �375, BLK
OXIDE (4)
10� 450597
PLUG, HOLE, �625 DIA X �016-�125 PNL THKNS,
BLK (4)
11� 450598 STUD, 8-32 X 1�25, W/ SLOT (4)
12� 530589 PCB, PODIUM2, LED, PDM2-TOPPER
13� 610097 TRIM, ELP, TOPPER
