SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-22
3-22
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)

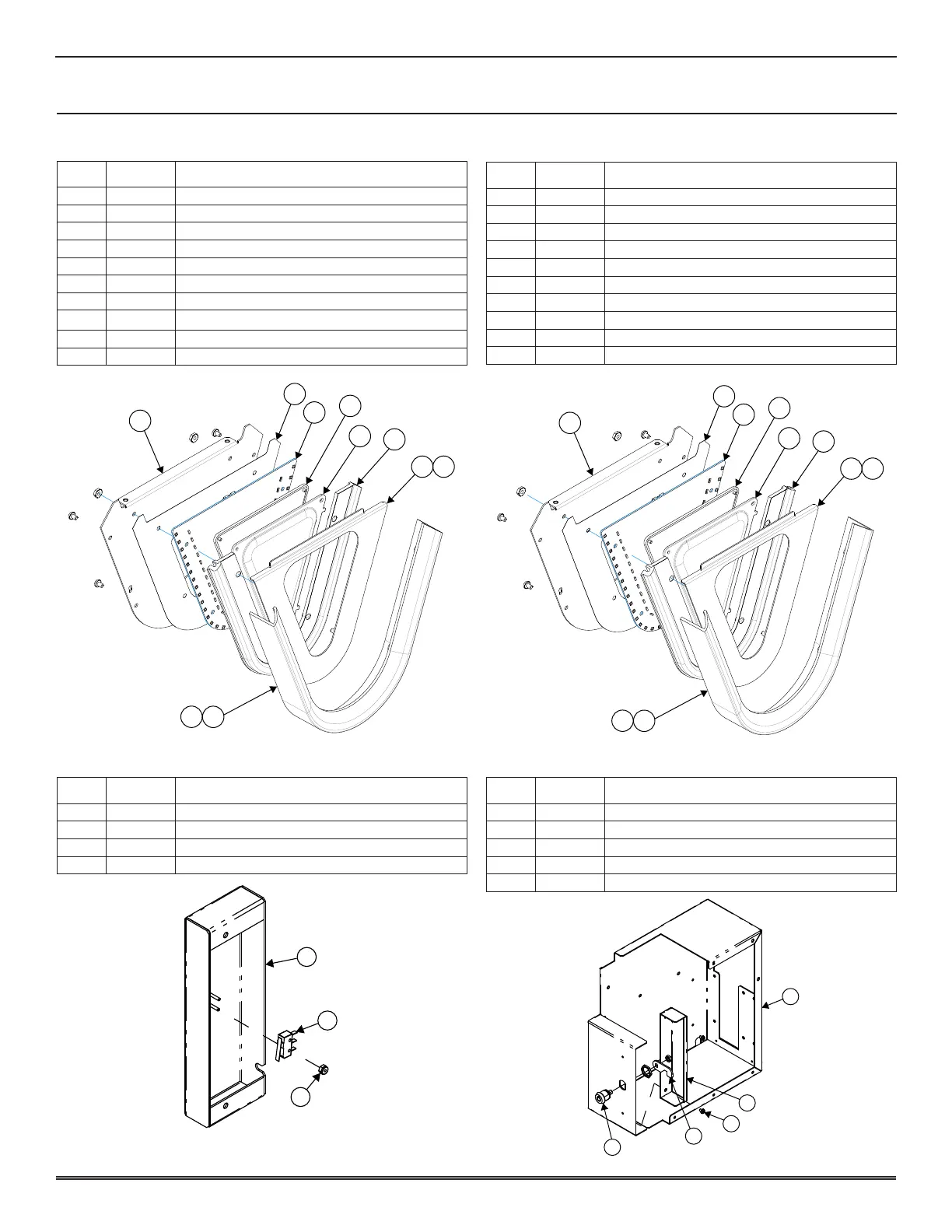

P/n 331272 assy, sW, bv dr
1
2
3
ITEM PART # DESCRIPTION
- 110054 HRNS,BILL DOOR SWITCH
1� 192689 BRKT, SW, BV DR
2� 450144 NUT, NYLOK, 2-56 (2)
3� 490050 SWITCH,OMRON,SBMIN, W/LVR ACTUATOR
P/n 331271 assy, Hsg, bv
1
5
2
3
4
ITEM PART # DESCRIPTION
1� 130964 ASSY, WLDMNT, BV HSG
2� 192688 CAM, DR, BV
3� 192699 CVR, LOCK, BV
4� 450115 SCREW, SEMS, PH PHIL, 8-32 X 1/4 (2)
5� 710000 LOCK, BARREL, �625 LONG
P/n 331268 assy, elP, rH elboW
ITEM PART # DESCRIPTION
1� 192686 TRIM, INSIDE, ELP
2� 192687 PLT, MTG, ELP
3� 310608 ASSY, DIFF, RH ELBOW
4� 410600 PNL, CVR, ELBOW
5� 410645 INSUL, PCB, ELBOW
6� 410654 PNL, STP, ELBOW
7� 450016 NUT, HEX KEP, 8-32 (4)
8� 450430 SCREW, TPG, HEX WSHR HD, 8-32 X �375 (4)
9� 530588 PCB, PODIUM2, LED, PDM2-ELBOW
10� 610084 TRIM, ELP, RH ELBOW
2
5
6
9
4
3
1
7
10
8
P/n 331269 assy, elP, lH elboW
2
5
6
9
4
3
1
7
10
8
ITEM PART # DESCRIPTION
1� 192686 TRIM, INSIDE, ELP
2� 192687 PLT, MTG, ELP
3� 310609 ASSY, DIFF, LH ELBOW
4� 410600 PNL, CVR, ELBOW
5� 410645 INSUL, PCB, ELBOW
6� 410654 PNL, STP, ELBOW
7� 450016 NUT, HEX KEP, 8-32 (4)
8� 450430 SCREW, TPG, HEX WSHR HD, 8-32 X �375 (4)
9� 530588 PCB, PODIUM2, LED, PDM2-ELBOW
10� 610085 TRIM, ELP, LH ELBOW
