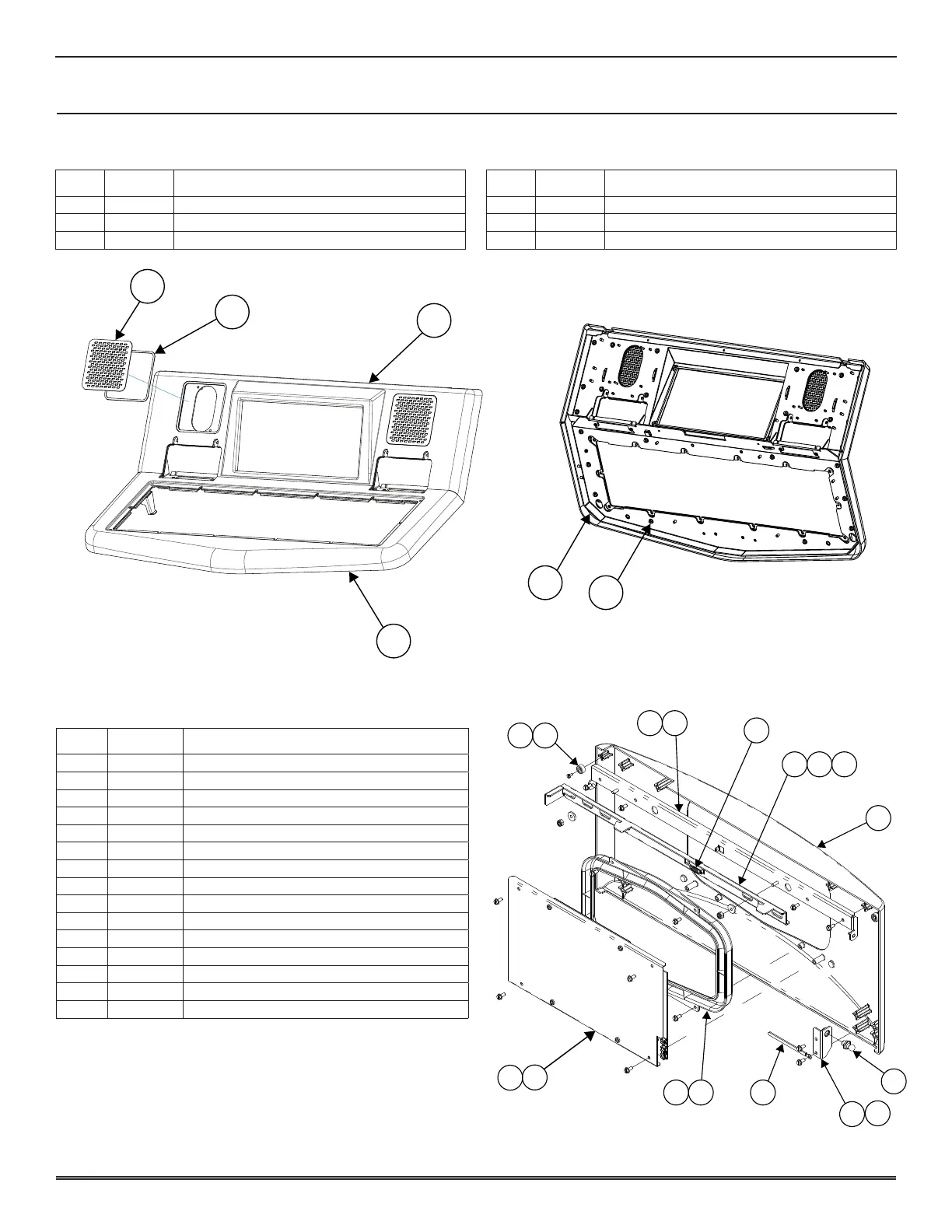

Konami Concerto Crescent - P;N 310644 Assy, Main Deck and Frame; P;N 331276 Assy, Dr, Sub

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-17
3-17
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)
P/n 331276 assy, dr, sub
9
11
7
3
2
4
8
13
6
14
1012
1
5
11
11
11
ITEM PART # DESCRIPTION
- 110868 HRNS, PDM2, LED, BELLY (N/S)
1� 192735 BRKT, DAMPER, DR SIDE
2� 192816 BAR, SLIDE, MAIN DR
3� 192817 BRKT, MTG, SLIDE BAR
4� 230000 BUSHING, SLIDE LOCK, BELLY DOOR (2)
5� 230118 BALL STUD, MODIFIED
6� 310653 ASSY, LOGO, MAIN DR
7� 450160 SPRING, EXTENSION, �25 DIA X 1 LONG
8� 450282 NUT, HEX, NYLOCK, 8-32 (2)
9� 450420 SCREW, TPG, HEX WSHR HD, 4-40 X �250 (2)
10� 450430 SCREW, TPG, HEX WSHR HD, 8-32 X �375 (14)
11� 450546 BUMPER, THRU-HOLE WITH WASHER (2)
12� 490456 CLAMP, VINYL COATED, 3 1/2, BLACK
13� 610086 DOOR, MAIN
14� 610096 TRIM, LOGO, MAIN DR
P/n 310644 assy, Main deck and FraMe
2
4
6
5
1
3
ITEM PART # DESCRIPTION
1� 130969 ASSY, FRAME, DECK
2� 192731 GRILLE, SPEAKER (2)
3� 450428 SCREW, TPG, HEX WSHR HD, 8-32 X �250 (25)
ITEM PART # DESCRIPTION
4� 470077 SEAL, GRILLE, SPEAKER (2)
5� 610090 DECK, CAST, LWR, MAIN
6� 610091 DECK, CAST, UPR, MAIN
