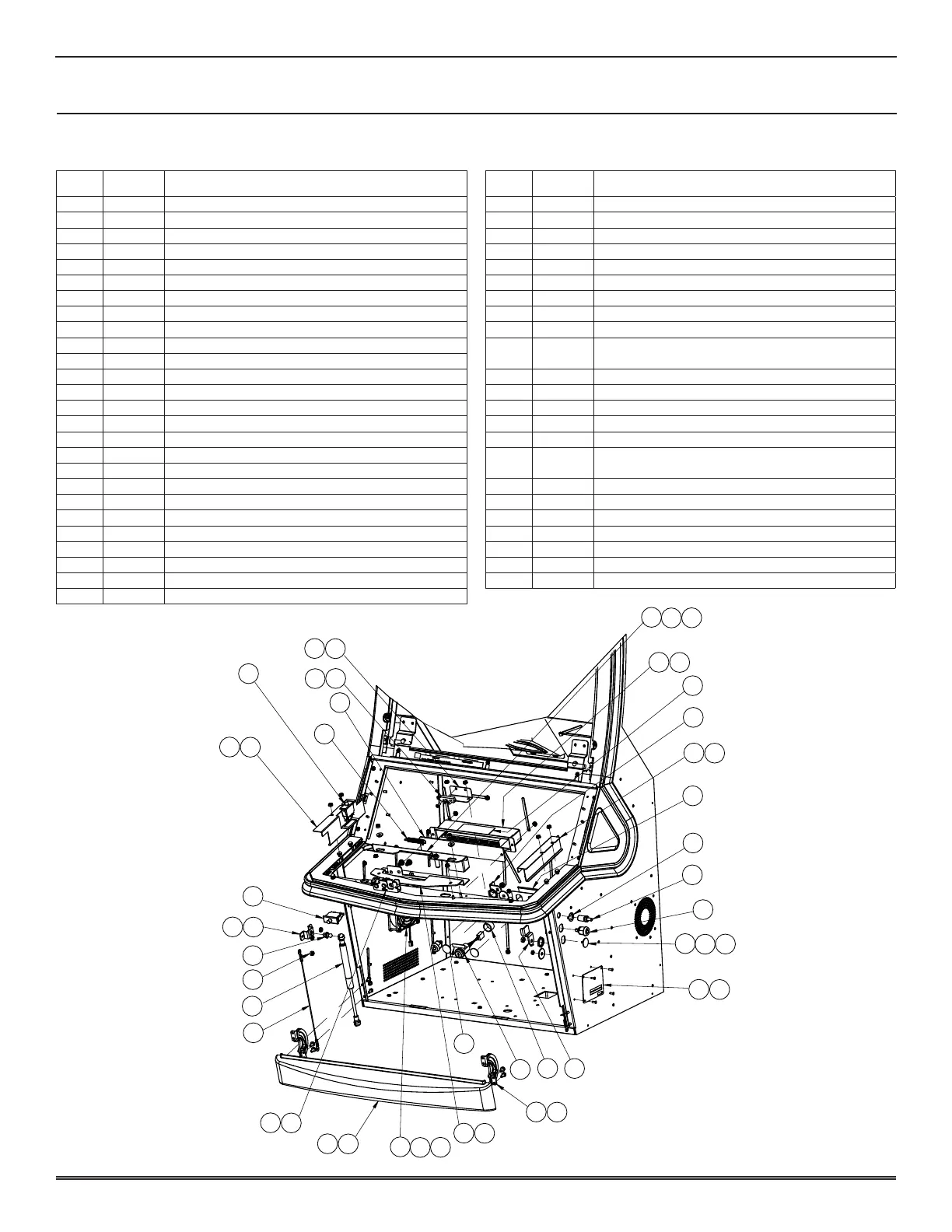

Konami Concerto Crescent - P;N 331405 ASSY, CAB, MAIN (Fig� 5 of 6)

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-14
3-14
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)
66
4
67
13
67
22
67
9
94
86
109
85
31
93
18
111
27
110
38
88
23
12
112
67
89
90
20
78
21
67
44
67
82
91
81
69
51
96
96
30
84
97
100
66
1
83
43
29
82
ITEM PART # DESCRIPTION
- 110465 HRNS, K3-URV, LED, LINK
- 110864 HRNS, PDM2, LED, B2B (3)
- 110866 HRNS, PDM2, BV
- 110867 HRNS, PDM2, PRINTER
- 110890 HRNS, PDM2, BASE
- 110895 HRNS, PDM2, LED, DECK2ELBOW
-
110896 HRNS, PDM2, DOOR SW
- 111008 HRNS, PDM2, UPPER-CRESCENT
1� 130057 PLUG, RESET KEY (3)
4� 190070 FAN, GUARD, 3�25” MOUNTING (2)
9�
192724 BRKT, MTG, DAMPER, CAB SIDE
12� 192744 CAM, LOCK, DECK
13� 192745 BRKT, MTG, OPTIC SENSOR
18� 192846 CAM, LOCK, MAIN DR
20� 192919 PLT, SERIAL, CONCERTO, US/CANADA
21� 192922 CVR, HARNESS
22� 192923 BRKT, SW, DECK
23� 192927 CVR, RESET SW
27� 193398 BRKT, LATCH, ROTARY
29� 230000 BUSHING, SLIDE LOCK, BELLY DOOR (2)
30� 230118 BALL STUD, MODIFIED
31� 310025 KEYSWITCH, ROTARY, SLIDE, ASSY
38� 310648 ASSY, PLUNGER, SPRING
43� 310830 ASSY, ACT, ROTARY LATCH
44� 330920 ASSY, METER
51� 410292 CVR, METER
P/n 331405 assy, cab, Main (Fig. 5 oF 6)
ITEM PART # DESCRIPTION
66� 450015 NUT, HEX KEP, 6-32 (11)
67� 450016 NUT, HEX KEP, 8-32 (120)
69� 450109 SCREW, SEMS, PAN HEAD PHILLIPS, 6-32 X 1/2
78� 450163 RIVET,POP,1/8”DIA X 3/8” LONG (4)
81� 450185 DOOR STAY, 10�5” (2)
82� 450282 NUT, HEX, NYLOCK, 8-32 (8)
83� 450285 WASHER, FENDER, #10 OD 1”X7/32 ID X 3/64 (3)
84� 450386 SPRING,EXT, 2�25” FL, �375 OD, �039 WD
85� 450430 SCREW, TPG, HEX WSHR HD, 8-32 X �375 (4)
86� 450467
SCREW, SEMS, PAN HD, PHILLIPS, 1/4-20 X 1/2
(2)
88� 450587 RING, RTNG, EXT, E-STYLE, 1/2 SHAFT
89� 450588 HINGE, CONCEALED, 90 DEG OPENING (2)
90� 450589 SCREW, TPG, HEX WSHR HD, 10-32 X �375 (4)
91� 450601 DAMPER, 235 LG X 76 STROKE, W/ END FTG
93� 450605 SPACER, LOCK, 1/2 LG
94� 450631
LATCH, ROTARY, TWO STAGE, LH, IN-LINE ACT,
1/4-20 THD
96� 490044 SWITCH, CHERRY,E79-30A (3)
97� 490065 SENSOR, PHOTO, ALEPH
100� 530054 FAN, LOGIC BOX, 600mm HARNESS (2)
109� 610087 CVR, BTM, MAIN DR
110� 710000 LOCK, BARREL, �625 LONG (2)
111� 830079 DECAL, RESET, AUDIT
112� 830080 DECAL, SERVICE PHONE NUMBER
